To shut down the Durablow TR1003 remote, slide the switch to the OFF position. This will turn off the system completely and disable both the remote transmitter and the receiver box. The OFF mode also acts as a safety "LOCK-OUT" to prevent unintended operation, which is recommended when the house is unattended for a long time.

This answer is automatically generated

Beverly green

February 9, 2025

We recently purchased a house with durable tr1003/1004 fireplace. Can they be turned on without using the remote?

1 comments:

Mr. Anderson

February 11, 2025

The Durablow TR1003 remote control kit is designed to replace traditional wall switches, which suggests that the fireplace could still be operated manually if a direct wired connection exists. However, the provided information does not explicitly confirm whether the fireplace can be turned on without the remote.

This answer is automatically generated

Summary of Contents for Durablow TR1003

Page 1: Table Of Contents

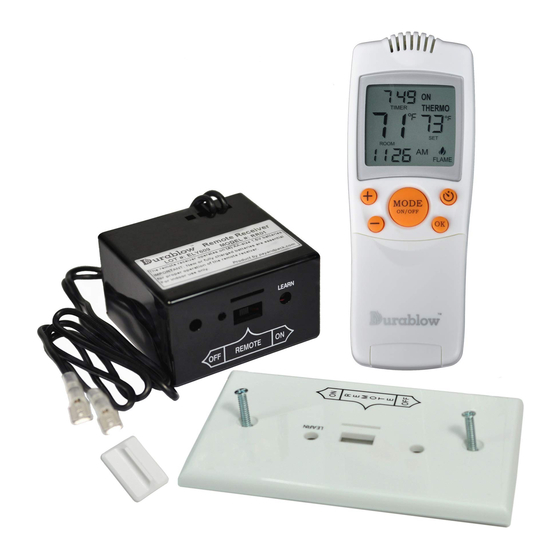

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL OR OPERATE. INTRODUCTION This Durablow remote control systemis toprovide a safeand reliableremote control systemforgas heating appliances, such as fire fireplace.The systemcan be operated thermostatically or manually from the transmitter (remote handset).The systemoperates on radio frequencies (RF) within a 20-foot range using non-directional signals.The remote receiver box...
Page 2: Packing List
FCC / ID ............PACKING LIST: Please check and make sure all parts are in good condition before installation. Any questions, please do NOT return to dealer, but email us (info@payandpack.com) immediately, we will do our best to assist you. Thank you. 1.
Page 3: Settingupthetransmitter
CAUTION: Due tothe temperature-monitoring components in the transmitter,it isimportant to allow the transmitter todetect theroom temperature before accurately displaying room temperaturesonthe screen. Normally it takes 5 to 15 minutes forevery first time placing this transmitter in a new location / environment. Tobegin the mode cycle (Fig.
Page 4: Remotereceiver Box
The default setting for temperature is ºF.To change the setting from ºFto ºC (or ºC to ºF), first press and hold the “＋”and “－” buttons on the transmitter simultaneously(Fig. 7).The highest settemperature is 99º Fahrenheit = 32º Celsius. Explanatory notes for TIMER, THERMO, Thermostat, & Modes: TIMER mode is NOT available / included in model TR1002-TH.
Page 5: Preinstallation
and follow them during installation carefully. Any modifications of Durablow remote control system, or parts, or components are PROHIBITED. They will void the  warranty, and may cause a fire hazard result in human casualties and property damages. ...
Page 6: Hearthmount
Install fourAA-size 1.5V batteries into the remote receiver box(Fig 8).The systemoperates wellwithall batteries’total output voltage is greater than 5.2V. Generally, four NEWAA-size batteries should output voltage of6.0 to6.2 volts if installed in series. Attach wall mount cover plate toreceiver box (Fig. 11). Press the receiver and haveit snap into top& bottom tabs ofcover plate.
Page 7: Learningtransmittertoreceiver
betweenreceiver wire terminal and the TH (thermostat) terminal on the ELECTRONIC MODULE. Fig. 15 LEARNINGTRANSMITTERTORECEIVER Each transmitter has a unique RF code. To have the receiver box to accept the transmitter’s signal(code), be sure the slide switch button on the receiver is in the REMOTE mode. Find the LEARN button on the front face of the receiver (Fig.
Page 8 MILLIVOLTVALVES Please DO take following tests and make sure all functions are working fine: 1. Slide the slide switch button on the receiver to the ON (Fig. 16). The main gas fire flame should ON. 2. Slide the button to OFF. The main gas fire flame should extinguish and the pilot flame will remain ON. 3.
Page 9: Additionalinformation
THERMOSAFETYPROTECTION FORRECEIVER In order to protect the receiver box, batteries, and receiver’s microprocessors, the Durablow remote control system equips a THERMISTOR, a safety feature in receiver box. The THERMISTOR will automatically shut the system and appliance down,& begin makingBEEP X 3 (♫, ♫, ♫), every 4 seconds, when the temperature inside the receiver boxis higher than 130°F (54°C).
Page 10 This Durablow remote control system have a OUT-OF-RANGE SAFETY ALERT function whichalerts when the transmitter is out of the normal 20-foot operating range of the receiver for all operation modes. The transmitter sends an RF signal every fifteen minutes to the receiver box to indicate that the transmitter is within the normal operating range of 20-foot.
Page 11 SETTING THE SWING 1. To change the temperature SWING setting, press theTIMER and “－” buttons(Fig. 18) at the same timeto display the current SWING setting (Fig. 17). The letter “S” (looks like Arabic number “5”) means you are currently in the SWING setting, 2.
Page 12: Trouble Shooting
TROUBLE SHOOTING Problems with different fireplace systems are NOT just caused by Durablow remote control, but also by fireplace itself. Please firstly review and check fireplace manufacturer’s manual to see if all wires are properly connected, valve is working fine, or gas tank / pipes are in good condition. Then please check the operations below: 1.
Page 13 Consult the dealer or an experienced radio/TV technician for help. 　 FCC ID: 2AKOB-TR1003 CUSTOMER SUPPORT: Any questions, please contact and email us before returning items or leaving a feedback / review. We will always be here for you. Reach us on eBay, Amazon, www.payandpack.com...
