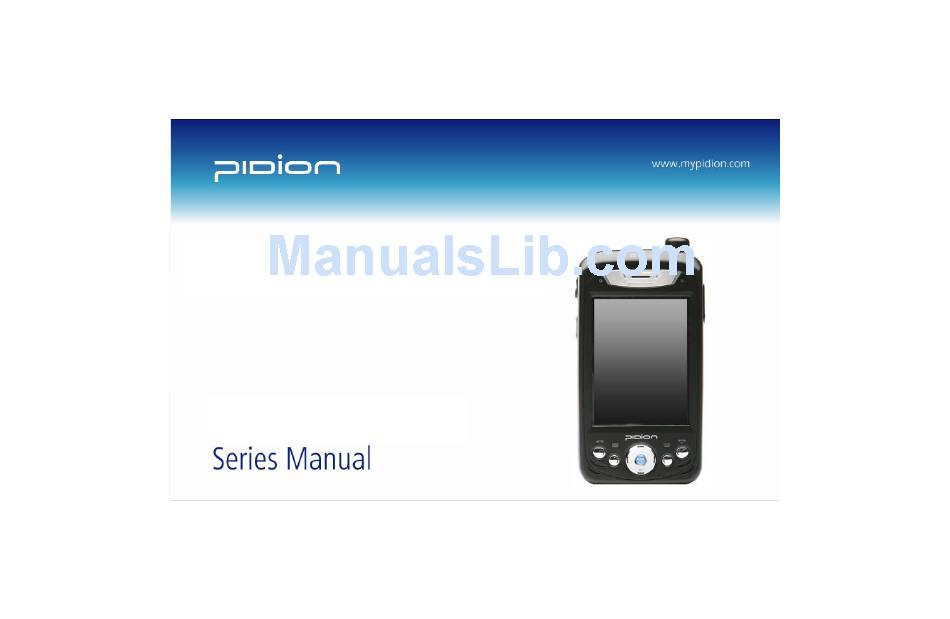

Pidion BM-150R Series Manual

Hide thumbs Also See for BM-150R Series:
Table of Contents

Advertisement

Quick Links

• Please read the following warnings before using the product.
• Shapes and colors of the images shown in this manual may differ from the actual products.
• Contents of the manuals may differ based on the software version of products
or conditions of the wireless provider.
BM-150R
1

Advertisement

Table of Contents
loading

Related Manuals for Pidion BM-150R Series

Summary of Contents for Pidion BM-150R Series

  • Page 1 • Please read the following warnings before using the product. • Shapes and colors of the images shown in this manual may differ from the actual products. • Contents of the manuals may differ based on the software version of products or conditions of the wireless provider.
  • Page 2 Registered Trademark PIDION is a Leading Brand in the mobile industry. Bluebird Soft Inc. is a trusted global company which represents high technology and is currently registered worldwide with its PIDION trademark legally protected by law.
  • Page 3 Knowing the product FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S.
  • Page 4 Declaration of Conformity I hereby declare that the product. MANUFACTURER or AUTHORISED REPRESENTATIVE : − Address: Model BM-150R Bluebird Soft., Inc. 558-5, Sinsa-dong, Kangnam-gu, Seoul, Korea Type Satisfies all the technical regulations applicable to the This declaration is issued under the sole responsibility of the product within the scope of Council manufacturer and, if applicable, his authorized representative.

  • Page 5: Table Of Contents

    Table of Contents I. Getting Started V. Camera 1. Activating Your Phone ………… 4 Using the Camera ………… 19 2. Synchronize with ActiveSync ………… 5 VI. DMB II. Understanding Your Phone 1. Opening & Closing ………… 20 1. Features of Your Phone 2.

  • Page 6: Getting Started

    I.Getting Started 1. Activating Your Phone [Remove the Battery] [Remove the SIM Card] 1. Push down using both thumbs to remove battery cover. To remove the SIM card, lightly slide it away from slot. 2. Raise the battery by using the groove on the lower part to remove the battery.

  • Page 7: Synchronize With Activesync

    I.Getting Started 2. Synchronize with ActiveSync 1. Installing Microsoft ActiveSync on Your PC Install the Microsoft ActiveSync from the supplied Getting Started CD. You can also download the latest version of ActiveSync from the Microsoft website. 2. Connecting the PDA to Your PC After installation connect the PDA to the PC according to the following instructions: ①...

  • Page 8: Understanding Your Phone

    II. Understanding Your Phone Division Specification Intel PXA270 520MHz 1. Features of Your Phone Windows Mobile 5.0 Memory RAM: 64MB, ROM: 512MB Division Specification Select from the following. Display 3.5” QVGA 240x320 Touch Screen Quad Band (850/900/1800/1900 MHz) 3.5” VGA 480x640 Touch Screen GPRS Multislot Class 12, Class B Select from the following.

  • Page 9: What's In The Box

    [Adaptor] [Main Body] Thank you for purchasing a PIDION Product. Please make sure all the above components are included. The pictures and photos in this manual may slightly differ due to model compositions. (When purchasing extra accessories please go to your nearest dealer.)

  • Page 10: Closed View Of Your Phone

    II. Understanding Your Phone 3. Closed View of Your Phone Receiver Camera Battery Charge LED Radio Function Power Headset ON/OFF Jack Speaker Camera Volume Key Hold /Unhold IrDA PORT 4-Way Navigation MiniSD Card Slot Send Right Soft Left Soft Microphone Battery Cover 24pin Charging Terminal (Lower Section)

  • Page 11: Install/Remove The Battery

    II. Understanding Your Phone 4. Install/Remove the Battery 5. MiniSD Memory Card [Install the Battery] 1. Put the battery in line with the left part of the PDA and then push the right part to lock. Make sure that the gold plate terminal of the memory card is pointed 2.

  • Page 12: Battery & Led Status

    II. Understanding Your Phone 6. Battery & LED status [ Hours for Charging & Use ] [ Safety Notice for Using the Battery ] Charge on a connection • Approximately 4 hours Batteries are expendable products and with regular use over time from the USB they will lose there ability to fully charge.

  • Page 13: Learning The Basics

    III. Learning the Basics 2. Resetting Your Phone 1. Powering On/Off the Phone <Soft Reset> Exemplary Situations When memory conversion is not processed The power button is located on the right side of the smoothly due to long hours of program use, product.

  • Page 14: Starting Your Pda

    III. Learning the Basics 3. Starting your PDA 4. Using the Stylus The provided Stylus pen may be used to directly process a program and input information on the touch screen. Pressing This means using the Stylus pen by pressing it one time to open, close, or cancel something.

  • Page 15: Entering Text

    III. Learning the Basics 5. Entering Text [ Block Recognizer ] [ Selecting Text Input Mode ] [ Built-in Numeric Keypad ] There are five different character Using Keypad, you can type letters, This input method uses the traditional input methods available. punctuation, numbers, and other writing area box split in the middle.
  • Page 16 III. Learning the Basics 5. Entering Text [ Keyboard ] [ Letter Recognizer ] [ Transcriber ] This input method displays This option allows you to enter text The transcriber option is similar to an on-screen keyboard that can be using your own handwriting.

  • Page 17: Turning The Phone

    IV. Using the Phone 1. Turning the Phone Functions On/Off [ Using the Key ] [ Using Wireless Manager] Touch this part or select [Wireless Manager] from [Start]→[Settings]→[Connections] tabs End Key If the end key is pushed for more Touch this part to turn On/Off. than 3 seconds, the Phone Functions will turn On/Off.

  • Page 18: Phone Program

    IV. Using the Phone 2. Phone Program [ Key ] Method of Operation ① Press Send Key on the PDA. ① ④ ② ② Press Left Soft Key ③ Touch [Phone] on the lower part of the ‘Today’ screen. [ ‘Today’ screen ] [‘Phone’...

  • Page 19: Calling And Receiving

    IV. Using the Phone 3. Calling and Receiving Calling 1. Call the number by using the PDA keypad input screen, and then press Send Key. 2. Push the [Talk] button by using the keypad on the screen. Receiving 1. Press Send Key on the PDA. 2.

  • Page 20: Contacts

    IV. Using the Phone 4. Contacts Using Contacts ① Contacts may be searched by inputting the name/number or by touching the tab button. ② Contacts Menu - New Contact : Register new contact - Copy/Delete Contact : The chosen contact will be copied/deleted. - View By : Contacts will be indicated according to name/company.

  • Page 21: Camera

    V. Camera Using the Camera ⑦ ① ① ⑤ ② ③ ④ ⑤ ⑥ ④ ② ③ Press either the Camera Key on the right side of the product, Press the viewer button on the upper right hand or launch [Start]→[Programs]→[Camera] corner of the screen.

  • Page 22: Dmb

    VI. DMB 1. Opening & Closing You can watch and listen to terrestrial DMB and radio. How to open [Start]→[Program]→[PidionDMB] How to close 1. Closing the program is identical to the process for other programs. (Press the “X” button at the upper right corner of the program window.) 2.

  • Page 23: Screen Configuration

    VI. DMB 2. Screen Configuration [ Vertical Mode ] [ Horizontal Mode ] Upper Display Area DMB Status Display Control Menu Display If executing other programs while running the DMB program, normal program operation is not guaranteed. Avoid DMB viewing while performing activities such as driving or walking, as doing so can be dangerous. Applying excessive force to the antenna can result in its damage.

  • Page 24: Operation Guide

    VI. DMB When opening the DMB program, the message “The player is being closed due to initialization failure. Check the player installation file again and retry.“ may appear. In such cases, the DMB program can be used normally once again, after removing any unnecessary programs that may have been installed in the screen on the same day.

  • Page 25: Capture Screen

    VI. DMB 4. Capture Screen Division Description Capture Type Press the capture icon. Folder to save Within the My Documents folder. File Attributes File Name: Date and time of capture File Extension: JPEG Capture Size: 320 x 240 If executing other programs while running the DMB program, normal program operation is not guaranteed. Avoid DMB viewing while performing activities such as driving or walking, as doing so can be dangerous.

  • Page 26: Setting

    VI. DMB 5. Setting Screen Name Description Full Screen Set orientation to left hand or right Mode hand in full screen mode. DMB TV/Radio Perform an automatic search of the current region for TV/radio channels Channel that can be added. Search Lists divided by TV and radio channels DMB TV/Radio...

  • Page 27: Changing Your Settings

    VII. Changing Your Settings 1. Personal Tab [ Menus ] [ Buttons ] This is used for setting up the start menu of the title bar. [Start]→[Settings]→[Personal]→[Buttons] Method of changing the shortcut key Defining Buttons mode: allocation program: Choose the button Front navigation key provides [Start]→[Settings]→[Personal]→[Menus] favorite buttons for quick access or...
  • Page 28 VII. Changing Your Settings 1. Personal Tab [ Today ] You may choose the skin Choose the categories that and the surrounding screen appear on the [today]screen. according to your taste. [Start]→[Setting] [Start]→[Settings] →[Personal]→[Today] →[Personal]→[Today] The skin file (*.TSK) will appear on the background It will appear on the ‘Today’...

  • Page 29: System Tab

    VII. Changing Your Settings 2. System Tab [ Memory ] [Start]→[Settings] This indicates the present condition This indicates the current →[System]→[Memory] of the Program Store (Used operating program lists, so This shows the current status of Capacity, Remaining Capacity), you may choose to stop all or the memory (the memory used and the Mini SD memory card part of the programs.
  • Page 30 VII. Changing Your Settings 2. System Tab [ Remove Programs ] [ Screen ] This indicates the list of programs installed personally or by a group. [Start]→[Settings] →[System]→[Remove Programs] [Start]→[Settings]→[System]→[Screen] Choose the program that needs to be deleted The screen may be converted to portrait or landscape (right- from the list and press [Remove] for an handed, left-handed).
  • Page 31 VII. Changing Your Settings 2. System Tab [FM Transmitter ] Screen Name Description When power is on: ON Power On/Off When power is off: OFF 88.3 / 98.9 / 106.5 MHz Recommended Select from 3 recommended frequency frequencies. (Select “NOT USE” if none of the 3 recommended Selection frequencies are to be used.)

  • Page 32: Connections Tab

    VII. Changing Your Settings 3. Connections Tab [ Bluetooth ] Bluetooth Setup Method 1. On touching the [Add new Setup for the communication device…], it will scan the of Bluetooth equipment. surrounding Bluetooth device. 2. Select the device to connect [Start]→[Settings] and press [Next].
  • Page 33 VII. Changing Your Settings 3. Connections Tab [ Wi-Fi ] Set Up Method for Wireless LAN Set Up Wireless LAN 1. If you turn on Wi-Fi from Wireless Manager, through Wi-Fi. it will search the AP within the vicinity and show it on the screen. 2.
  • Page 34 VII. Changing Your Settings 3. Connections Tab [ Wireless Manager ] [ USB-PC Connect ] You may set up the sync environment with the PC. [Start]→[Settings] →[Connections]→[USB to PC] [Start]→[Settings]→[Connections]→[Wireless Manager] If you decide to uncheck [Enable advanced network By touching [All], you may start 3 functions at the same time. functionality], the PC will not synchronize.

  • Page 35: Information

    VIII. Information Please abide by these instructions as they will ensure safe and proper use of the product. 1. Safety Information 1. Safety Instructions for Recharging Batteries • If the main body of the product or the battery has been submerged under water, do not attempt to dry it by heater or microwave. •...

  • Page 36: Troubleshooting

    VIII. Information 2. Troubleshooting Q : What should I do if the PDA gets wet? A : First, remove the battery from the PDA and lay it out to dry. If it does not operate properly after being dried, then the main board or other components may need to be exchanged. Please visit your nearest customer service center. Q : The PDA Power does not come on.

  • Page 37: Customer Service

    VIII. Information For any enquires of problems or inconveniences while using the product please call +82-2-1588-1380. 3. Customer Service [Bluebird Soft Customer Service] [Before Requesting After-Sales Service] • Phone : +82-2-1588-1380 • Please backup all the data in your PDA before requesting •...

  • Page 38: Service Center Information

    VIII. Information 4. Service Center Information [ Regulations on Free/Charging Repairs] Contents of Compensation Type of Customer Damage Within the Term After term of guarantee of Guarantee Exchange or When requesting important repairs within 10 days of purchase Repayment Exchange or Requesting important repairs within 1 month since purchase date Repair Free of Charge...
  • Page 39 VIII. Information 4. Service Center Information Charged Service 1. If it is not a default, it will be charged when requesting for after-sales service. - Service request due to inappropriate use of the customer - Loss of a PIN number - Use of programs that might effect the program (over-clock, forceful changes in the input of the system, personal developments) 2.

  • Page 40: Certification Of Quality

    Certificate of Guarantee Name of Name of Model BM-150R Product Date of Manufacture Purchase Number Place of Term of 1 year from purchase Purchase Guarantee Thank you for purchasing a product from Bluebird Soft Inc. If a circumstance arises where you lose a receipt or the certificate of guarantee, then the term of guarantee will be calculated 3 months (certified by the number of the manufacture, a certificate of inspection) after the date of manufacture.

  • Page 41: Authenticity Of Facts

    Authenticated Facts Name of Authenticator : Bluebird Soft Inc. Name of Product : Wireless product for the wireless data communication system Name of Model : BM-150R Date of Production : 2007. . Manufacturer/Country : Bluebird Soft Inc./ Republic of Korea Authenticator Identification : BBS...
