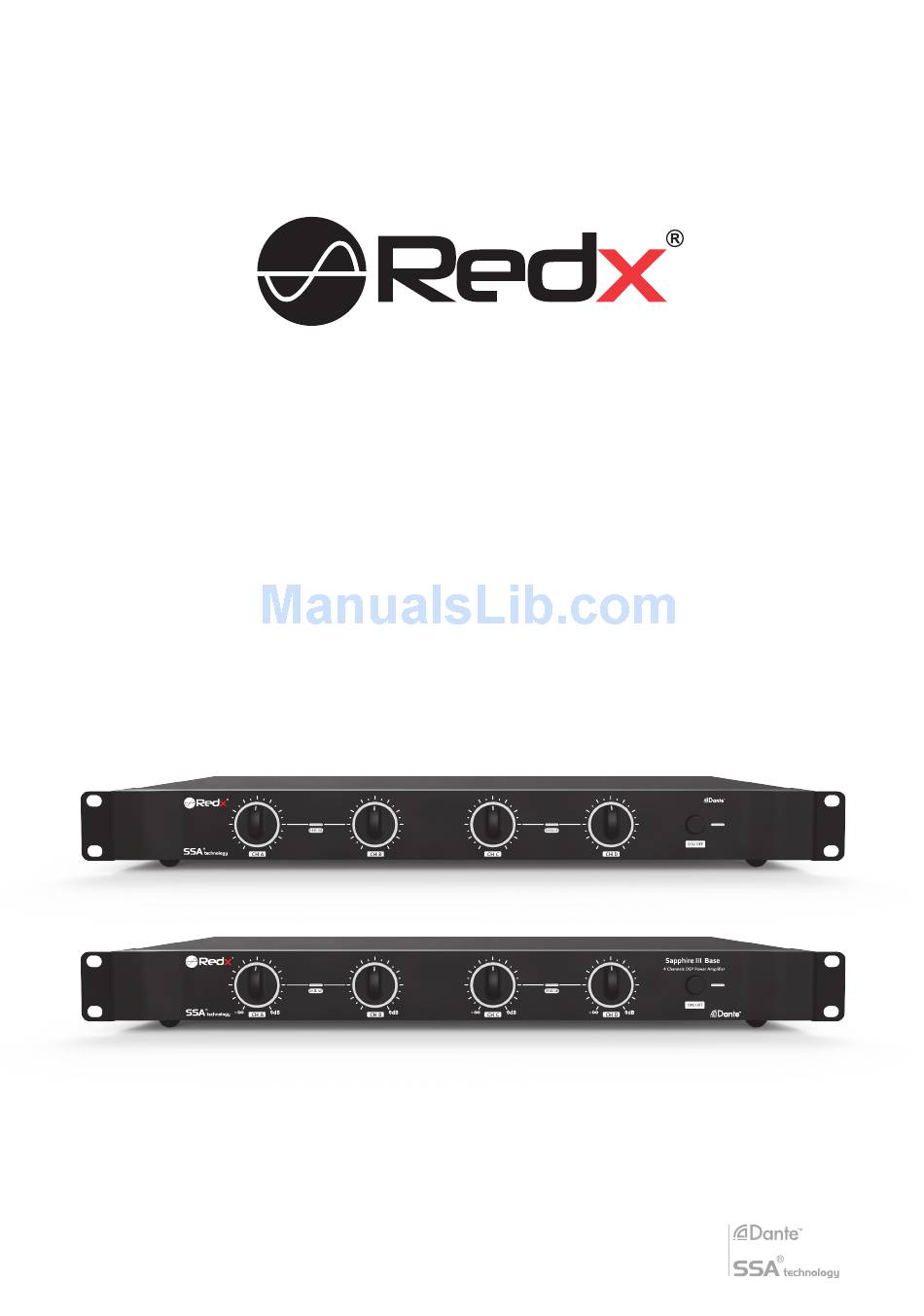

- Page 1 Sapphire III Sapphire III Base 4-Channel Network Audio Power Amplifier Owner’s Manual Sapphire III Sapphire III 4 Channels DSP Power Amplifier -∞ -∞ -∞ -∞ Sapphire III Base -∞...
-
Page 2: Table Of Contents
Table Of Contents Important Safety Instructions Welcome Sapphire III (Base) amplifier features Sapphire III Base Digital Signal Processor (DSP) Dante™ Network Front Panel Rear Panel Installations Getting Started Connections Sapphire III Base User Interface Introductions Setting Up System Block Diagrams... -
Page 3: Important Safety Instructions
6. Clean only with a dry cloth. Nettoyer uniquement avec un chiffon sec. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Ne pas bloquer les ouvertures de ventilation. Installer conformément aux instructions du fabricant. Sapphire III（Base）Power Amplifier... - Page 4 17. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection. Borne de terre de protection. L’appareil doit être connecté à une prise secteur avec une prise de terre. Sapphire III（Base）Power Amplifier...
- Page 5 Technical specifications and appearances are subject to change without notice and accuracy is not guaranteed. Trademarks are the property of their respective owners. Redx International accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon descriptions, photos or statements contained herein.
-
Page 6: Welcome
• True bidirectional energy flow which allows inductance load energy return to primary power supply. • ZVS, ZCS soft switching — to maximize the system efficiency. • Over 90% ultra-high system efficiency during DC-AC power conversion. Sapphire III (Base) amplifier features: • 4-channel networked audio power amplifier. • SSA globally innovative patented technology. -
Page 7: Sapphire Iii Base Digital Signal Processor (Dsp)
In Bridge Mode, Sapphire III Base is used as a two-channel power amplifier which doubles the power output. Bridge Mode can be switched from a hardware switch located at the rear panel of the power amplifier. Sapphire III Base will follow the switch settings when starting up. -
Page 8: Dante™ Network
Please note: The analog audio input of Sapphire III (Base) can also be used as a signal source on Dante™ Network, and can be routed to another Sapphire III (Base) or Dante™ devices. Thus, the analog input of Sapphire III (Base) can be used as a signal source of Dante™... -
Page 9: Front Panel
4 Channels DSP Power Amplifier -∞ -∞ -∞ -∞ Sapphire III Base -∞ Rack Ears: Secure the unit into a rack with four screws. Signal & Limit LED: LED lights in blue indicates input signal is received. Reduce the input gain is the red LIMIT LED flashing. The red LIMIT LED constantly light indicates an overloaded input gain, overheating protection, overload protection or speaker failure. -
Page 10: Rear Panel
Rear Panel Sapphire III Sapphire III Base Power switch: Use this power switch to turn the unit on or off. Power Cord Socket: Here is where you connect the detachable power cord included with your amplifier. Plug the other end of the power cord into an AC outlet properly configured with the voltage required for your particular model. -
Page 11: Installations
Installations Unpacking Sapphire III (Base) has completed all the QC tests before leaving factory. Please open the packing carefully and check if there is any damage caused during transportation process. If any, please contact the carrier immediately. We strongly recommend you to keep the packing materials in case of potential transportation. In order to avoid damages, please do not use other alterative packing materials to transport the apparatus. -
Page 12: Getting Started
3. Connect speakers with the output end of the power amplifier. 4. Connect the power amplifier to a PC or network switch with Cat-5 shielded twisted pair. The Sapphire III (Base) User Interface on the PC can control the amplifier remotely. For further information, please refer to (Sapphire III (Base) User Interface introductions). -
Page 13: Connections
Make sure that the power amplifier is powered off before making any input or output connections. Please use high quality audio cables which can minimize loss of signal integrity. Analog input connection Sapphire III (Base) uses XLR, 1/4" TRS to balance analog input. The polarity and connection of XLR, 1/4" TRS is shown below: XLR-M Pinout 1/4"... - Page 14 The pin diagram is shown below: Pin Position RJ45 T568B Pin Connections Color code (TIA/EIA-568-B) BROWN BROWN / WHITE GREEN BLUE / WHITE BLUE GREEN / WHITE ORANGE ORANGE / WHITE 1 2 3 4 5 6 7 8 Sapphire III（Base）Power Amplifier...
-
Page 15: Sapphire Iii Base User Interface Introductions
Sapphire III Base User Interface Introductions The following interface has been designed for the Sapphire III Base amplifier. This is only a brief introduction of the software that related to connections of the power amplifier. For further information, please refer to introduction of the software. - Page 16 Sapphire III Base User Interface Introductions 3. Master Gain and Channel Gain Master Gain: The Master Gain bar controls the gain of 4 channels simultaneously. The control panel of Master Gain is shown on the right: Gain can be controlled by sliding the button or by inputting a value in the gray box in a range of -80 ~ 0 dB.
- Page 17 Sapphire III Base User Interface Introductions 5. 5 BAND EQ The control panel of 5 BAND EQ is shown on the right: The G value can be modified by dragging the gray dots in the coordinate within a range of -15 ~15dB. G, F and Q value can be modified by inputting a value in the gray boxes.
-
Page 18: Setting Up System
This chapter is about the configuration of a set of power amplifiers using the Dante™ network. Not only independent connections can be set up, but also multiple power amplifiers can be connected as “Daisy Chain”. Sapphire III (Base) connects to the network hardware devices using Cat-5 cable. Sapphire III (Base) implements 4-in, 4-out audio signals, Digital Signal Processing and other configuration. - Page 19 Setting Up System Input/output conversion of audio signals Sapphire III (Base) power amplifier can implement the input/output conversion of analog/digital audio signal. Analog audio input to analog audio output conversion： Ethernet Data Stream (Bidirectional) Analog Audio Input (Mixer Console or Other Audio source)
- Page 20 Setting up a multi power amplifiers system using “Daisy Chain” : An amplifier system which contains multi Sapphire III (Base) power amplifiers can be configured as the figure shown below. Analog signals are sourced from a mixer or other audio source through the XLR inputs, while digital signals are input from a PC/Network switch through Ethernet port (ETH1/ETH2).
-
Page 21: Block Diagrams
Block Diagrams Sapphire III（Base）Power Amplifier... -
Page 22: Specifications
Over Temperature, On/Off Protection Functions Over-Current, Over-Temperature, Over Load Cooling Natural convection Cooling Safety and EMC compliance CE, CB, ETL, C-tick, FCC Dimensions 482.5mm x 44.5mm x 301mm (19˝ x 1.75˝ x 11.85˝) Weight 4.9Kg (10.8 Lbs) Sapphire III（Base）Power Amplifier... -
Page 23: Dimensions
442 mm / 17.4 in 482.5 mm / 19 in 44.5 mm / 1.75 in Sapphire III Sapphire III 4 Channels DSP Power Amplifier -∞ -∞ -∞ -∞ 44.5 mm / 1.75 in Sapphire III Base -∞ Sapphire III（Base）Power Amplifier... -
Page 24: Faqs
There is high voltage electrified inside the enclosure regardless of the power enclosure supply status. If the enclosure needs to be removed due to technical issues, please contact professional personnel. Installation space Stack installation requires a vertical space larger than 10mm between amps. Sapphire III（Base）Power Amplifier... -
Page 25: Notes
