ORDER NO. ITD1202004CE

Touch Panel

TY-TP65P30K
Model No.
© Panasonic Corporation 2012
Unauthorized copying and distribution is a violation
of law.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TY-TP65P30K

Summary of Contents for Panasonic TY-TP65P30K

  • Page 1: Touch Panel

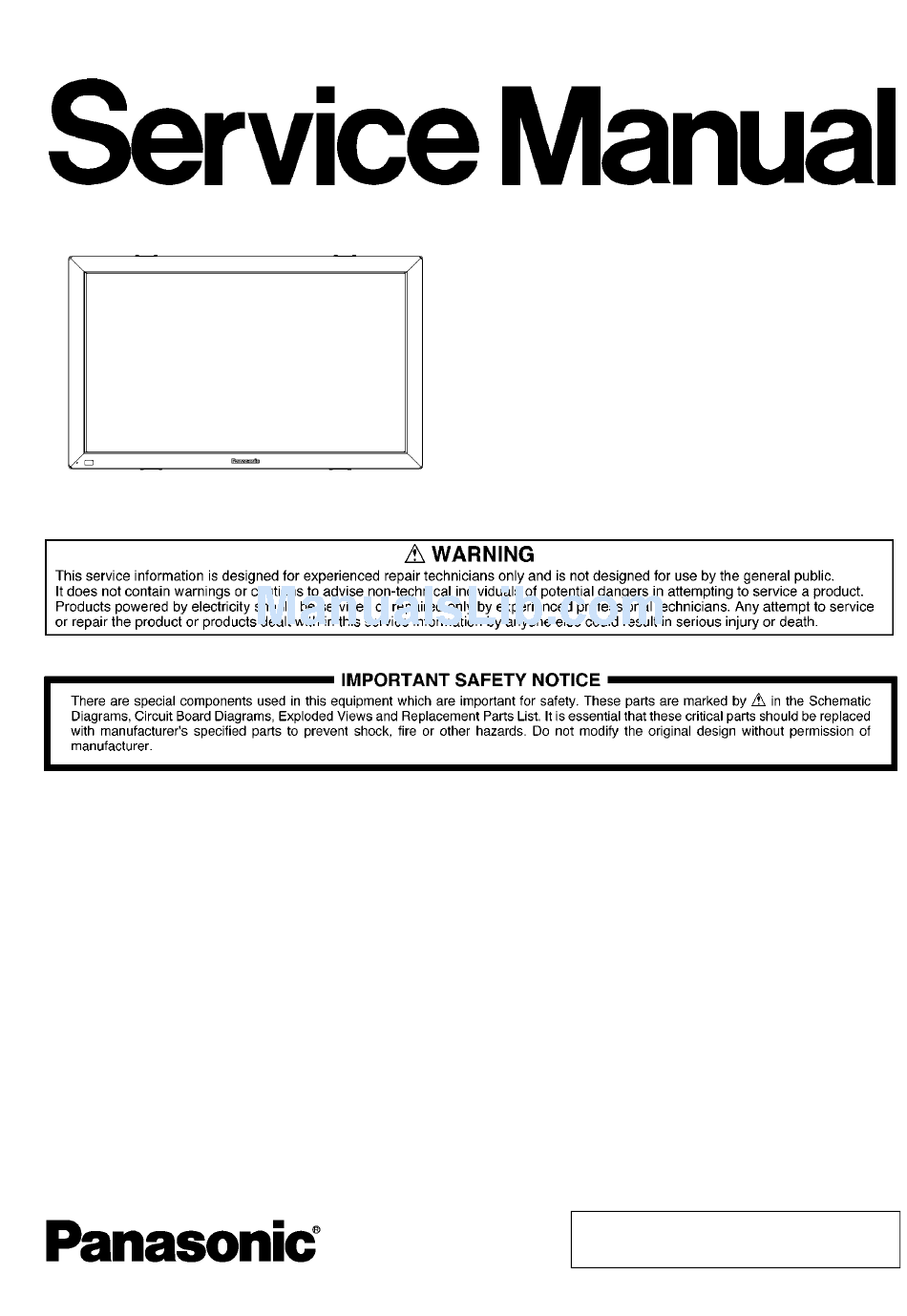

    ORDER NO. ITD1202004CE Touch Panel TY-TP65P30K Model No. © Panasonic Corporation 2012 Unauthorized copying and distribution is a violation of law.
