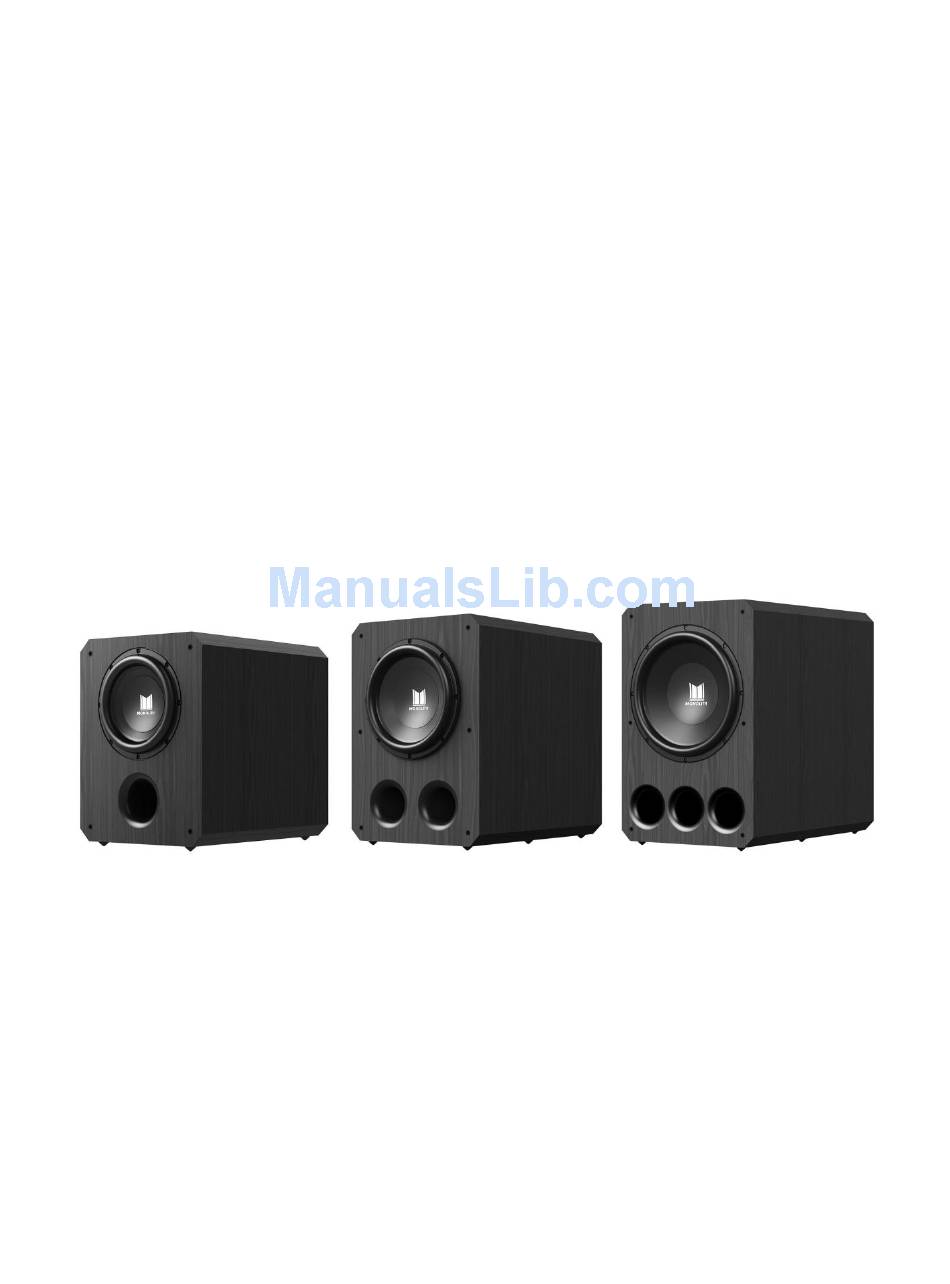

- Page 1 MONOPRICE Monolith THX Subwoofer P/Ns 24456, 24457, 24458 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................5 PRODUCT OVERVIEW ....................................5 SETUP GUIDE ........................................7 Subwoofer Placement ..................................8 Connecting to a Balanced XLR Output ..........................8 Connecting to a Subwoofer/LFE Output ........................... 9 Connecting to a Stereo Preamp Output ........................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 5: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Monolith subwoofer 1x AC power cable... - Page 6 LEVEL: This control allows you to adjust the output level of the subwoofer to match the main speakers in your system. We recommend starting with the LEVEL knob set to the THX position and then calibrate your system with your AV receiver, surround preamp/processor, or SPL meter.
-
Page 7: Setup Guide
LFE & LINE UNBALANCED INPUTS: Use either of these RCA inputs to connect the LFE output on your amplifier or receiver. If your amplifier/receiver does not have an LFE output, connect the stereo preamplifier output on your amplifier/receiver to both the 1 and 2 inputs. -
Page 8: Subwoofer Placement
Subwoofer Placement In most rooms, the optimum location for your subwoofer is in the closest solid front corner or somewhere along the front wall in line with your front speakers. This location typically offers optimal energy coupling with the room, front-speakers, and the deepest low frequency extension, with the best high impact bass. -
Page 9: Connecting To A Subwoofer/Lfe Output
3. (Optional) Using another XLR cable, plug one end into the XLR BALANCED INPUT on another Monolith subwoofer, then plug the other end into the XLR DIRECT PASS- THRU jack on the subwoofer. 4. Plug one end of the included AC power cable into the FUSE/120 VAC connector on the subwoofer, then plug the other end into a nearby AC power outlet. -
Page 10: Connecting To A Stereo Preamp Output
Warning! Due to the power requirements of the Monolith subwoofer, do not connect to the accessory outlets on a receiver or processor. If using a power strip, ensure that it has rated to accommodate the subwoofer's power requirements. 5. Plug in and power on all connected equipment. 6. -
Page 11: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 12: Specifications
SPECIFICATIONS Model 24456 Woofer 10" cone Cone Material 2 layer long fiber pulp/glass fiber cone 60mm with high temperature aluminum wire and black Voice Coil anodized aluminum bobbin Surround FEA optimized NBR (nitrile budadiene rubber) FEA optimized, 2 aluminum shorting rings, undercut T-pole... - Page 13 Auto Turn Off 30 minutes Dimensions (H x W x D) 18.9" x 15" x 19.7" (480 x 380 x 500 mm) Weight 72.5 lbs. (32.9 kg) Model 24457 Woofer 12" cone Cone Material 2 layer long fiber pulp/glass fiber cone 60mm with high temperature aluminum wire and black Voice Coil anodized aluminum bobbin...
- Page 14 Crossover Inline/Bypass variable 40-160Hz Inputs RCA (2), XLR Outputs Signal Turn On Selectable always on/auto Auto Turn Off 30 minutes Dimensions (H x W x D) 22.8" x 16.7" x 23.6" (580 x 425 x 600 mm) Net Weight 98.5 lbs. (44.7 kg) Model 24458 Woofer...
- Page 15 Frequency Response (-6dB) Sealed Vented (2 ports) Vented (3 ports) Extended EQ 15-200Hz 14-200Hz 16-200Hz THX EQ 23-200Hz 19-200Hz 20-200Hz Harmonic Distortion <1% 20-100Hz (90dB @ 1m) Variable Level Control +15/-20dB Crossover Inline/Bypass variable 40-160Hz Inputs RCA (2), XLR Outputs Signal Turn On Selectable always on/auto Auto Turn Off...
