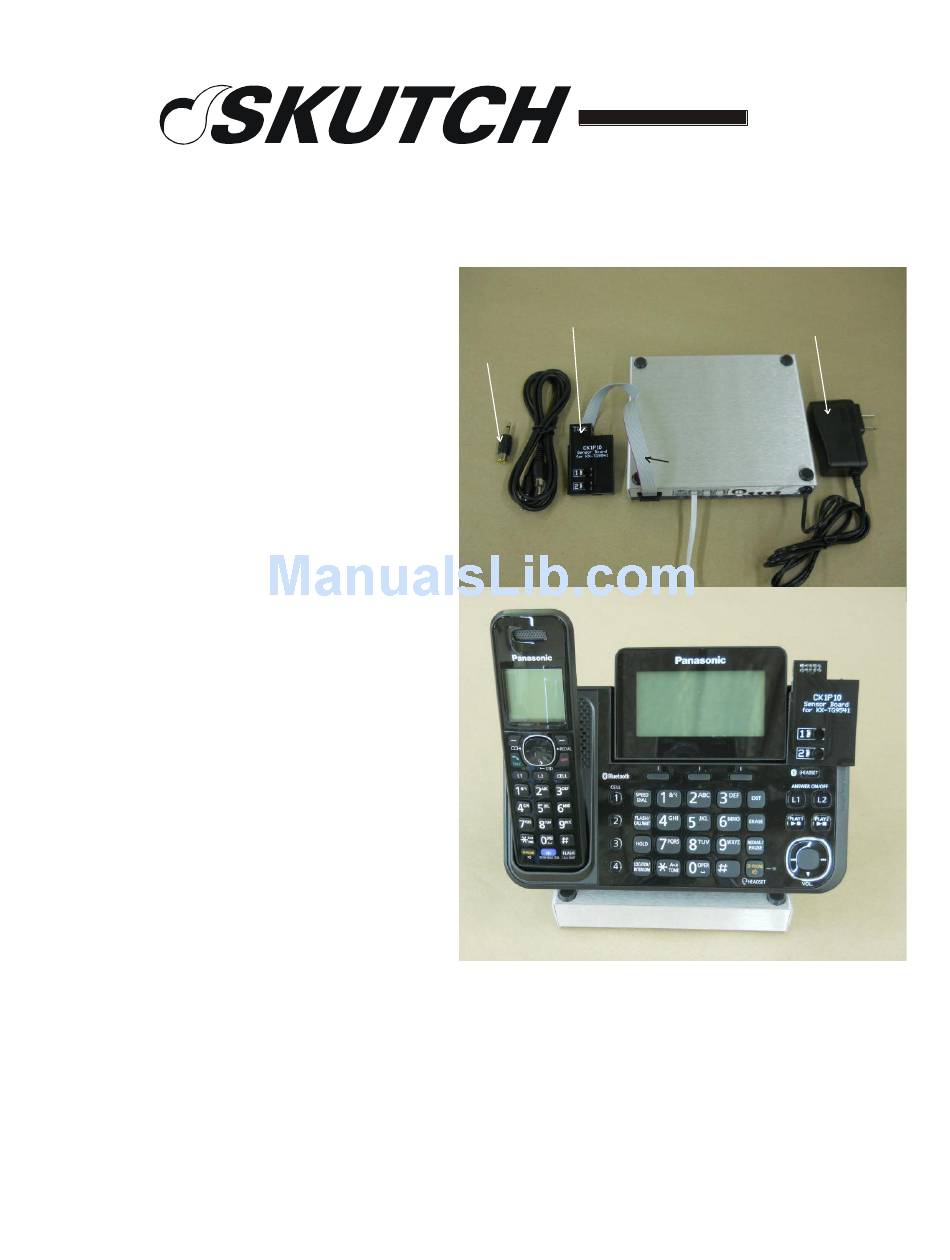

CK-1P10
For the Panasonic KX-TG9541B
telephone
Box
Flat Cable
03/22/16
Introduction
Audio Cord
Thank you for purchasing the Skutch
CK-1P10 Promotion-On-Hold Module
for the Panasonic KX-TG9541B two
line expanded phone system. This unit
ONLY works with one specific KX-
TG9541B BASE phone, and on all of
the cordless units, KX-TGA950 units,
that are registered to that specific BASE
unit. It will NOT supply promotion-on-
hold to Cell Phone calls that are Linked
to this phone. This phone allows you to
register a maximum of 6 handsets to the
BASE phone. The CK-1P10 is a true
plug and play device. This unit requires
an external sound source such as a
Digital MP3 Player to provide the
Promotion-On-Hold audio. When a call
CK-1P10 installed on KX-TG9541B
is placed ON HOLD, from the base or
any of the phone's cordless units, the ON HOLD caller will hear the Promotion-On-Hold
audio. When the line is re-answered, the audio automatically stops. It's that simple!
Installation
The SENSOR Board MUST be attached to the BASE phone or this unit will not function.
The Sensor board MUST completely cover the LINE 1 and LINE 2 buttons on the phone.
1- Make sure that the surface on the telephone is clean and free of dust and/or oil.
