Bastl Instruments KASTLE v1.3 Assembly Manual

Mini modular synthesize
Hide thumbs

Advertisement

Quick Links

Download this manual
last​ ​ u pdate:​ ​ 4 .​ ​ 9 .​ ​ 2 017

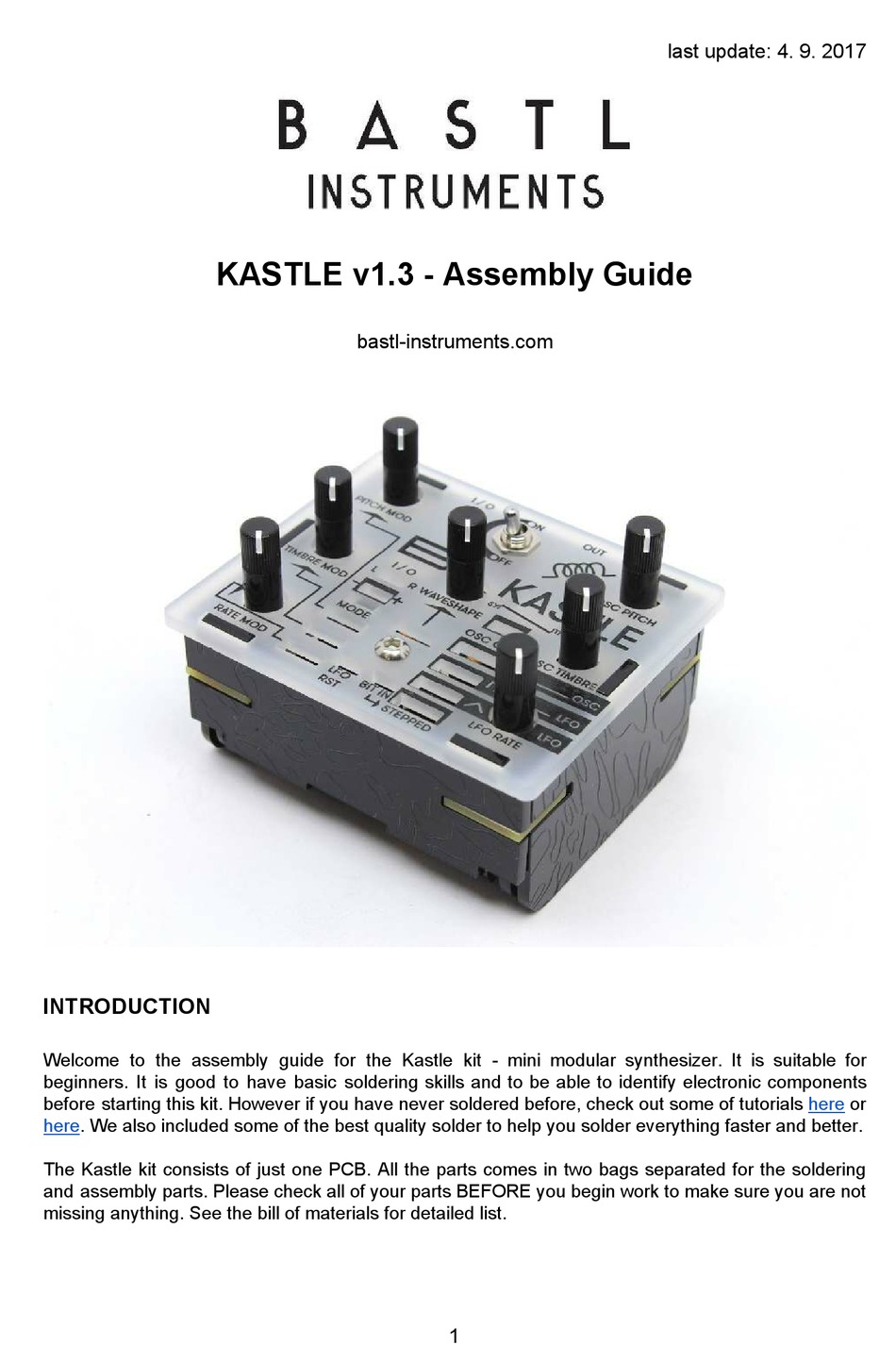

KASTLE​ ​ v 1.3​ ​ - ​ ​ A ssembly​ ​ G uide
bastl-instruments.com
INTRODUCTION
Welcome to the assembly guide for the Kastle kit - mini modular synthesizer. It is suitable for
beginners. It is good to have basic soldering skills and to be able to identify electronic components
before starting this kit. However if you have never soldered before, check out some of tutorials ​
h ere
or
. ​ ​ W e​ ​ a lso​ ​ i ncluded​ ​ s ome​ ​ o f​ ​ t he​ ​ b est​ ​ q uality​ ​ s older​ ​ t o​ ​ h elp​ ​ y ou​ ​ s older​ ​ e verything​ ​ f aster​ ​ a nd​ ​ b etter.
here​
The Kastle kit consists of just one PCB. All the parts comes in two bags separated for the soldering
and assembly parts. Please check all of your parts BEFORE you begin work to make sure you are not
missing​ ​ a nything.​ ​ S ee​ ​ t he​ ​ b ill​ ​ o f​ ​ m aterials​ ​ f or​ ​ d etailed​ ​ l ist.
