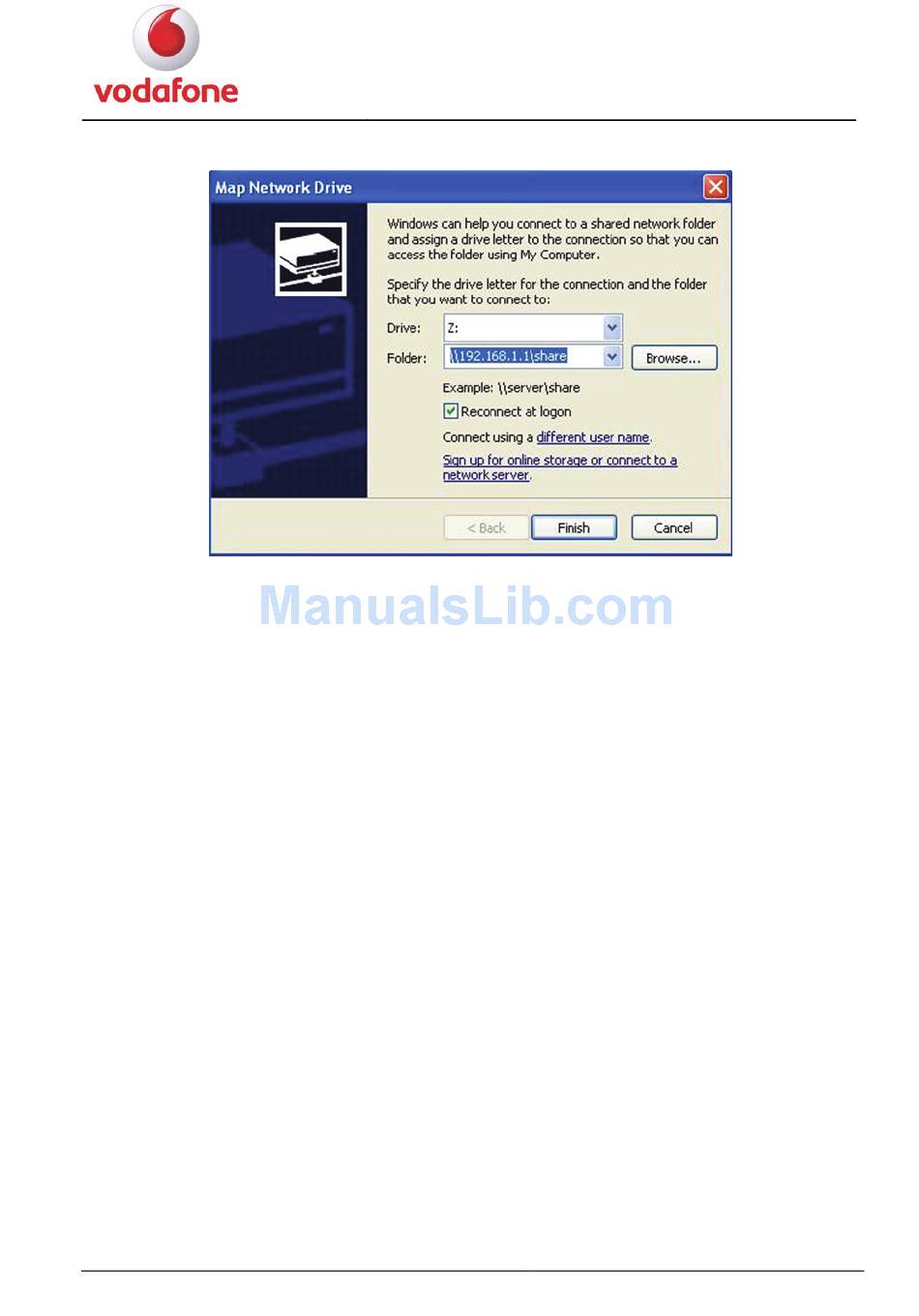

Figure 3-19 Map Network Drive page

3.5.2 USB Printer Function

To enable the USB printer function, do as follows:
Connect the cables as follows:
1.
Step1 Connect the power adapter to the power interface on the rear panel of the HG556a
and plug the power adapter into a wall outlet or a power strip.
Step2 Connect the PC to any of the four LAN interfaces on the rear panel of the HG556a
by using the provided Ethernet cable. For details, see section 2.2 "Supplying Power to the
HG556a" and section 2.3 "Connecting the PC to the HG556a".
Step3 Connect the USB cable of the printer to the USB port on the HG556a.
Figure 3-20 USB printer connection
User Manual 28
