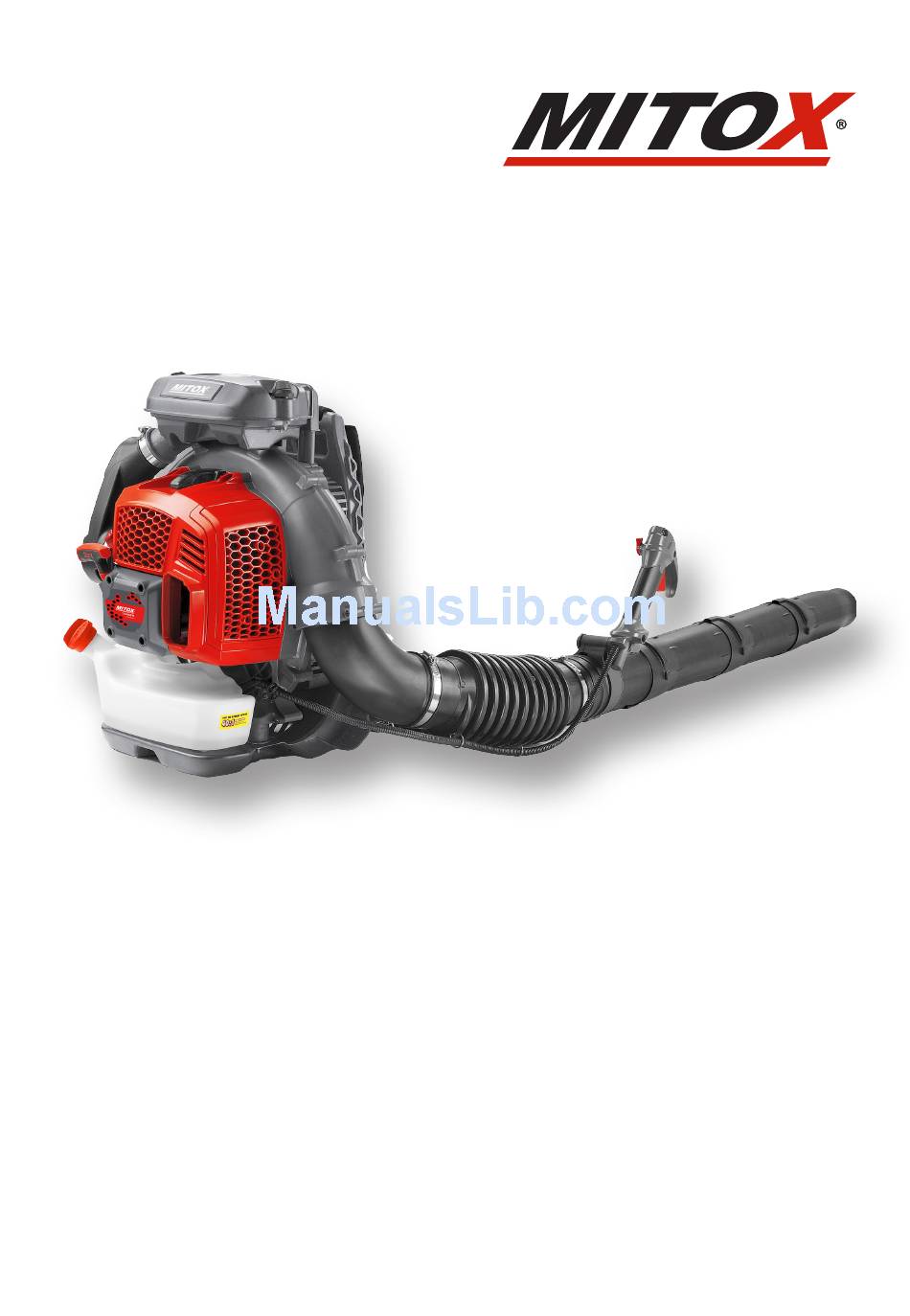

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 760BPX Premium Backpack Blower Read this manual carefully before operating the machine Original Instructions Version June 16 760BPX_2805161...
-
Page 2: Table Of Contents
If this product is sold, this manual should be passed on to the buyer. This MITOX® product is a 2-stroke fast running power tool and is designed to be used in a domestic application. This product is designed to be used as a Backpack Blower and should be used for blowing leaves. -
Page 3: Safety Symbols
760BPX Premium Safety Symbols Operate the engine switch knob - Flipping the switch knob towards the “STOP” marking, immediately the engine stops. Warning! Danger. The failure to use this machine correctly can be hazardous for oneself and others. Read the instruction manual before using the machine. -
Page 4: Component Location
760BPX Premium Component Location Original Instructions Version June 16 760BPX_2805161... - Page 5 760BPX Premium Component Location Handgrip For carrying the unit when not in use Harness Fully adjustable for maximum comfort Flexible Hose For easy adjustment of the air flow direction Control Handle Fully adjustable with throttle control & on/off switch Rear tube...
- Page 6 If the warning labels provided with this product become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from your authorised MITOX® servicing dealer and replace the damaged labels. When applying new labels, first wipe away any dirt and dry the surface before applying the new label in the same place as the original label.
-
Page 7: Safety
Keep this manual safe so that you may refer to it later, whenever any questions arise. Also note that you are able to contact your authorised MITOX® dealer for assistance. Always include this manual when selling, lending or otherwise transferring ownership of this product. - Page 8 760BPX Premium Work Clothing & Safety Equipment When using this product, you should wear the correct Personal Protective Equipment. • Helmet (these have a 5 year lifetime) • Safety goggles / face protector • Ear protection • Thick work gloves •...
-
Page 9: Before Starting The Engine
If this cannot be achieved, take your machine to your authorised MITOX® dealer for adjustment. Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. -
Page 10: Fuel Advice / Safety
760BPX Premium • Always remove fuel from the fuel tank before transportation to reduce the risk of fuel spillage. • Never leave this product exposed to direct sunlight, as this can heat the fuel tank and could cause a discharge of fuel flooding the engine. - Page 11 760BPX Premium Due to the increased Ethanol content in today’s fuel, we recommend the use of B3C Ethanol Shield 2-stroke oil or Ethanol Shield Fuel Stabiliser, to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information...
-
Page 12: Operating Instructions
760BPX Premium Operating Instructions 1. Prepare the Machine The machine can be used as a blower; for this use it is necessary to correctly arrange the appropriate accessories included with the equipment. Unpacking and completing the assembly should be done on a flat and stable surface, with enough space for moving the machine and its packaging, always making use of suitable equipment. - Page 13 760BPX Premium 1.3 Connecting the intermediate tube (Fig. 3) Align the pin (5a) and the slot (6b) and fit the first intermediate tube (6) onto the rear tube (5) (step 1). Rotate the intermediate tube clockwise to the end (approximately 90 degrees) (step 2). Align the pin (6a) and the slot (6b) and fit the second intermediate tube (6) onto the first intermediate tube (6) (step 1).
- Page 14 760BPX Premium 1.5 Fixing the control handle Fit the control handle (2) onto the clamping ring (5a), and then tighten it with the lock knob (7). (Fig. 5) The control handle is multi-position. Rotate the control handle by loosening the lock knob to acquire the most comfortable position, then tighten the lock knob securely.
-
Page 15: Preparing To Work
760BPX Premium 2. Preparing to work Before stating work please follow the instructions below: - Check that all the screa on the machine are tightly fastened - Check the air filter is clean - Check that vibration absorbers are fine... -
Page 16: Using The Machine
760BPX Premium 3. Using the Machine 3.1 Starting the Machine Before starting the engine, place the machine on stable ground and make sure the blow tubes are not crushed. 3.1.1 Cold starting A “cold” start of the engine means starting it after at least 10 minutes from when it was switched off or after refuelling. - Page 17 760BPX Premium 7. Pull the starter handle (16) again until the engine starts (fig. 12) 8. When the engine has started, allow the engine run to at idle for 10 seconds. 9. Rev the engine a little using the throttle trigger (9) to warm it up before using the machine.
-
Page 18: Operating The Blower
760BPX Premium 3.2 Adjusting the Speed Rotor rpm must be proportionate to the type of work and regulated by the throttle trigger (9) located on the upper handgrip. The throttle trigger can be held in any required position using the throttle setting device (8). -
Page 19: Routine Maintenance
760BPX Premium 4.1 End of Operations When you have finished your work: – Switch off the engine as indicated above – Disconnect the spark plug cap. 5. Routine Maintenance Correct maintenance is essential to maintain the original efficiency and safety of the machine over time. - Page 20 760BPX Premium 5.5 Air Filter IMPORTANT Cleaning the air filter is essential to guarantee the efficiency and duration of the machine. Do not work with a damaged filter or without a filter, as this could permanently dam- age the engine.
- Page 21 IMPORTANT When the engine tends to switch off or there is not much difference in speed when using the throttle trigger, it is recommended to adjust the carburation settings. This operation must be performed by an authorised MITOX® dealer. 5.8 Long Periods of Non-use...
- Page 22 All accessible screws Retighten Check Anti-Vibration Elements Replace* Safety Labels Replace Muffler Clean *MITOX® recommends that this work be performed by a MITOX® servicing dealer or qualified persons. Use only the spare parts recommended by MITOX®. Original Instructions Version June 16 760BPX_2805161...
-
Page 23: Extraordinary Maintenance
6.1 Fuel Filter Inside the fuel tank there is a filter which prevents impurities from entering the engine. The filter should be replaced once a year by an authorised MITOX dealer. 6.2 Carburretor Adjustments The carburettor is tuned by the manufacturer to achieve maximum performance in all situations, with a minimum emission of toxic gas in compliance with the regulations in force. -
Page 24: Technical Specification
760BPX Premium 7. Technical Specification Technical Data Unit 760BPX Premium Capacity cm³ 75.6 Power Maximum Engine Rotation Speed 7300 Spark Plug Bosch USR7AC Mixture (Petrol : 2-Stroke Oil) 40:1 Fuel Tank Capacity 2100 Acoustic Power Level Guaranteed dB (A) Vibration Level m/s²... - Page 25 760BPX Premium 8. Notes Original Instructions Version June 16 760BPX_2805161...
-
Page 26: Parts Drawings / Specification
760BPX Premium Original Instructions Version June 16 760BPX_2805161... - Page 27 760BPX Premium ID No. Drawing Number Description ID No. Drawing Number Description MIA41.0700.0008 SCREW M5X25 MIF76.0103.0006 NEEDLE BEARING 12X16X15 MIF76.0100.0000 RECOIL STARTER ASSY MIF76.0103.0003 PISTON PIN MIA25.0110.0101 ROPE GUIDE MIF76.0103.0001 PISTON MIC43.1110.0001 STARTER ROPE MIF76.0103.0002 PISTON RING MIA62.0110.0002 STARTER HANDLE MIF76.0101.0005...
- Page 28 760BPX Premium Original Instructions Version June 16 760BPX_2805161...
- Page 29 760BPX Premium ID No. Drawing Number Description ID No. Drawing Number Description MIF76.0114.0005 CLAMP(100-120) MIGB/T96 M5 WASHER M5 MIF76.0101.0021 CLIP MIF76.0101.0014 SCREW M5×10 MIF76.0114.0002 FLEXIBLE HOSE MIF76.0101.0013 SCREW M5×20 MIF76.0114.0100 REAR TUBE MIF76.0116.0400 HARNESS MIF76.0114.0003 INTERMEDIATE TUBE MIF76.0114.0004 NOZZLE MIF76.0112.0005 THROTTLE KNOB MIF76.0112.0100...
- Page 30 760BPX Premium ID No. Drawing Number Description MIDECAL760BPX/1 RECOIL DECAL - 760BPX MIDECAL760BPX/2 AIR FILTER COVER DECAL MIDECAL760BPX/3 SAFETY DECAL - 760BPX MIDECAL760BPX/4 CHOKE DECAL - 760BPX Original Instructions Version June 16 760BPX_2805161...
-
Page 31: Ec Declaration Of Conformity
760BPX Premium EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Petrol Powered Garden Blower (BackPack Powered Unit) Model(s): MITOX 760BPX PREMIUM Type/Serial No: As per rating label on machine... - Page 32 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
