Mitox 26B-SP Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

www.mitox.co.uk
Operator's Manual
user manual, maintenance instructions and spare parts

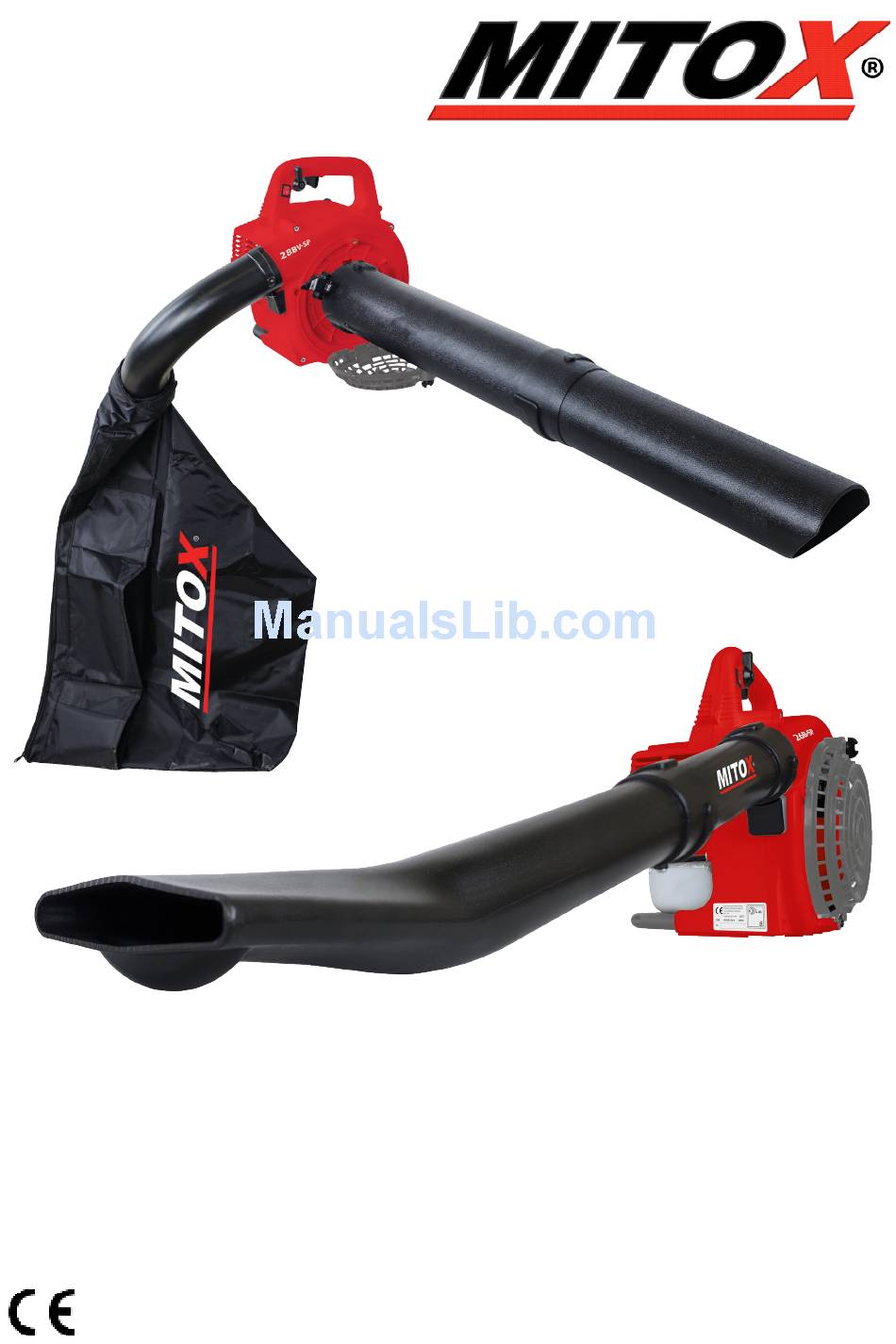

26B-SP / 28BV-SP Blower/Vacuum
Read this manual carefully before operating the machine
Original Instructions Version June 17 - 270617v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26B-SP and is the answer not in the manual?

Questions and answers

Related Manuals for Mitox 26B-SP

Summary of Contents for Mitox 26B-SP

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 26B-SP / 28BV-SP Blower/Vacuum Read this manual carefully before operating the machine Original Instructions Version June 17 - 270617v1...

  • Page 2: Table Of Contents

    26B-SP / 28BV-SP CONTENTS HOW TO READ THE MANUAL Certain paragraphs in the manual contain particularly significant information and are marked with various levels of highlighting with the following meaning: NOTE or IMPORTANT These give details or further information on what has already been said and aim to prevent damage to the machine or cause other damage.
  • Page 3 26B-SP / 28BV-SP Improper use The machine must not be used for accumulation and collection of inflammable or explosive products, hot embers or combustable material without a flame, lit cigarettes, pieces of glass, sharp objects, metal objects, stones and any other object that could be dangerous to the operator and others.
  • Page 4 26B-SP / 28BV-SP 1 Power unit 2 Graduated fuel bottle 3 Tool with screwdriver and spark plug wrench TO USE AS BLOWER - 4 First blower tube 5 Second blower tube TO USE AS VACUUM - 6 First vacuum tube...

  • Page 5: Safety Regulations

    26B-SP / 28BV-SP SAFETY REGULATIONS This machine is extremely noisy and operators must wear acoustic protection equipment. A) TRAINING 1) WARNING! Read these instructions carefully before operating the machine. Become acquainted with the controls and the proper use of the machine. Learn how to stop the engine quickly.
  • Page 6 26B-SP / 28BV-SP 4) Replace faulty or damaged silencers. 5) Before using the machine, carry out an accurate inspection of the machines efficiency and in particular: • the throttle trigger must move freely, it must not need forcing and should return automatically and rapidly back to the neutral position;...
  • Page 7 26B-SP / 28BV-SP 11) Ensure the machine does not come into contact with foreign bodies and possible flying debris and dust being thrown up by the air; do not direct the air jet in the direction of people or animals.
  • Page 8 26B-SP / 28BV-SP 23) Prolonged exposure to vibrations can cause injuries and neurovascular disorders (also called “Raynaud’s syndrome” or “white hand”), especially to people suffering from circulation disorders. The symptoms can affect the hands, wrists and fingers and are shown through loss of sensitiv- ity, torpor, itching, pain and discolouring of or structural changes to the skin.

  • Page 9: Operating Instructions

    26B-SP / 28BV-SP F) ENVIRONMENTAL PROTECTION Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area.

  • Page 10: Preparing To Work

    26B-SP / 28BV-SP 1.2 USE AS A VACUUM COLLECTOR – Remove the screw (1) and its washers (2). – Align the housing of the bag tube (3) with the protrusion (4) of the air outlet, push the tube and turn it 90° anticlockwise, in order to permanently fix it in place.
  • Page 11 NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. Original Instructions Version June 17...

  • Page 12: Using The Machine

    26B-SP / 28BV-SP IMPORTANT The fuel mixture tends to age. Do not prepare excessive amounts of the fuel mixture to avoid the formation of deposits. IMPORTANT Keep the petrol and fuel mixture containers separate and easily identifiable to avoid the mistake of using one in place of the other.
  • Page 13 26B-SP / 28BV-SP Fig.4 IMPORTANT To avoid breaking the starter rope, do not pull the whole length of it or let it slide along the edge of the rope guide hole. Release the starter gradually, to avoid letting it fly back uncontrollably.

  • Page 14: Operating Modes

    26B-SP / 28BV-SP 4. OPERATING MODES 4.1 USE AS A BLOWER The machine must always be firmly gripped with your right hand on the upper hand grip during work. The Engine speed should be adjusted to the type of material to be removed: –...

  • Page 15: Routine Maintenance

    26B-SP / 28BV-SP IMPORTANT When using the machine as a vacuum collector, there is a risk of inadvertently suctioning objects which can obstruct the machine and block the rotor. In this case: – switch the motor off immediately - remove the spark plug cap.
  • Page 16 26B-SP / 28BV-SP 5.4 NUTS AND SCREWS Periodically check that all the nuts and screws are securely tightened and the hand grips are tightly fastened. IMPORTANT Cleaning the air filter is essential to guarantee the efficiency and duration of the machine. Do not work with a damaged filter or without a filter, as this could permanently damage the engine.

  • Page 17: Original Instructions Version June

    All accessible Check screws Retighten Anti-vibration Check elements Replace1) Safety labels Replace Muffler Clean1) 1) MITOX recommends that this work be performed by a MITOX servicing dealer. Use only the spare parts recommended by MITOX. Original Instructions Version June 17...

  • Page 18: Warranty Work

    26B-SP / 28BV-SP 6. WARRANTY WORK This work must be performed exclusively by your Dealer. All and any operations performed in unauthorised centres or by unqualified persons will totally invalidate the warranty. 6.1 FUEL FILTER Inside the fuel tank there is a filter which prevents impurities from entering the engine.

  • Page 19: Technical Information

    26B-SP / 28BV-SP TECHNICAL INFORMATION Technical data Unit 26B-SP / 28BV-SP Capacity 25.4 Power Maximum engine rotation speed min<1 7900 Spark plug NGK BPMR7A Mixture (petrol: 2-Stroke oil) 40:1 Fuel tank capacity Acoustic power level guaranteed dB (A) Weight (Blower/Vacuum collector)
  • Page 20 26B-SP / 28BV-SP Parts Diagram 1 Engine Original Instructions Version June 17...

  • Page 21: Parts List 1

    26B-SP / 28BV-SP Parts List 1 ID No. Part Number escription MI701G30416-F M4X16_HEX SCREW SET MI5009.31901-black EASY-STARTER MI5009.34101 STARTER DRIVE PLATE MI5009.33209 BEHIND HALF CRANKCASE MI5009.34601 CRANKCASE SEAL GASKET MI5003.32801 OIL SEAL TC12X22X7 MI321010301 BEARING 6001 MIT.GBV26E-12 CRANKSHAFT CONNECTING ROD SET MI5009.32701...
  • Page 22 26B-SP / 28BV-SP Parts List 1 ID No. Part Number escription MI320200061 M5X55_ HEX SCREW MI324040301 FLAT GASKET 5 MI324110301 SPRING GASKET 5 35-1 MIT.BCB33.05-3 AIR FILTER SCREW 35-2 MIT.HT26D.01-1 COVER, OUTER, AIR FILTER 35-3 MIT.BCB43.01-2 SPONGE, AIR FILTER 35-4 MIT.HT26D.01.1...
  • Page 23 26B-SP / 28BV-SP Parts Diagram 2 26B Housing Original Instructions Version June 17...

  • Page 24: Parts List 2

    26B-SP / 28BV-SP Parts List 2 ID No. Part Number escription MI340400253 FRONT HALF HOUSING MI340500098 HANDLE MI320300007 SCREW M5X25 MIGB/T97.01 FLAT GASKET 8 MI320500033 UNDER IMPELLER WASHER MI340400251 IMPELLER MI320500034 ABOVE IMPELLER WASHER MI331000138 MULCHING PLATE MI320400020 M8 NUT...
  • Page 25 26B-SP / 28BV-SP Parts List 2 ID No. Part Number escription 26.1 MIGB/T845 SCREW ST4.8*16-H-F 26.2 MIT.GBV26E-023A SWITCH HOUSING 1 26.3 MIT.GBV26E.04A STOP SWITCH WIRE A 26.4 MIT.GBV26E-022A SWITCH FEELER 27.1 MIGB/T845 SCREW ST2.9*6.5-H-F 27.2 MIT.GBV26E-026 SWITCH HOUSING 2 27.3 MIT.GBV26E-027...
  • Page 26 26B-SP / 28BV-SP Parts Diagram 3 28BV Housing Original Instructions Version June 17...

  • Page 27: Parts List

    26B-SP / 28BV-SP Parts List 3 ID No. Part Number escription MI340400253 FRONT HALF HOUSING MI340500098 HANDLE MI320300007 SCREW M5X25 MIGB/T97.01 FLAT GASKET 8 MI320500033 UNDER IMPELLER WASHER MI340400251 IMPELLER MI320500034 ABOVE IMPELLER WASHER MI331000138 MULCHING PLATE MI320400020 M8 NUT...
  • Page 28 26B-SP / 28BV-SP Parts List 3 ID No. Part Number escription 30.3 MIT.GBV26E.019A FAN COVER 30.4 MIGB/T96.2 FLAT GASKET 5.5X15X1 30.5 MIT.GBV26E.008 SPRING 30.6 MIT.GBV26E.007 SPRING SCREW 30.7 MIGB/T845 ST4.8*12-H-F SCREW 31.1 MIGB/T845 SCREW ST4.8*16-H-F 31.2 MIT.GBV26E-023A SWITCH HOUSING 1 31.3...
  • Page 29 26B-SP / 28BV-SP Original Instructions Version June 17...
  • Page 30 26B-SP / 28BV-SP NOTES: Original Instructions Version June 17...
  • Page 31 26B-SP / 28BV-SP Original Instructions Version June 17...
  • Page 32 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.

This manual is also suitable for:

28bv-sp
