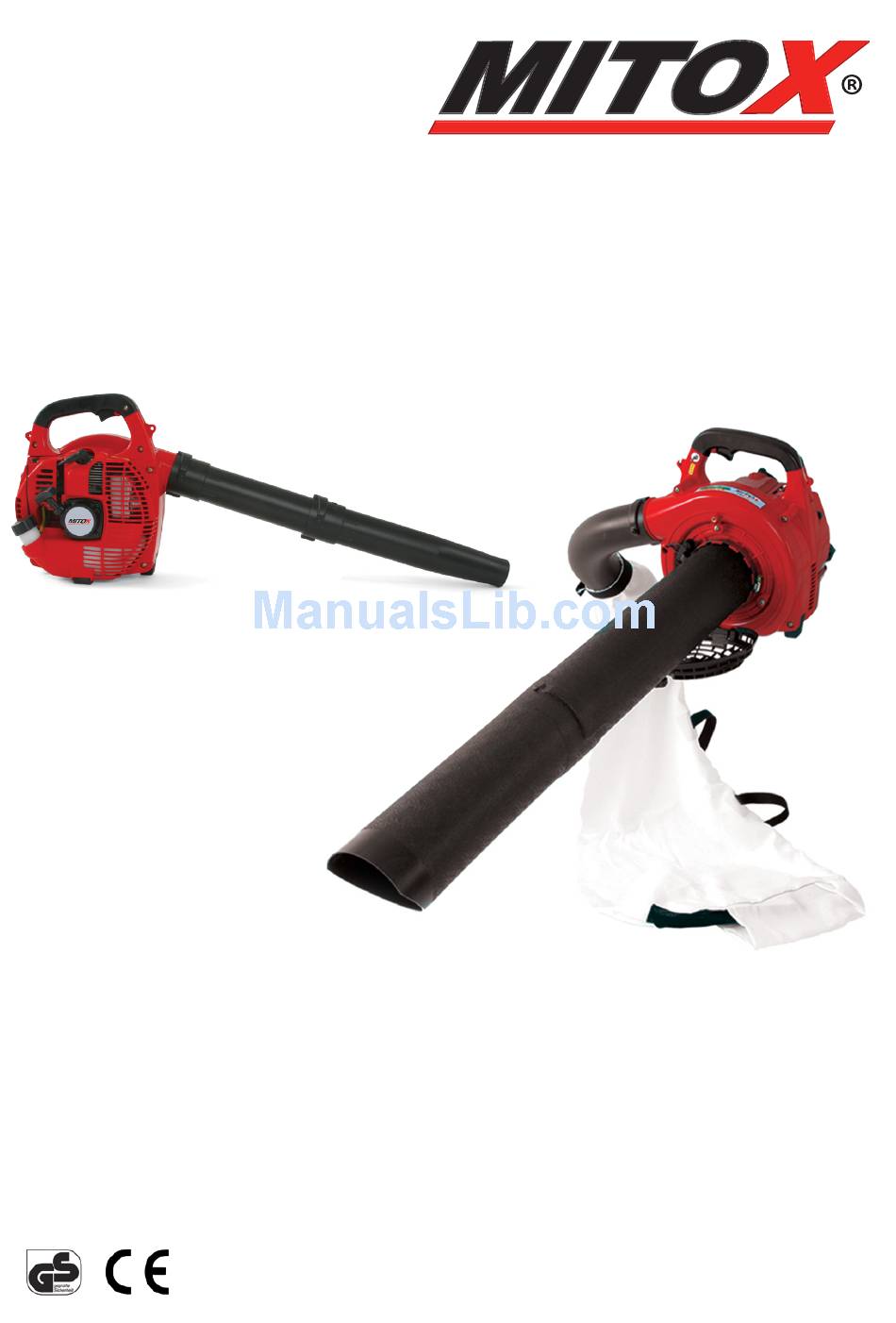

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 26B Blower / 28BV Blower Vacuum Read this manual carefully before operating the machine Original Instructions Version October 13...
-
Page 2: Component Location
26B Blower / 28BV Blower Vacuum Component Location 1. Ignition Switch ON-OFF toggle switch. Switch to ON before starting. Switch to OFF to stop engine 2. Spark Plug Provides spark to ignite 2-stroke fuel mixture 3. Air Cleaner Replaceable air filter 4. -
Page 3: Work Clothing And Safety Equipment
The information contained in this manual describes machines available at the time of production. While every attempt has been made to give you the very latest information about your 26B/28BV, there may be some differences between your machine and what is described here .We reserve the right to make changes in production without prior notice, and without obligation to make alterations to machines previously manufactured. -
Page 4: Warnings In The Manual
26B Blower / 28BV Blower Vacuum Warnings in the Manual This manual contains special “attention statements” surrounded by boxes and preceded by the triangular Attention Symbol: Additional attention statements that are not preceded by the Attention Symbol are: IMPORTANT A statement preceded by the word “IMPORTANT” is one that possesses special significance. -
Page 5: Specifications
26B Blower / 28BV Blower Vacuum Product Description The operational procedures described in this manual are intended to help you get the most from your machine and also to protect you and others from harm. These procedures are general guidelines only, and are not intended to replace any safety rules/laws that may be in force in your area. - Page 6 26B Blower / 28BV Blower Vacuum Assembling the Vacuum 1. Fit the Vacuum elbow tube over the blower discharge port, aligning the channels in the tube over the locking pin. 2. Twist the Vacuum elbow tube to engage the locking pin as illustrated.
- Page 7 26B Blower / 28BV Blower Vacuum Fit the upper vacuum tube over the vacuum intake port, aligning the channels in the tube over the locking pin. Twist the upper vacuum tube to engage the locking pin as illustrated. Attach the lower vacuum tube to the upper vacuum tube using the same method.
-
Page 8: Assembling The Blower
26B Blower / 28BV Blower Vacuum Assembling the Blower Fit the straight blower tube over the blower discharge port, aligning the channels in the tube over the locking pin. Twist the straight blower tube tube to engage the locking pin as illustrated. Lock the tube in place using 1 x M5x10 screw. - Page 9 26B Blower / 28BV Blower Vacuum Fit the tapered blower tube over the straight blower tube, aligning the channels in the tube over the locking pins. Twist the tapered blower tube tube to engage the locking pins as illustrated. Note the tapered discharge chute is marked with a TOP side.
-
Page 10: Two-Stroke Fuel
26B Blower / 28BV Blower Vacuum Two-Stroke Fuel Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel. Always stop the engine and allow it to cool before refuelling. Refuel outdoors on bare ground, restart engine at least 5m away from the refuelling stop. -
Page 11: Fuel Storage
26B Blower / 28BV Blower Vacuum Fuel Storage Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the grass trimmer for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel. - Page 12 26B Blower / 28BV Blower Vacuum Fuelling Shake the fuel container to thoroughly mix the two- stroke oil and petrol. Clean dirt from around the fuel cap before removing. Pour two-stroke fuel into the fuel tank with a filtered funnel, up to 80% of the fuel tanks capacity.
-
Page 13: Starting The Machine
26B Blower / 28BV Blower Vacuum Starting the Machine Original Instructions Version October 13... - Page 14 26B Blower / 28BV Blower Vacuum IMPORTANT ! A two-position “ON-OFF” switch located on the left of the machine handle grip controls the engine ignition. Cold Engine Starting Procedure Prime the fuel system by repeatedly Cold Engine Only. Choke the...
-
Page 15: Stopping The Engine
26B Blower / 28BV Blower Vacuum Hot Engine Starting Procedure Set the ignition switch to the ON position . Pull the starter rope until the engine starts. If the engine does not start after 5 pulls, use the cold start procedure. -
Page 16: Adjusting The Engine Idle Speed
26B Blower / 28BV Blower Vacuum Adjusting the Engine Idle Speed Start the engine by following the procedures described on the preceding pages. Run the engine at idle speed until operating temperature is reached (2-3 minutes). Use a screwdriver to adjust the engine idle speed to 2300-2500r/min. -
Page 17: Using The Machine
26B Blower / 28BV Blower Vacuum Using the Machine As a general rule, try to operate your machine at the lowest throttle setting necessary to get the job done: • Use low throttle settings when clearing lightweight materials from around lawns or shrubbery. -
Page 18: Using The Vacuum
26B Blower / 28BV Blower Vacuum Using the Vacuum Always be aware of the strength and direction of stream. Never direct the blower discharge stream toward people or animals. Using the Blower Always be aware of the strength and direction of stream. -
Page 19: Routine Maintenance
26B Blower / 28BV Blower Vacuum Routine Maintenance Daily Maintenance Remove dirt and debris from the blower exterior. Inspect the engine, tank, and hoses for possible fuel leaks, and repair as necessary. Inspect the engine cooling fins for accumulations of dirt or debris, and clean as necessary. - Page 20 26B Blower / 28BV Blower Vacuum Every 10/15 Hours Use 1. Use the spark plug wrench to remove the spark plug (turn counter-clockwise to remove). 2. Clean and adjust the spark plug gap to 0.6~0.7mm. Replace any damaged or visibly worn plug with a NGK BPMR7A or equivalent.
- Page 21 26B Blower / 28BV Blower Vacuum Spark Arrestor Maintenance Hard starting or gradual loss of performance can be caused by carbon deposits lodged in the spark arrestor screen. For maximum performance, the spark arrestor screen should be periodically cleaned as follows: Remove the spark plug.
- Page 22 26B Blower / 28BV Blower Vacuum Storage (30 days or longer) CLEANING Thoroughly clean the machine exterior. INSPECTION Inspect the entire machine and tubes for damage, including loose or missing components, and repair as necessary. FUEL Drain the fuel tank, and then clear the carburetor and lines by running the machine until it stops from lack of fuel.
- Page 23 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 24 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 25 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 26 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 27 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 28 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 29 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 30 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 31 26B Blower / 28BV Blower Vacuum Original Instructions Version October 13...
- Page 32 The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
