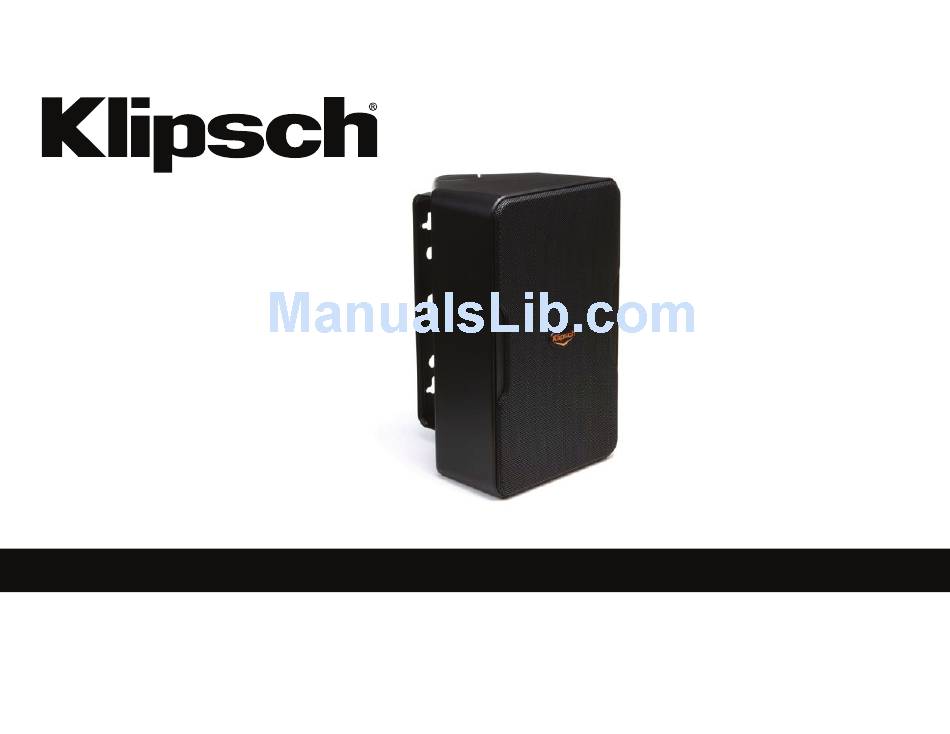

CP-T SERIES
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP-4T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Klipsch CP-4T

Summary of Contents for Klipsch CP-4T

  • Page 1 CP-T SERIES OWNER’S MANUAL...

  • Page 2: What's Inside

    CP-T SERIES Thank you for your purchase of the Klipsch CP-T Series 70/100 The CP-4T contains a high quality, built-in 70/100 Volt transformer Volt speakers! They are designed to both withstand the rigors of with a single, fixed 5/10 watt tap while the CP-6T contains a 70/100 outdoor use while also complimenting any indoor décor.
  • Page 3 SPEAKER DIMENSIONS WITH/WITHOUT INCLUDED BRACKETS CP-6T CP-4T 7.0” (17.8cm) 6.9” 5.5” (17.5cm) 5.5” (14.0cm) (14.0cm) 11.0” 9.4” 8.8” 7.2” (27.9cm) (23.9cm) (22.4cm) (18.3cm) 4.7” (11.9cm) 6.1” (15.5cm) BEFORE SPEAKER INSTALLATION/CONNECTION Tools/Parts Needed For Installation: a) A level b) A pencil c) A Philips #2 screwdriver or Phillips #2 bit with a drill with a LOW TORQUE SETTING d) Two #10 or #12 2.5-3 inch (4-5cm) Pan Head Screws for each speaker for mounting into wall...
  • Page 4 STEP 1 Typical Wall-Mounting With Included Bracket (Level not included) If Wall/Wall Corner or Ceiling/Wall Corner Mounting With Included Bracket Choose speaker location and run speaker wire to location. Use included template and a level to mark bracket hole locations where speaker will be mounted.
  • Page 5 STEP 2 Run speaker wire (and Safety Cable if used) through hole in bracket back and attach wall bracket to wall. Use #10-#12, 2.5-3 INCH Pan Head Screws Safety Cable (if desired or required) Speaker Wires...
  • Page 6 STEP 3 Remove front terminal cover then slide speaker partially onto mounted bracket arms. Channel speaker wire from rear slot through front opening while keeping speaker in position with hand. Terminal Cover...
  • Page 7 STEP 4 To keep speaker on bracket while adjusting use Phillips IF USING A SPEAKER SAFETY CABLE head screwdriver (or drill/screwdriver bit AT LOW TORQUE Attach it with a 1” (2.5cm) 20-thread screw (not included) to SETTING) and partially screw in front top/bottom bracket either threaded insert on speaker rear.

  • Page 8: Mounting Options

    STEP 5 With speaker still loosely on bracket arms, adjust speaker to desired angle on wall. MOUNTING OPTIONS 45˚ 45˚ WALL CEILING OR WALL 45˚ 45˚...
  • Page 9 STEP 6 CP-6T SPEAKER ONLY Connect speaker wires to terminals (in parallel with all Select desired wattage tap setting on speaker front for either speakers) with Phillips screwdriver or LOW TORQUE drill/bit. 70 or 100 Volt operation.
  • Page 10 STEP 7 Once speaker is positioned as desired push back all the way back on bracket arms until flush with bracket caps and screw two partially inserted screws all the way in to lock position. STEP 8 TEST SOUND: Play music/test signal through speaker to make sure connections are tight, and, IF USING CP-6T, tap setting is correct for desired volume.
  • Page 11 STEP 9 Once speaker is in the final position and tested, attach grill by pressing grill into channel encircling speaker front *SPEAKER GRILL REMOVAL: Use included grill removal tool, insert into a top corner and gently pull out. Repeat on a corner next to first one pulled, then pull out grill gently with hand.

  • Page 12: Painting The Speakers

    PAINTING THE SPEAKERS Paint speaker and bracket top/ bottom caps separately. First, clean speaker cabinet and bracket top/bottom caps with mild solvent or mild detergent/water Then create a paint mask for speaker front (baffle) by tracing speaker grill on sheet of thicker, non-porous paper then cutting paper around tracing.
  • Page 13 CONNECTION Wire from amp to first speaker, then from first to second speaker, then from second to third speaker, ALWAYS WIRE IN PARALLEL IN A 70 OR 100 V SYSTEM! etc. (“Daisy Chain” wiring). Parallel Wiring 7.5 Watts 7.5 Watts 7.5 Watts 7.5 Watts 70/100 Volt...

  • Page 14: Speaker Placement Guidelines

    SPEAKER PLACEMENT GUIDELINES +3 dB SPL and ADDED BASS Wall Positioning +3 dB SPL and +3 dB SPL and ADDED BASS ADDED BASS Speaker Spacing <=30 FT (9M) To maintain consistent volume levels across an area, space speakers on wall based on their 90 coverage patterns aimed down to listening area.
  • Page 15 Pole Mounting Inverse Square Law Using the 1/4”, 20-threaded For every doubling of distance inserts on the rear of the Klipsch from a speaker SPL is reduced by CP speakers and pole mount 6dB (-6dB) brackets from a third party...
  • Page 16 CP-4T SPECIFICATIONS CP-6T SPECIFICATIONS FREQUENCY RESPONSE 100Hz-22kHz +/- 3dB FREQUENCY RESPONSE 83Hz-22kHz +/- 3dB POWER HANDLING 5 watt fixed @ 70V/10 watt fixed @ 100V POWER HANDLING 75 w (300 peak) (8 ohm bypass) MAX CONTINUOUS OUTPUT 94 dB @ 70V/97 dB @ 100V...
  • Page 17 3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA KLIPSCH.COM ©2013, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation.

This manual is also suitable for:

Cp-6t
