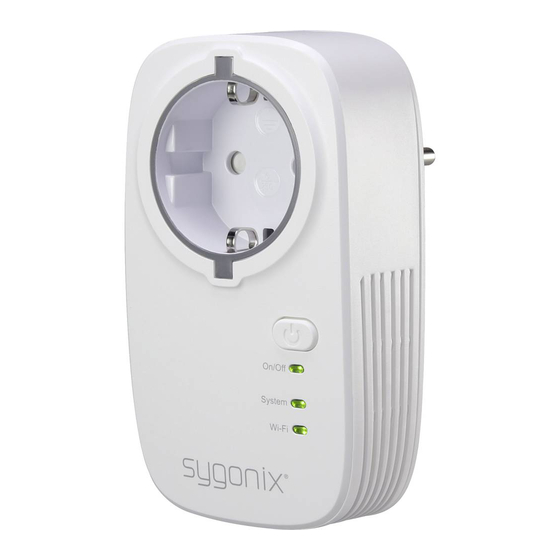

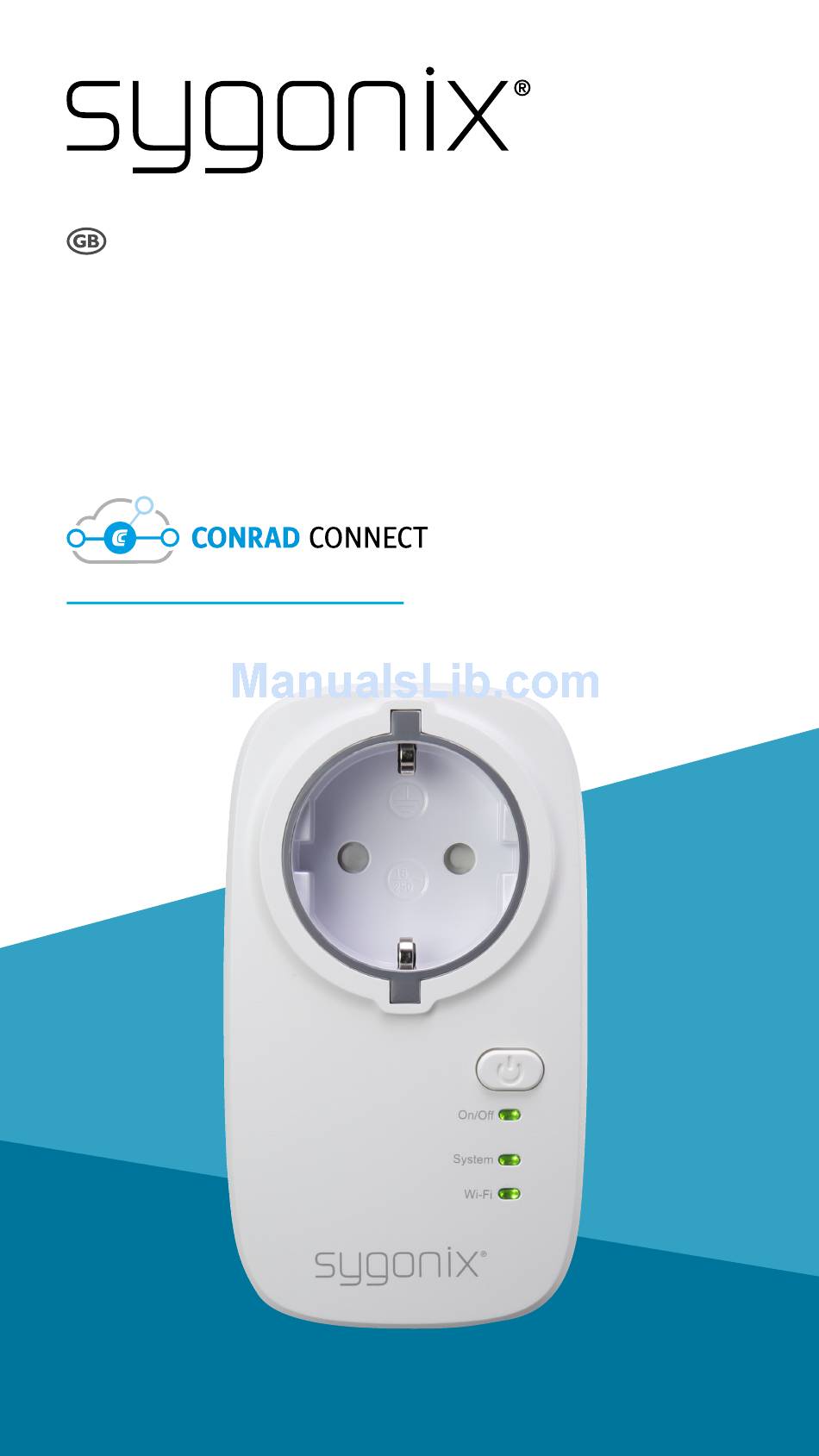

- Page 1 App Instruction Manual Smart WiFi switchable plug-in socket Item No. 1557806 / CP1M (with metering) Item No. 1557807 / CP1 www.conradconnect.de...
-
Page 2: Table Of Contents
Contents Conrad Connect ..........3 Symbols ............3 App to device communication ......4 Indicator lights on smart device ....... 4 Core functions ..........5 Installation ............6 Deinstallation ........... 6 Multiple mobile devices ........6 User account ........... 7 App landing page .......... -
Page 3: Conrad Connect
Conrad Connect Your product is compatible with the Conrad Connect IoT platform at www.conradconnect.de. You can set up a personal account at the given URL. Symbols The following instructional symbols are used in this instruction manual. This triangle indicates important instructions contained in these operating instructions that must be followed. -
Page 4: App To Device Communication
App to device communication ■ In order to add a new device to the app, the mobile device that runs the app and the smart device must connect to your WLAN. ■ Once a new device was added, you can control the smart device through the app via WLAN or mobile network. -
Page 5: Core Functions
Core functions Real-time metering of power consumption of connected load. Nr. 1557807 does not support metering and therefore does not show any readings for functions related to metering. Recording, retrieval and display of power consumption statistics: ■ Wh (W < 1000), kWh ■... -
Page 6: Installation
1. Head to the respective app store and download the app named 'Sygonix Home' onto your mobile device. 2. Set up a user account as outlined under User account. -
Page 7: User Account
User account A 'Sygonix' account is required for you to operate the smart device. Your smart device cannot be linked to two accounts at the same time. Adding the smart device to a second account will remove it from the first account. - Page 8 After logging out of your current account you can log in with a different one. Integrating with Conrad Connect Note that your 'Sygonix' account is independent of Conrad Connect. If you wish to integrate your smart device with Conrad Connect you require a separate Conrad Connect account.
-
Page 9: App Landing Page
App landing page Account settings Add new devices App settings Turn device on/off Device list Show Devices Show Scenes - 9 -... -
Page 10: App Settings
App settings Press to open app settings: Language Select app language Select currency Price for electricity Set the charge for one kWh Download operating Manual instructions See app version and available app updates. About Links to www.conrad.com www.conradconnect.de Software/Firmware updates Two types of updates There are two types of software updates indicated in the app:... -
Page 11: Updating Firmware
For all firmware updates the smart device and the mobile device that runs the app must be connected to the same WLAN network during the update. Updating firmware 1. Make sure that mobile device and smart device are connected to the same WLAN network. -
Page 12: Adding A New Device
Adding a new device During set-up make sure to keep the mobile device running the app and the smart device within receiving distance of the wireless access point. 1. Connect your mobile device running the app to your WLAN network. 2. -
Page 13: Device Settings
Device settings 1. Select the smart device from the device list on the landing page. 2. Press to open the device settings. 3. Adjust settings: Icon Select an icon for your device. Name Give your device a name. Firmware Indicates the firmware version version of the smart device. -
Page 14: Overcurrent Protection
Overcurrent Protection Activation If the current of the power plug-in socket (CP1M only) exceeds the maximum permissible current (see operating instructions that came with your device), the overcurrent protection is triggered and the socket deactivated. Reset To reset the plug-in socket, remove the load and press the On/Off button on the socket to re-activate it. -
Page 15: Metering
Metering Real-time wattage Back to Home Real-time wattage Turn device on/off - 15 -... - Page 16 Energy consumption Records Energy/Cost display Hours/Days/Months switch Currency - 16 -...
-
Page 17: Control
Control Remind yourself of the possible dangers the device you intend to connect can pose to your environment. Read the instruction manual that came with the product you are going to connect to the smart device to find out if it is suitable to be operated without attendance. - Page 18 Timer Timer turns device on or off Time settings Quick time setting Start/Stop timer Note: ■ : turns the smart device off ■ : turns the smart device on - 18 -...
- Page 19 Schedule Add new schedule rule Rule disabled Rule enabled - 19 -...
- Page 20 Adding a new schedule rule Time Fixed date Weekdays Rule turns smart device on or off 1. Press to start creating a new rule. 2. Decide if the new rule shall turn the device on or off. Select On–Off accordingly. 3.
- Page 21 Schedule Example 1 A schedule is required that turns a connected light on at 18:00 and off at 09:00 the following morning. Schedule shall be active every day. We need 2 schedules: Schedule 1 Repeat Mon, Tue, Wed, Thu, Fri, Sat, Sun Time 18:00 On/Off...
- Page 22 Schedule Example 2 A schedule is required that turns a connected and suitable coffee maker on at 06:00 every morning, excluding the weekend. We need 1 schedule: Schedule 1 Repeat Mon, Tue, Wed, Thu, Fri Time 06:00 On/Off Set to For the above example, you must ensure that the coffee maker is not left unattended and is turned off manually...
- Page 23 Schedule Example 3 A schedule is required that turns a connected and suitable coffee maker on at 06:00 every morning, excluding the weekend. But, on Wednesdays on 08:00 instead of 06:00. We need 2 schedules: Schedule 1 Repeat Mon, Tue, Thu, Fri Time 06:00 On/Off...
-
Page 24: Scenes
Scenes A scene is a collection of procedures to be executed when triggered. Open scenes as follows: 1. Go to the app landing page. 2. Touch Default scenes The default scenes are pre-set in the app and not all default scenes may be compatible with your smart device. - Page 25 User-defined scenes 1. Touch +. 2. Under the Add New Scene panel, touch the scene and give the scene a name. 3. Touch next to Actions of scene. 4. Under the Add New Task panel, select a device. The available actions of the selected device are listed.
-
Page 26: Device Reset
Device Reset Attention! Resetting removes all configuration data in the smart device. Option 1 1. Select the device from the device list. 2. Press 3. Press Factory Setting Reset Option 2 1. Navigate to the landing page. 2. Android: Long press on the smart device in the device list. - Page 27 This is a publication by Conrad Electronic SE, Klaus- Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
