EVID-S Surface Mount 12" Subwoofers
EVID-S12.1B | EVID-S12.1W
en | Installation manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVID-S12.1B and is the answer not in the manual?

Questions and answers

Summary of Contents for Electro-Voice EVID-S12.1B

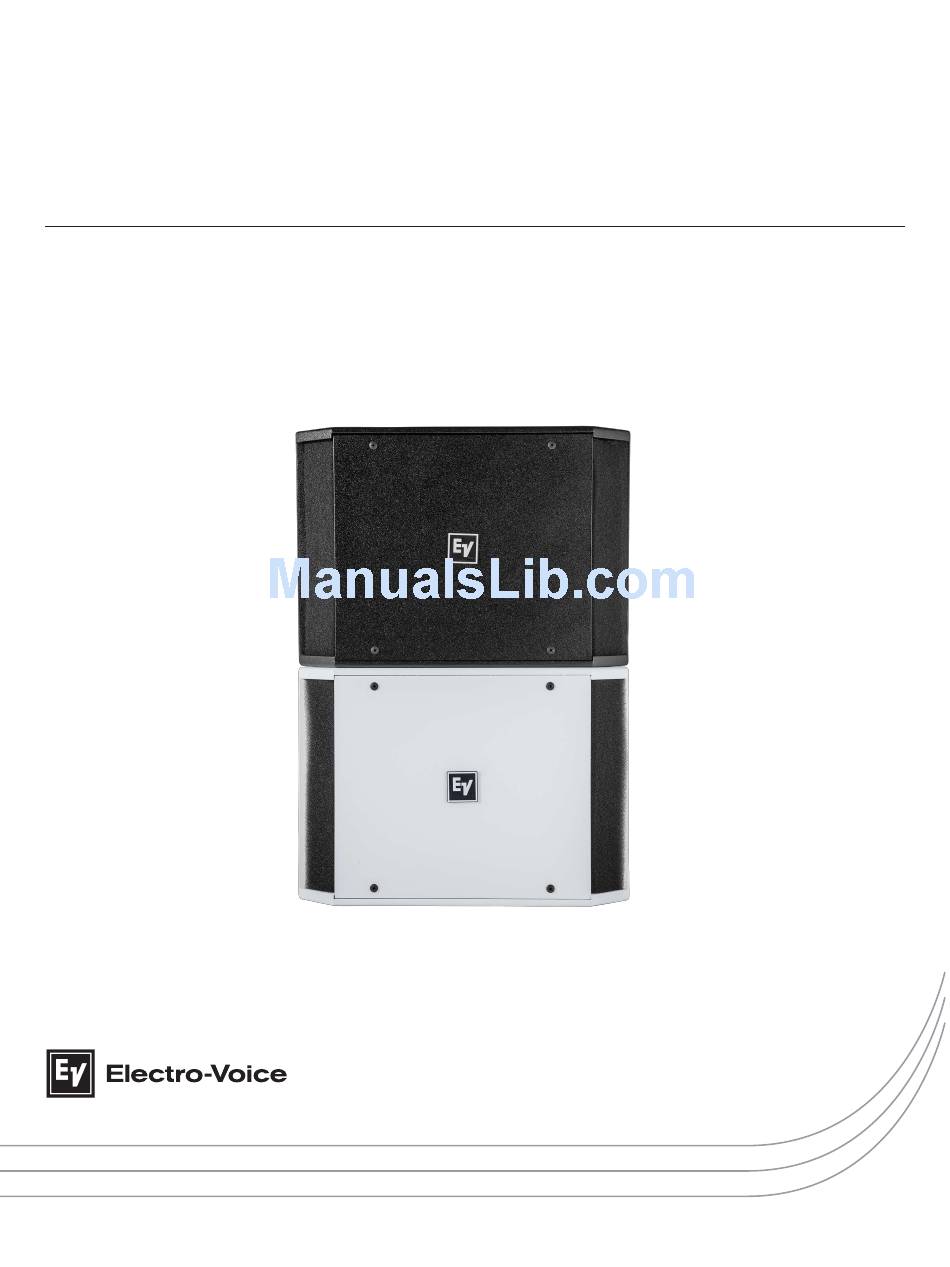

  • Page 1 EVID-S Surface Mount 12” Subwoofers EVID-S12.1B | EVID-S12.1W en | Installation manual...
  • Page 3: Table Of Contents

    Table of contents Safety Suspension Notices Introduction System features Product information Packing list Installation Wiring Troubleshooting Technical data Dimensions Frequency response and impedance Appendix A: painting process Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028...
  • Page 4: Safety

    Suspending any object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of suspending objects overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into account all current national, federal, state, and local laws and regulations. It is the responsibility of the installer to ensure all loudspeakers are safely installed in accordance with all such requirements.
  • Page 5: Introduction

    Introduction The EVID-S12.1 subwoofer, from Electro-Voice, is a compact, high-performance, dual voice coil loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S12.1 subwoofer is the ideal solution for indoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
  • Page 6: Packing List

    Packing list Quantity Component Subwoofer Wall/corner mounting bracket Rubber mounting feet Logo (spare) Speaker mounting clips Eyebolt Installation manual Table 2.2: Components list C (x 4) E (x 2) Figure 2.2: Components 2017.08 | 01 | F.01U.347.028 Installation manual Electro-Voice...
  • Page 7: Installation

    Insert one of the 3/8-16-thread Philips-head screws through the remaining mounting clip. Keep this hardware at arm's reach. Slide the enclosure sideways to engage the top mounting clip over the bracket rung (1). A: Rungs Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028...
  • Page 8 Insert one of the 3/8-16-thread Philips-head screws through the remaining mounting clip (2, 3). Finger tighten the screw. 10. Straighten the clip. Release the subwoofer. 11. Securely tighten the bottom Philip-head screw using a #3 right-angle Philips screwdriver. 2017.08 | 01 | F.01U.347.028 Installation manual Electro-Voice...
  • Page 9: Wiring

    Figure 4.1: Direct wiring plan from amplifier – L + – R + – L + – R + – – Left 1 Right 1 – Left 2 Right 2 Figure 4.2: Daisy-Chain wiring plan Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028...
  • Page 10: Troubleshooting

    Poor System Check and correct the system grounding, as required. Grounding or Ground Loop If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor. 2017.08 | 01 | F.01U.347.028 Installation manual Electro-Voice...
  • Page 11: Technical Data

    Eighth (1/8) space (corner mounting). Eighth (1/8) space (on corner) averaged 60 Hz – 100 Hz, 1 W. Without mounting hardware. Dimensions 584.2 mm [23.00 in] 412.8 mm [16.25 in] 303.3 mm [11.94 in] Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028...
  • Page 12: Frequency Response And Impedance

    Frequency Response, 1/2 space 1W / 1m, both inputs driven (1/2 watt per voice coil), without signal processing Impedance (both inputs in parallel) 6.32 1000 10000 20000 Frequency (Hz) 2017.08 | 01 | F.01U.347.028 Installation manual Electro-Voice...
  • Page 13: Appendix A: Painting Process

    When the paint is thoroughly dry, carefully unmask everything. Replace the foam blocks, pressing them gently down onto the sharp pins. Replace the hatch cover and tighten the four screws. Properly orient the EV logo and press it firmly into place. Electro-Voice Installation manual 2017.08 | 01 | F.01U.347.028...
