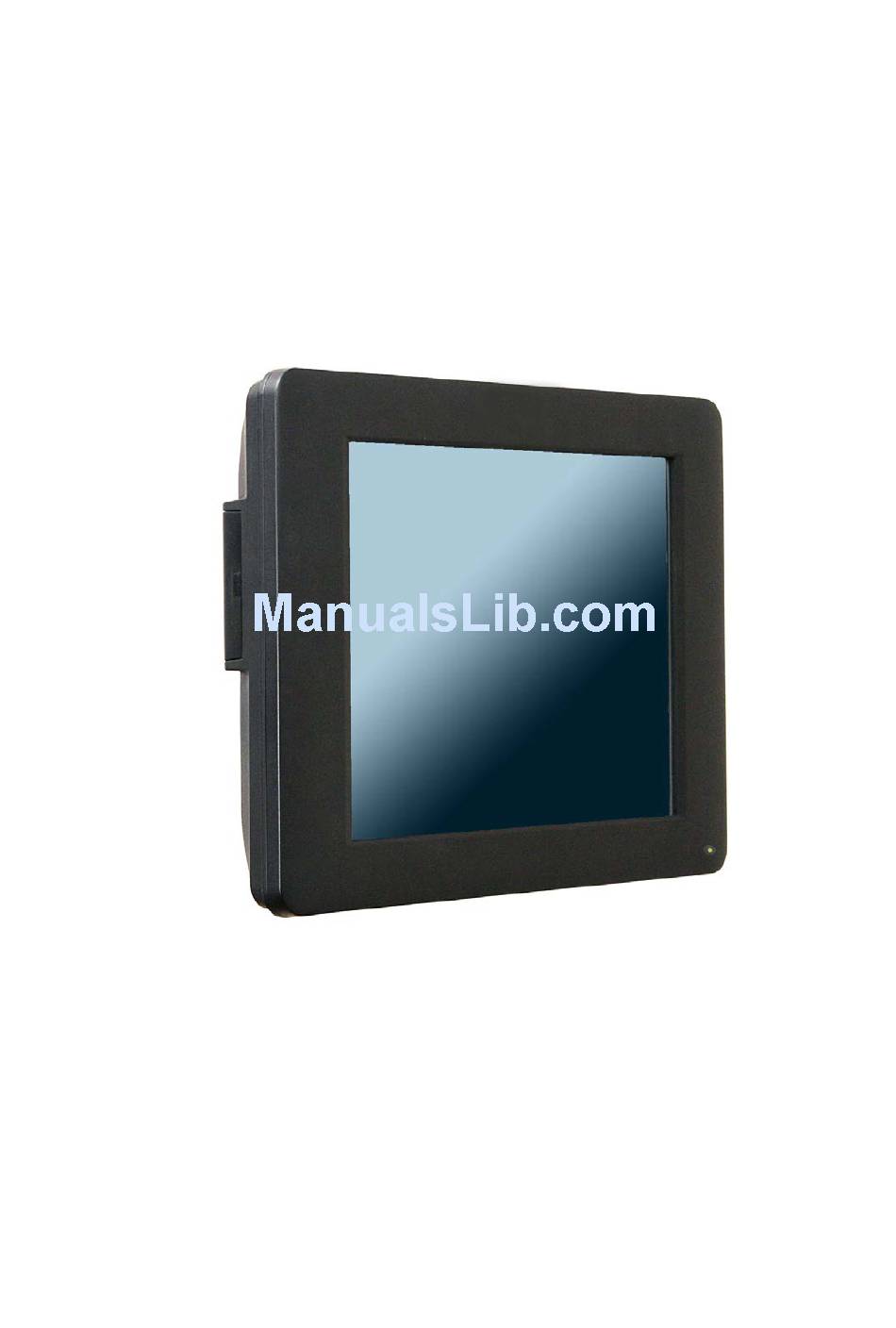

- Page 1 Service Manual X-PPC 710...
-
Page 3: Liability Disclaimer
Copyrights ©2014. All rights reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. This document contains proprietary information protected by copyright. -
Page 4: Table Of Contents
Contents Copyrights ..................i Liability Disclaimer ................i Contents ................... ii 1. Before You Start ................1 2. Opening the Device ..............2 3. RAM Disassembly ............... 3 4. HDD Disassembly ................ 4 5. LED Driving Board Replacement ..........5 6. -
Page 5: Before You Start
Before You Start 1. Please unplug the power cable before you start to work. 2. Please read and follow the instructions in this document carefully. Failure to follow these instructions could damage your device and void the warranty. 1.1. Tools Suggested All procedures in this document require the following tools: #0 Phillips screwdriver #1 Phillips screwdriver... -
Page 6: Opening The Device
Opening the Device 1. Loosen the screw as shown. 2. Separate the back panel from the front panel by lifting up and lay it down carefully. Chapter 2... -
Page 7: Ram Disassembly
RAM Disassembly 1. Open the tow ejectors on the slot by pushing them, and remove the RAM from the slot. 3. Install the new RAM module in reverse procedure. Chapter 4... -
Page 8: Hdd Disassembly
HDD Disassembly 1. Loosen the four screws by #1 Phillips screwdriver as shown below and remove the HDD assembly from the device. 2. Unplug one connector of the power cable from the HDD. 3. Loosen the four screws by #1 Phillips screwdriver as shown below and remove the HDD assembly from the device. -
Page 9: Led Driving Board Replacement
LED Driving Board Replacement 1. Disconnect two connecters. 2. Loosen the two screws from LED Driving Board as shown below, and then you can remove the LED Drive Board. 3. Install the new LED Driving Board in the reverse procedure Chapter 10... -
Page 10: Other Components, Cables And Mainboard Replacement
Other Components, cables and mainboard Replacement 6.1. Disconnect Cables from the Mainboard 1. Remove: 1. LED indicator connector, 2. SATA cable, 3. LCD connector, 4 backlight connector, 5. power switch connector cable, 6 serial port cable, 7. Customer display cable, 8. USB cable and 9 speaker cable from the main board. -
Page 11: Mainboard And I/O Panel Disassembly
6.2. Mainboard and I/O Panel Disassembly 1. Loosen the four screws. 2. Loosen the four screws by 1.5 mm hexagon socket spanner as shown below, and then you can remove the mainboard from the device 3. Remove the two screws by #1 Phillips screwdriver as shown below, and then you can remove the I/O bracket from the back cover.. -
Page 12: Lcd Panel Replacement
LCD Panel Replacement 1. Unplug the LED indicator. 2. Disconnect the LCD cable from the LCD assembly. 3. Disconnect the touch panel cable. Chapter 10... - Page 13 4. Loosen the fourteen screws as shown and remove the LCD assembly from the front bezel. 5. Remove the LCD panel. Chapter 10...
