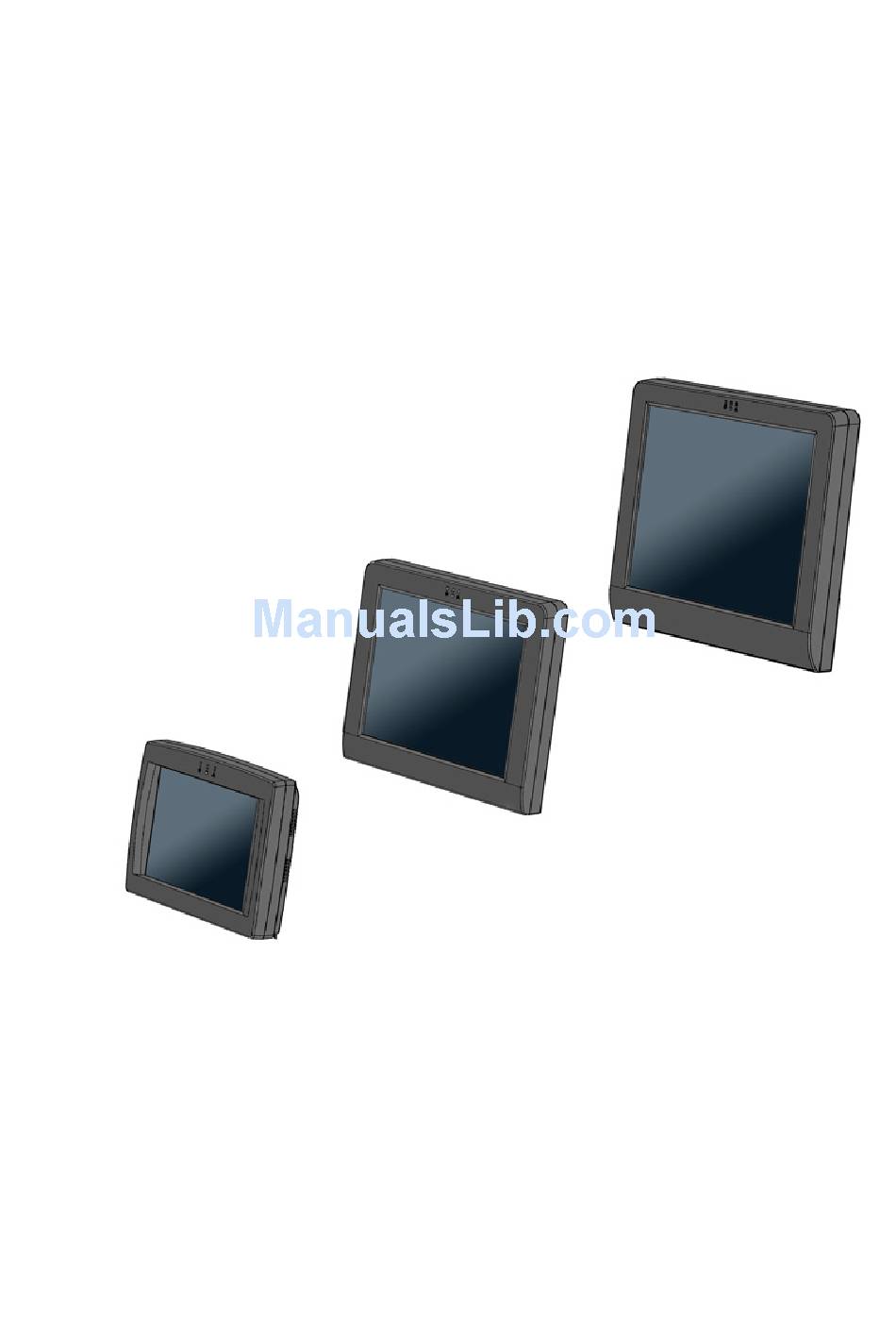

- Page 1 User’s Manual WTM 60 Series...
-
Page 2: Liability Disclaimer
Copyrights communications. However, there is no guarantee that interference will not occur in a particular ©2009 All rights reserved. The information in this installation. If this equipment does cause harmful document is subject to change without prior notice in interference to radio or television reception, which order to improve reliability, design and function and does can be determined by turning the equipment off and not represent a commitment on the part of the... -
Page 3: Weee Notice
WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. -
Page 4: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ...................i Regulatory Information................i FCC Notices......................i CE Notice ......................i WEEE Notice......................ii Contents....................iii Hardware Setup..................4 3.1. Quick Tour....................4 Front View...................... 4 Back View ...................... 5 Back Panel I/O ....................6 Hardware Setup..................7 LR Series ....................... 7 VR Series....................... -
Page 5: Hardware Setup
Hardware Setup 3.1. Quick Tour Front View WTM60-8B-VR/ WTM60-8B-LR WTM60-2B-VR/ TM60-2B-LR WTM60-5B-VR/W WTM60-5B-LR LED Indicator The Power indicator will glow green when power is on. Chapter 1... -
Page 6: Back View
Back View WTM60-8B-LR/ WTM60-8B-VR WTM60-2B-LR /WTM60-2B-VR WTM60-5B-LR /WTM60-5B-VR Chapter 1... -
Page 7: Back Panel I/O
Back Panel I/O LR Series (WTM60-8B-LR / WTM60-2B-LR / WTM60-5B-LR) VR Series (WTM60-8B-VR / WTM60-2B-VR / WTM60-5B-VR) Chapter 1... -
Page 8: Hardware Setup
Hardware Setup LR Series 1. Connect the one connector of the LVDS cable to the LVDS port on the back panel of the WTM 60, another connector to your POS device. 2. Connect the one connector of the audio cable to the audio-in jack on the back panel of the WTM 60, another connector to your POS device. -
Page 9: Touch Screen Driver And Utility Installation
Touch Screen Driver and Utility Installation 4.1. Before the installation For CD-ROM onboard model: 1. Insert the driver CD into the onboard CD-ROM drive. The program autoruns and displays the DRIVER BANK screen. 2. Follow the on-screen instructions. For Model without CD-ROM Onboard: 1. - Page 10 3. Click HIGGSTEC TOUCH PANEL. 4. Click “Next” button. 5. Click “Browse” to select the location where the driver installed, and then click “Next”. Or you can click “Next” go to next screen directly. Chapter 3...
- Page 11 6. Click “Browse” to select the start menu folder, and then click “Next”. Or you can click “Next” go to next screen directly. 6. This screen displays setting information. Click Install to continue installation. If you would like to change settings, click Back to return to previous screens.
- Page 12 8. The message below shows after the installation was successful. Click "OK" to complete the installation. Chapter 3...
-
Page 13: Specification
Specification WTM60-8B-LR/ WTM60-8B-VR Chapter 4... - Page 14 WTM60-2B-LR/WTM60-2B-VR Chapter 4...
- Page 15 WTM60-5B-VR/ TM60-5B-LR Chapter 4...
- Page 16 System Model WTM608 WTM612 WTM615 Model Name (LR Series) WTM60-8B-LR WTM60-2B-LR WTM60-5B-LR Model Name (VR Series) WTM60-8B-VR WTM60-2B-VR WTM60-5B-VR Display TFT LCD Size 8.4" 12.1" 15" Brightness 220nits 200nits 350nits Resolution 800x600 800x600 1024x768 Touch Screen 5-wire Resistive Type Wall Mount...
