- Page 1 MaNufactuRiNg NuMbeRs: 9500560 Display Cabinet VertiCal Model DCV-200 P/N 1011068 Rev. D 08/10 Owner s Manual ’...
-
Page 2: Table Of Contents

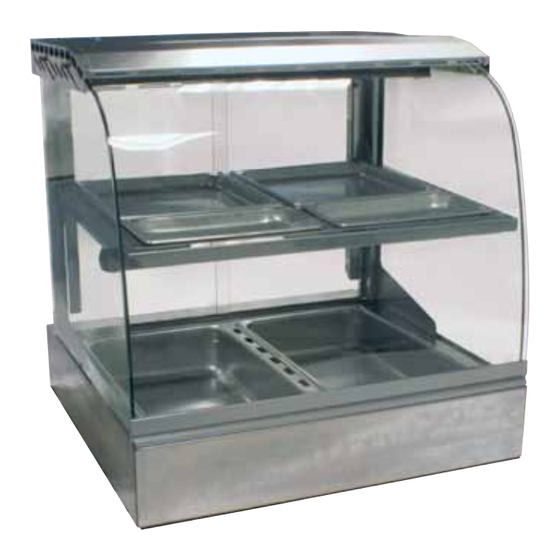

Owner InfOrmatIOn warranty Information General Please read the full text of the Limited Warranty in this the DcV-200 attractively displays food and main- manual. tains it at ready-to-eat temperatures. Hot air circulates throughout the entire display cabinet by natural con-... -
Page 3: Service/Technical Assistance
Roundup replacement parts in this Purchased from: unit. use of replacement parts other than those sup- plied by the manufacturer will void the warranty. Your... -
Page 4: Important Safety Information
Display Cabinet vertiCal ImpOrtant safety InfOrmatIOn in addition to the warnings and cautions in this manual, - Do nOt use an extension cord with this use the following guidelines for safe operation of the appliance. unit: - check with a qualified electrician if you • Read all instructions before using equipment. -
Page 5: Warnings Regarding Handling Of Glass
Display Cabinet vertiCal warnInGs reGarDInG HanDlInG Of Glass Display case Vertical (DcV models) Glass warnings please follow the safety Instructions below in order to reduce the chance of damaged/broken glass. warning: mishandling this product or failure to follow these instructions may result in shattering glass. Do nOt operate the unit without the top rubber gasket in place. -
Page 6: Specifications
Two 1¼” (32 mm) deep one-third size steam table pans on upper shelf • Two 1¼” (32 mm) deep two-thirds size steam table pans on upper shelf • One crumb tray temperature range DcV-200: 150°f to 165°f (66°c to 74°c) P/N 1011068 Rev. D 08/10... -
Page 7: Installation
1. Remove unit and all packing materials from shipping carton. 2. Open the large box. Remove all packing materi- figure 1. DcV-200 and crumb tray als and protective coverings from the unit and parts. nOte: If any parts are missing, contact a.J antunes &... -
Page 8: Operating & Programming
Display Cabinet vertiCal OperatInG & prOGrammInG Operation the DcV-200 has an adjustable temperature range of 150°f to 165°f (66°c to 74°c). 1. Open the Rear Door(s) and place the serving table pan(s) into the unit. 2. Load the pans with food product using tongs or similar utensils. -
Page 9: Maintenance
Display Cabinet vertiCal maIntenance cleaning warnInG all glass surfaces must be cool before cleaning. the unit requires a minimum amount of maintenance. Once cool, wipe glass with a clean cloth. Do nOt to ensure proper operation, clean the unit at the end of attempt to clean glass when hot or with a cold each serving day. - Page 10 Display Cabinet vertiCal maIntenance (continued) frOnt Glass panel replacement 1. turn the unit off, unplug the power cord, and allow Slide the unit to cool to room temperature. Top Cover Up and Back 2. slide the top cover back and up to lock it in the raised position (figure 5) 3.
-
Page 11: Display Codes
Display Cabinet vertiCal maIntenance (continued) Display codes this section describes the different display codes and their meanings. “lO” flashes during the initial warm-up period. the unit continues to display this code until the unit reaches the setpoint temperature. TEMP TEMP TEMP DOWN SCALE... -
Page 12: Troubleshooting
Display Cabinet vertiCal trOUblesHOOtInG warnInG To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. the unit should be unplugged when servicing. problem possible cause corrective action No heat, no display, and the Power cord is not plugged in. Plug the power cord into the appropriate outlet. power switch indicator light is off. -
Page 13: Wiring Diagrams
Display Cabinet vertiCal wIrInG DIaGrams P/N 1011068 Rev. D 08/10... -
Page 14: Replacement Parts
Display Cabinet vertiCal replacement parts P/N 1011068 Rev. D 08/10... - Page 15 Display Cabinet vertiCal replacement parts (continued) Item part Description Qty. Item part Description Qty. 0505924 Runner, top Pan, Horizontal 42 0505904 channel, Wire 0505923 Runner, top Pan, Vertical 43 0021624 support, Right side Weldment 0021632 top Heater Plate Weldment 44 0021623 support, Left side Weldment 0505897 crumb tray...
-
Page 16: Limited Warranty
(100 miles/160 km) round trip from the nearest authorized service agency. 2. Roundup reserves the right to make changes in design or add any improvements on any product. the right is always reserved to modify equipment because of factors beyond our control and government regulations.
