TLV Trapman Instruction Manual

Hide thumbs

Table Of Contents

Quick Links

RN070405A_TM6Manual_01E.doc

ISO 9001/ ISO 14001

Manufacturer

Kakogawa, Japan

is approved by LRQA LTD. to ISO 9001/14001

TrapMan

TM6

Table of Contents

Need help?

Do you have a question about the Trapman and is the answer not in the manual?

Questions and answers

Summary of Contents for TLV Trapman

Page 2: Table Of Contents
6. Settings....................... 9 7. Specifications.................... 11 8. Regulatory Compliance................12 1. TM6 Standard Set 1. Instruction Manual (this manual) 2. TrapMan: TM6 3. Soft Case 4. Earphone 5. Batteries (2 alkali AAA (LR03) or Ni-MH rechargeable batteries) 6. Cap 7. Carrying Strap...
Page 3: Safety Considerations
The three types of cautionary items above are very important for safety: be sure to • observe all of them as they relate to use, maintenance and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. Symbols Indicates a DANGER, WARNING or CAUTION item.
Page 4 WARNING Do not disassemble or modify. Failure to observe this precaution could result in injury, electrical shock, ignition or fire. PROHIBITED Do not operate the buttons or stare at the screen while walking. Failure to observe these precautions could lead to accidents such as tripping or collisions.
Page 5 If at any time the batteries become unusable, observe your company regulations for proper disposal in accordance with local laws. If proper disposal is impossible, insulate the contact terminals by covering them with tape and return them to a TLV office. PROHIBITED RN070405A_TM6Manual_01E.doc...
Page 6: Components

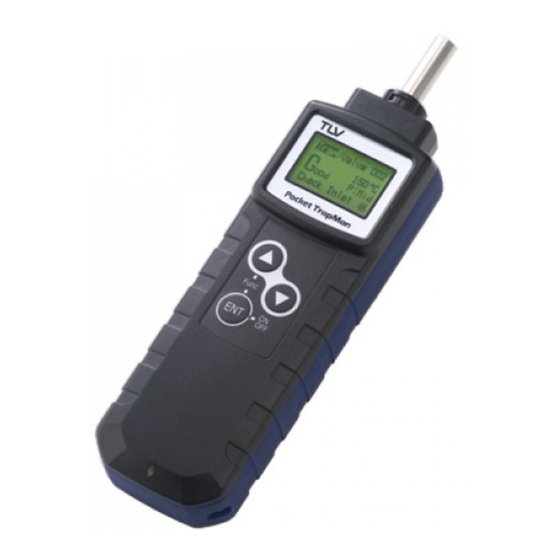

3. Components Ultrasonic sensor Temperature sensor Name Plate Earphone Jack Rock lever Key Pad LED Indicator Battery Pack Front view Back view RN070405A_TM6Manual_01E.doc...
Page 7: Tm6 Preparation
4. TM6 Preparation 4.1 Inserting Batteries 1) Turn the battery compartment lock counterclockwise to unlock. 2) Open the battery compartment and remove the battery pack (battery compartment cover). 3) Insert 2 batteries into the battery pack. Make sure the batteries have the correct orientation (polarity).
Page 8 4.4 Connect the Wireless Communication The TM6 communicates with TrapManager-Pro using wireless communication. Before you inspect the trap, you have to connect with TrapManager-Pro and download the trap data to TM6. 1) The wireless communication is connected by operation of TrapManager-Pro. 2) When TM6 and TrapManager-Pro are connected, the icon is shown on the TM6 display.
Page 9: Steam Trap Diagnosis
5. Steam Trap Diagnosis 5.1 Receive Trap Data The Trap Data is downloaded to the TM6 by operating of TrapManager-Pro. After downloading is successful, TM6 displays the Location ID and trap model. 5.2 Take Measurement 1) Measurements should be taken from the inlet side of the trap.
Page 10: Settings
6. Settings 6.1 Access Setting Selection 1) With the power on, simultaneously press [ ]+[ENT]. 2) Perform the following actions for each setting: a) Press [ ] or [ ] to highlight the desired mode or setting. b) Press [ENT] to select highlighted mode and proceed to next setting option. c) Press and hold [ENT] to exit settings and return to normal operation.
Page 11 6.5 LCD Contrast Increase or decrease the LCD display contrast level (between 0 and 31). a) Pressing [ ] / [ ] once increases/decreases the contrast level by 1. b) Holding [ ] / [ ] for more than 1 second increases/ decreases the contrast level more rapidly.
Page 12: Specifications
7. Specifications Product Name: TrapMan Model Name: Measurement Specifications: Items Measured: Ultrasonic sound Surface temperature Temperature Measurements: Measurement Temp. Range: 0 – 350 °C (32 – 662 °F) Response: 97% within 15 seconds (ideal conditions) Accuracy: ± 2 °C (± 4 °F) after 1 minute (ideal conditions)
Page 13: Regulatory Compliance
8. Regulatory Compliance This equipment complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

This manual is also suitable for:

Tm6
