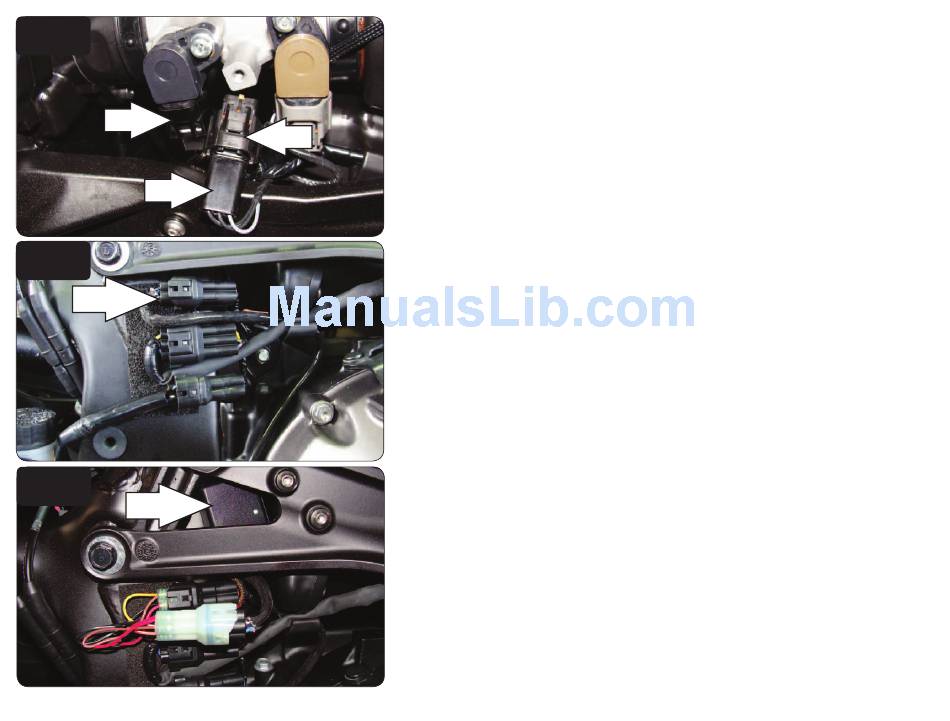

7 Locate the stock Throttle Position Sensor on the left side of the throttle bodies
This is the BLACK 3 pin connector.
8 Plug the 3 pin connectors from the PCV in-line of the stock TPS and stock
Stk
wiring harness (Fig. D).
Do NOT plug in-line of the GREY connector.
9 Remove the right hand side frame cover.
10 Unplug the stock O2 sensor connector from the wiring harness (Fig. E).
This is the 4 pin BLACK connector at the top of the row of connectors
11 Plug the Dynojet O2 Optimizer in-line of the stock O2 sensor and wiring
harness (Fig. F).
12 Tuck the Optimizer behind the bracket shown in Figure. F.
13 Reinstall bodywork and seats.
2013 Kawasaki Z800 - PCV - 4
