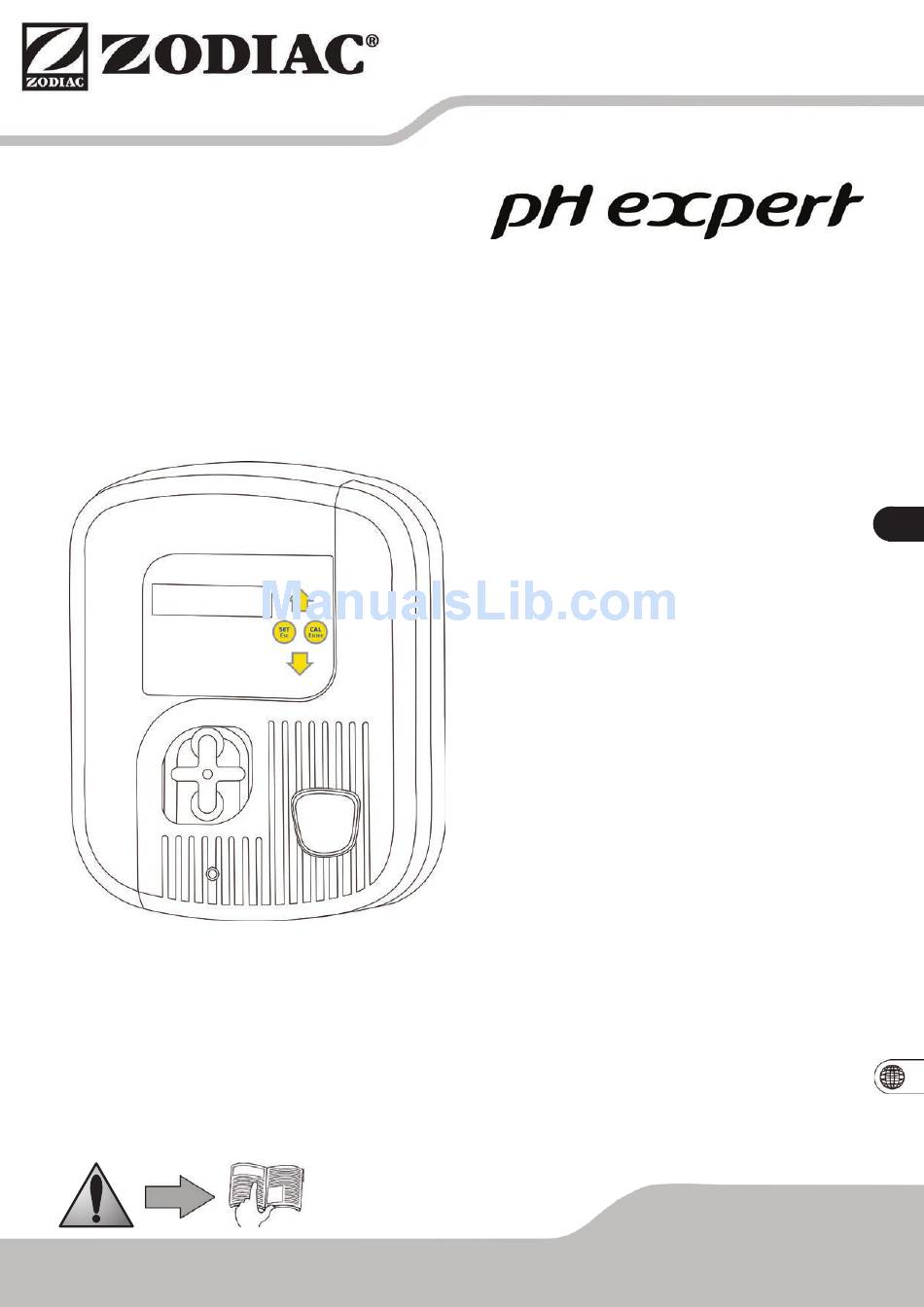

- Page 1 Instructi ons for installati on and use English More languages on: www.zodiac-poolcare.com H0434900.A - 2013/11...
- Page 2 • Read this notice carefully before installing, maintaining or repairing this appliance! • The symbol indicates important information that you must take into account to avoid the risk of injury or damage to the appliance. • The symbol indicates useful information as an indication. Warning •...
-
Page 3: Table Of Contents
Contents 1. Information before installing ......................3 1.1 General delivery terms and conditions ....................3 1.2 Contents ................................ 3 1.3 Technical specifications ..........................3 2. Installation ..............................3 2.1 Preparing the pool ............................. 3 2.2 Hydraulic connections ..........................4 2.3 Electric connections ........................... -
Page 4: Information Before Installing
1. Information before installing 1.1 General delivery terms and conditions All equipment, even postage and packing paid, travels at the risks and perils of the recipient. The latter must make written reserves on the transporter’s delivery documents if damage during transport is discovered (confirmed by registered letter to the transporter within 48 hours). -
Page 5: Hydraulic Connections
Recommended Test frequency Unit To increase To lower values (during the season) Add a scale sequestering 10 – 30 Add calcium (Calcium °f (ppm) agent (Calci-) or run a Monthly (100 – 300) chloride hardness) decarbonation Cyanuric acid Partially empty the pool mg/L or ppm <... -
Page 6: Electric Connections
• The sensor must be installed at more than 30 cm before or aft er a piping bend. Use the opti onal POD kit if necessary. Failing to follow this positi oning can lead to incorrect or unstable measurements. • The ti p of the pH sensor must not be in contact with the pipe. •... -
Page 7: Calibrating The Sensor
3.3 Calibrati ng the sensor For the appliance to operate accurately and reliably, the pH sensor must be calibrated regularly (on installati on, on re commissioning aft er wintering, and every 2 months when in use). • Rinse the ti p of the pH sensor with clean water using the supplied bott le of H²O fi lled with tap water. •... - Page 8 3.5.2 «Language» Menu The interface has six available languages: • EN = English, • FR = French, • ES = Spanish, • DE = German, • IT = Italian, • NL = Dutch. 3.5.3 «Set point» menu It is used to defi ne the set point for the desired pH level. 2 methods: •...
-
Page 9: Maintenance
The over feed safety operates in two main steps: • fl ashes aft er 75% of the programmed ti me without having reached the set point • is displayed when the ti me is up. The appliance then switches to safety mode. If fi ltering stops and restarts (=daily cycles) while the appliance is in «Stop OFA»... -
Page 10: Wintering
4.2 Wintering • During wintering it is recommended to rinse the peristalti c tube using clean water by carrying out manual priming (see §3.4). • Then place the roller holder at 6 o’clock to facilitate restarti ng. • Remove the pH sensor from its holder and store it in its original bott le, or in a container fi lled with tap water. -
Page 11: Registering The Product
6. Registering the product Register your product on our website: be the first to be informed of new Zodiac products and special offers, help us to continuously improve our product quality. Australia – New Zealand www.zodiac.com.au Europe, South Africa & Rest of the World www.zodiac-poolcare.com... -
Page 12: Electric Diagram
Electric diagram Dimensions H0434900.A - EN - 2013-10... - Page 13 Description Peristaltic pump Main switch BNC connector socket for pH sensor Cable gland for direct coupling with filtering system Connector for suction tube Connector for injection/release tube Gland for suction cane cable Gland for 230Vac/50Hz power supply cable H0434900.A - EN - 2013-10...
- Page 14 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
