SIM508 EVB User Guide

3.5.2 GPS part

Serial port 1:
Pin Signal
2 GPS_TXA
3 GPS_RXA
5 GND
Serial port 2:
Pin Signal
2 GPS_TXB
3 GPS_RXB
5 GND
SIM508-EVB_UGD_V1.01

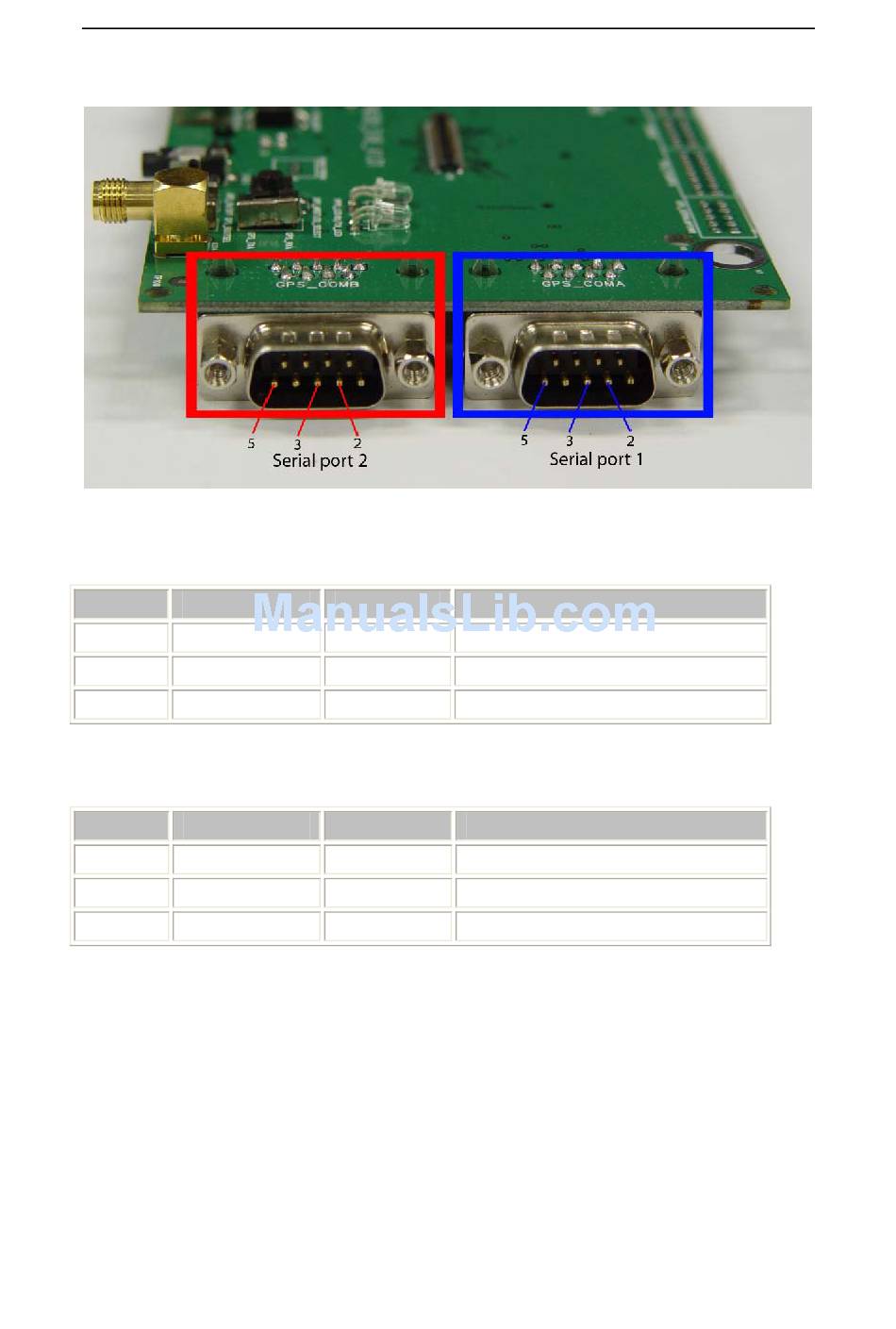

Figure 10: GPS part serial ports
I/O
O Transmit data
I Receive data
GND
I/O
O Transmit data
I Receive data
GND
