SIM508 EVB User Guide

3.2 Audio interface

Headset interface:
Pin Signal
1 MIC1P
2 SPK1P
3 SPK1N
4 MIC1N
Headphone interface:
Pin Signal
5 MIC2P&SPK2P
SIM508-EVB_UGD_V1.01

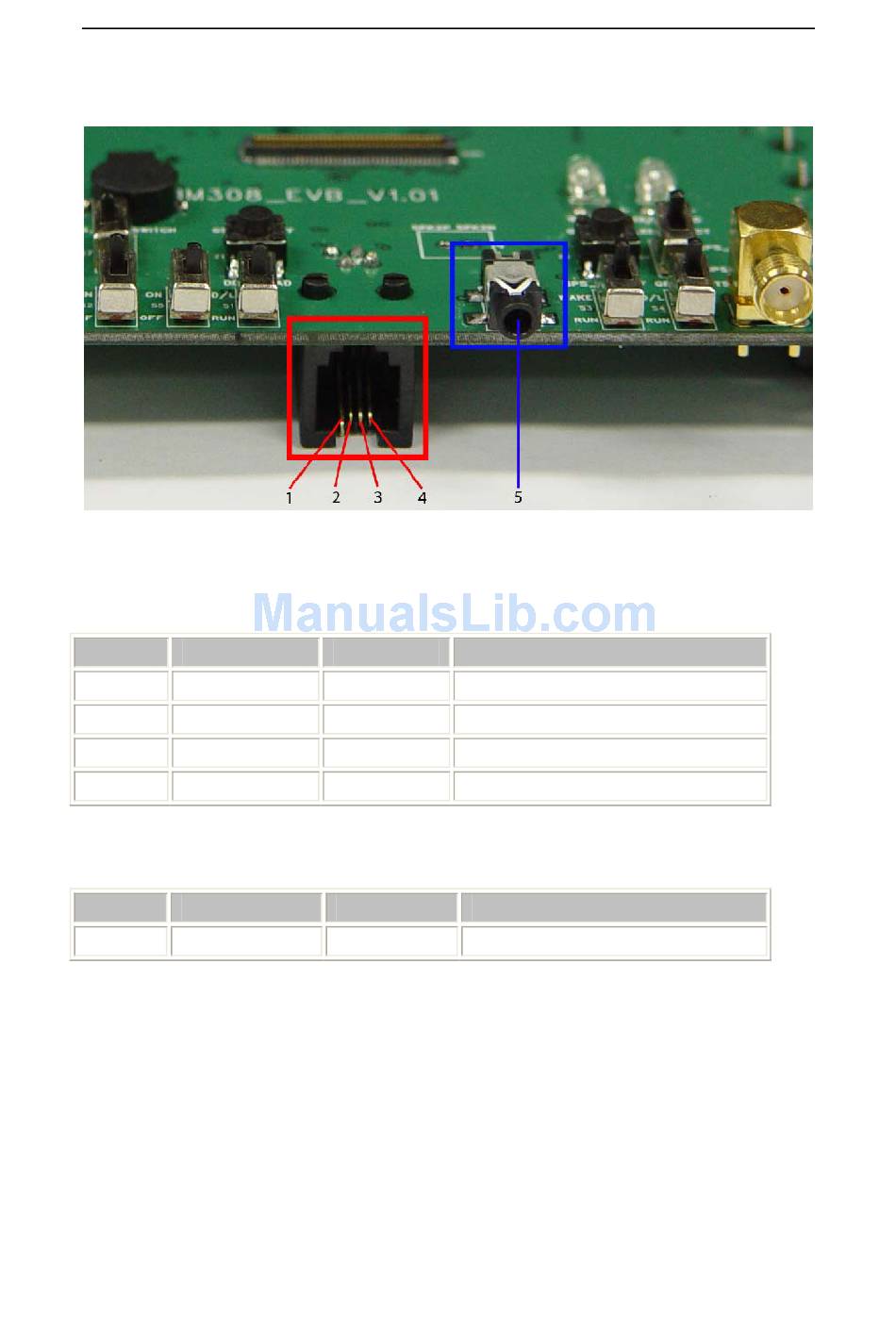

Figure 5: Audio interface
I/O
I Positive microphone input
O Positive microphone input
O Negative microphone input
I Negative microphone input
Input/Output
I/O Auxiliary positive input and output
Page 9 of 25
SIMCOM
Description
Description
