Summary of Contents for Wharfedale Pro DP-4035

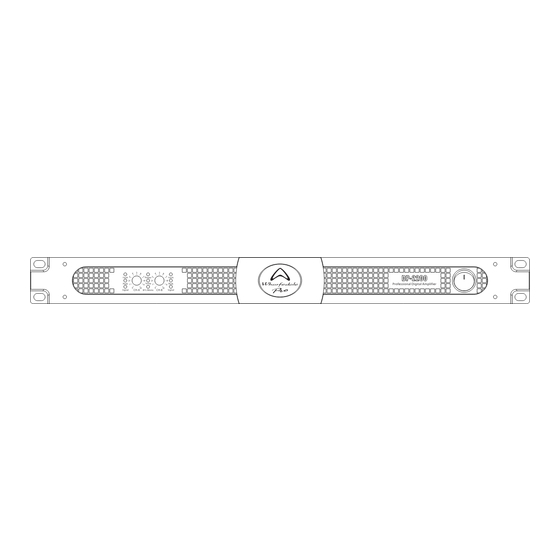

- Page 1 DP SERIES Professional Power Amplifier OPERATINGMANUALANDUSERGUIDE www.wharfedalepro.com...
-
Page 3: Table Of Contents
FEATURES ....................3 FRONT PANEL FEATURES AND CONTROLS .......... 4 REAR PANEL FEATURES AND CONTROLS ..........5 QUICK START GUIDE ................6 DIMENSIONS ..................... 7 WIRING DIAGRAMS .................. 8 POWER CONSUMPTION AND HEAT............11 GAIN AND SENSITIVITY............12 SPECIFICATION................13 WHARFEDALE PRO LIMITED WARRANTY..........16... -
Page 4: Important Warnings & Safety Instructions
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS 1. Read these instructions 2. Follow all instructions 3. Keep these instructions 4. Heed all warnings 5. Do not use this apparatus near water 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 5: Introduction
We take great pride in engineering and building every Wharfedale Pro product and wish to thank you for entrusting us with your sound. -
Page 6: Front Panel Features And Controls
FRONT PANEL FEATURES AND CONTROLS function illustration Icon Icon Protection When there is protection the LED is red. Fault When t he output signal is distorted by more than 1%， Clip o r when the power is compressed, the LED is yellow Peak When t he input signal is greater than "-32dB", the LED Signal LED... -
Page 7: Rear Panel Features And Controls
REAR PANEL – FEATURES AND CONTROLS Rear p anel for:DP-2200 SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W Rear panel for:DP-4035/4065/4100/4120 SUNON SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W... -
Page 8: Quick Start Guide
QUICK START GUIDE 1. Make sure that the power switch is set at the OFF position while making connections to and from the power amplifier 2. Connect all devices in the signal path and ensure that each connection is secure. 3. -
Page 9: Dimensions
DIMENSIONS 485mm 44mm DP-4035 312mm DP-4065 DP-4100 370mm DP-2200 DP-4120 465mm *For reference only... -
Page 10: Wiring Diagrams
WIRING DIAGRAM Stereo Mode SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W SUNON SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W DC12V —8.0W CH-D CH-C CH-B CH-A CH-D... -
Page 11: Bridge Mode
Bridge mode SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W SUNON SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W DC12V —8.0W CH-C CH-A CH-D CH-A CH-C CH-B... -
Page 12: Mono Mode
Mono mode SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W SUNON SUNON SUNON SUNON PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A PMD1204PQBX-A (2).B2220.GN (2).B2220.GN (2).B2220.GN (2).B2220.GN DC12V —8.0W DC12V —8.0W DC12V —8.0W DC12V —8.0W CH-C CH-A CH-D CH-A CH-C CH-B... -
Page 13: Power Consumption And Heat
Test signal: Pink Noise, bandwidth limited from 22Hz to 22kHz 1/8 power is typical of program material with occasional clipping. Refer to these figures for most applications. 1/3 power represents program material with extremely heavy clipping. DP-4035 Thermal Dissipation Line Current(A) Power(W) -
Page 14: Gain And Sensitivity
The user can set the power amplifier's sensitivity through the switch on the back panel, so as to match with the third party devices. 26dB,29dB, 32dB,35dB, 38dB,41dB are selectable. Input signal: 1kHz sine wave, Amplitude value is RMS. GAIN(dB) DP-4035 DP-4065 DP-4100 DP-4120 DP-2200 2.65V... -
Page 15: Specification
SPECIFICATION Model Name DP-4035 DP-4065 Stereo Power Output 8 ohms 4x350W 4x650W 4 ohms 4x595W 4x1100W Bridged Mono Output 16 ohms 2x700W 2x1300W 8 ohms 2x1190W 2x2200W Input Sensitivity & impedance Sensitivity selectable 1Vrms/32dB/26dB selectable 38/35/32/29dB Balanced XLR input 20Kohms... - Page 16 SPECIFICATION Model Name DP-4100 DP-4120 Stereo Power Output 8 ohms 4x1000W 4x1200W 4 ohms 4x1700W 4x2040W Bridged Mono Output 16 ohms 2x2000W 2x2400W 8 ohms 2x3400W 2x4080W Input Sensitivity & impedance Sensitivity selectable 38/35/32/29dB selectable 41/38/35/32dB Balanced XLR input 20Kohms 20Kohms Maximum Input Level 22dBu (9.7Vrms)
- Page 17 SPECIFICATION Model Name DP-2200 Stereo Power Output 8 ohms 2x2000W 4 ohms 2x3400W Bridged Output 16 ohms 1x4000W 8 ohms 1x6800W Input Sensitivity & impedance Sensitivity selectable 41/38/35/32dB Balanced XLR input 20Kohms Maximum Input Level 22dBu (9.7Vrms) Slew Rate >50V / us Crosstalk <-90dB >112dB...
-
Page 18: Wharfedale Pro Limited Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 20 Wharfedale Professional IAG House, 3/4 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 204 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
