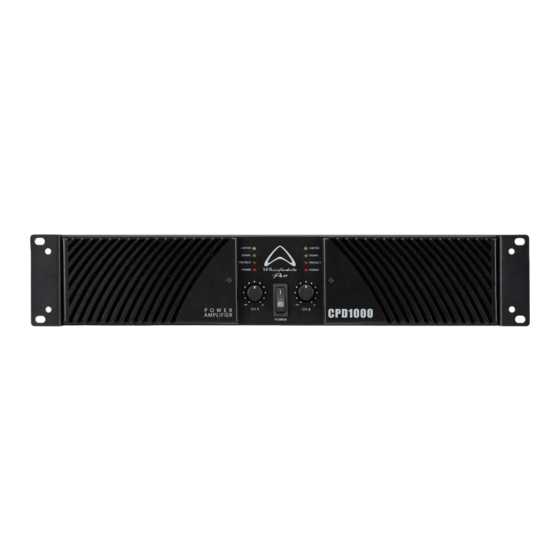

- Page 1 CPD SERI ES Professional Power Ampli昀椀er O PE RA TING MANUAL AND USE R G UIDE www.wharfedalepro.com...
-
Page 2: Table Of Contents
TABLE O F CO NTE NTS TABLE OF CONTENTS ................1 IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ......2 INTRODUCTION ..................3 ABOUT THE CPD SERIES ............... 3 FEATURES ....................3 FRONT PANEL FEATURES AND CONTROLS ........4 REAR PANEL FEATURES AND CONTROLS ........... 4 OPERATING MODE SWITCHES .............. -
Page 3: Important Warnings & Safety Instructions
IMPO RTANT WARNING S & SAFE TY INSTRUCTIO NS 1. Read these instructions 2. Follow all instructions 3. Keep these instructions 4. Heed all warnings 5. Do not use this apparatus near water 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 4: Introduction
We take great pride in engineering and building every Wharfedale Pro product and wish to thank you for entrusting us with your sound. -
Page 5: Front Panel Features And Controls
FRO NT PANE L FE ATURE S AND CO NTRO LS 1. LIMITER LED: Illuminates when the ampli昀椀er is being driven into clipping. 2. SIGNAL LED: Indicates presence of signal on the channel. 3. PROTECT LED: Illuminates when the ampli昀椀er is in protect mode due to short circuit, over current or thermal overload. 4. -
Page 6: Operating Mode Switches
Gain control. Set the second channel's Gain control at maximum. The load must be rated for the higher output power. O UTPUT WIRING The CPD Series employ Speakon output connectors. Ensure that only heavy gauge two conductor speaker cables with professionally wired Speakon connectors are used for connection from ampli昀椀er to loudspeaker. -
Page 7: Dimensions
DIME NSIO NS... -
Page 8: Wiring Diagrams
WIRING DIAG RAM... -
Page 9: Specification
SPE CIFICATIO N Model Name CPD1000 CPD1600 Stereo Power Output 8 ohms*2 230W 400W 4 ohms*2 350W 620W Bridged Mono Output 8 ohms 700W 1200W 4 ohms 1000W 1600W Input Sensitivity & impedance 0dBu (0.775Vrms) 0dBu (0.775Vrms) Sensitivity Balanced XLR input 20Kohms 20Kohms 22dBu (9.7Vrms) -
Page 10: Specification
SPE CIFICATIO N Model Name CPD2600 CPD3600 Stereo Power Output 8 ohms*2 650W 870W 4 ohms*2 1000W 1300W Bridged Mono Output 8 ohms 1940W 2590W 4 ohms 2600W 3600W Input Sensitivity & impedance 0dBu (0.775Vrms) 0dBu (0.775Vrms) Sensitivity Balanced XLR input 20Kohms 20Kohms 22dBu (9.7Vrms) -
Page 11: Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 12 Wharfedale Professional IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve speci昀椀cations without notice. All rights reserved © 2014 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
