OPERATION MANUAL
TECHNICAL SUPPORT (800) 814-2028
INSTALLATION &
SMF600
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
FORM 37510 (August 2016)
Advertisement
Table of Contents
Related Manuals for Vulcan-Hart SCALEBLOCKER SMF600
Summary of Contents for Vulcan-Hart SCALEBLOCKER SMF600
- Page 1 WATER FILTER SYSTEM MODELS SMF600 SMF620 SMF600 For additional information on Vulcan-Hart or to locate an authorized parts and service provider in your area, visit our website at www.vulcanequipment.com VULCAN-HART 3600 NORTH POINT BLVD. DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC BALTIMORE, MD 21222 WWW.VULCANEQUIPMENT.COM...
- Page 2 IMPORTANT FOR YOUR SAFETY THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL THIS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
-
Page 3: Table Of Contents
TABLE OF CONTENTS GENERAL ............................4 Water Quality Statement ........................4 Models ............................4 Standard Features .........................5 INSTALLATION ...........................6 Unpacking ............................6 Test the Water ..........................6 Installation Instructions ........................6 Mounting ............................6 Water Connections ........................7 Reversing the Inlet and Outlet ....................8 OPERATION ............................8 Initializing Water Filter ........................8 CLEANING ............................9 Routine Deliming ...........................9 MAINTENANCE ..........................9... -
Page 4: General
INSTALLATION, OPERATION AND CARE OF SCALEBLOCKER™ WATER FILTER SYSTEM SAVE THESE INSTRUCTIONS FOR FUTURE USE GENERAL Vulcan water filters are produced with quality workmanship and material. Proper installation, usage and maintenance of your water filter will result in many years of satisfactory performance. It is suggested that you thoroughly read this entire manual and carefully follow all of the instructions provided. -
Page 5: Standard Features

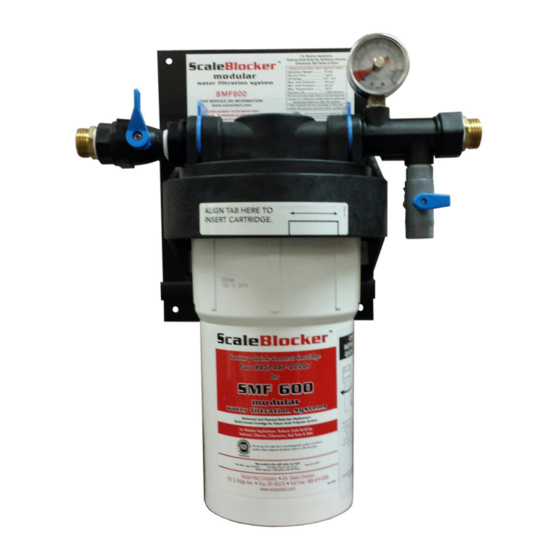

STANDARD FEATURES • Single cartridge scale reduction hollow carbon filter system • Mounting bracket • " Male GHT/ " NPTF inlet, outlet and cold water condensate connections. • Main shutoff valve • Test port with valve • Pressure gauge • Class 5 recyclable cartridge •... -
Page 6: Installation
INSTALLATION UNPACKING This filter system was inspected before leaving the factory. The carrier assumes full responsibility for the safe delivery upon acceptance of the shipment. Check for possible shipping damage immediately after receipt. If the filter system is found to be damaged, complete the following steps: 1. -
Page 7: Water Connections
WATER CONNECTIONS 1. Use appropriate " fittings, plumbing, or hoses to allow for a flow rate of filter. Do not over tighten fittings into plastic parts! Backhold the fittings with a wrench or slip joint pliers! Warranty will be voided if parts are cracked and/or broken due to misuse and/or over-tightening! Use only approved fittings. -
Page 8: Reversing The Inlet And Outlet
Reversing the Inlet and Outlet NOTE: When reversing the water connections on the filtration system you must keep all parts on the original line on the filter head. NOTE: Once the blue retaining ring has been removed pull the section straight out to remove it. 1. -
Page 9: Cleaning
CLEANING ROUTINE DELIMING Hardness Steam Generator (Grains) Deliming Schedule When ScaleBlocker ® water treatment system is used, preventative maintenance along with cartridge 0 to 5 6 Months replacement must be performed every 6 months. Water 5 to 10 3 Months conditions may require additional deliming, see chart 10 to 15 Monthly... -
Page 10: Replacement Cartridge Filter Kits
REPLACEMENT CARTRIDGE FILTER KITS Equipment Dealer Orders • SMF600-PMKIT – 7,500 Rated Capacity (Gallons) • SMF620-PMKIT – 12,000 Rated Capacity (Gallons) Service Parts Orders • 00-857487-00600 – 7,500 Rated Capacity (Gallons) • 00-857487-00620 – 12,000 Rated Capacity (Gallons) CARTRIDGE CHANGING INSTRUCTIONS 1. -
Page 11: Leaks
LEAKS All Water Filter Systems are factory pressure tested. It is normal to experience leaks of a few drops of water at the various O-Ring sealed junction points at initial start-up only. This will subside after a few minutes as soon as the O-Rings become under pressure and seat properly. For any leaks lasting longer than this, or those that are more than a few drops, please see the troubleshooting points below. -
Page 12: Warranty Registration
SERVICE To obtain service and parts information concerning this unit, contact the Vulcan-Hart Service Agency in your area, or contact the Vulcan-Hart Service Department at the address or phone number shown on the front cover of this manual. Parts and service are also available at www.vulcanequipment.com.
