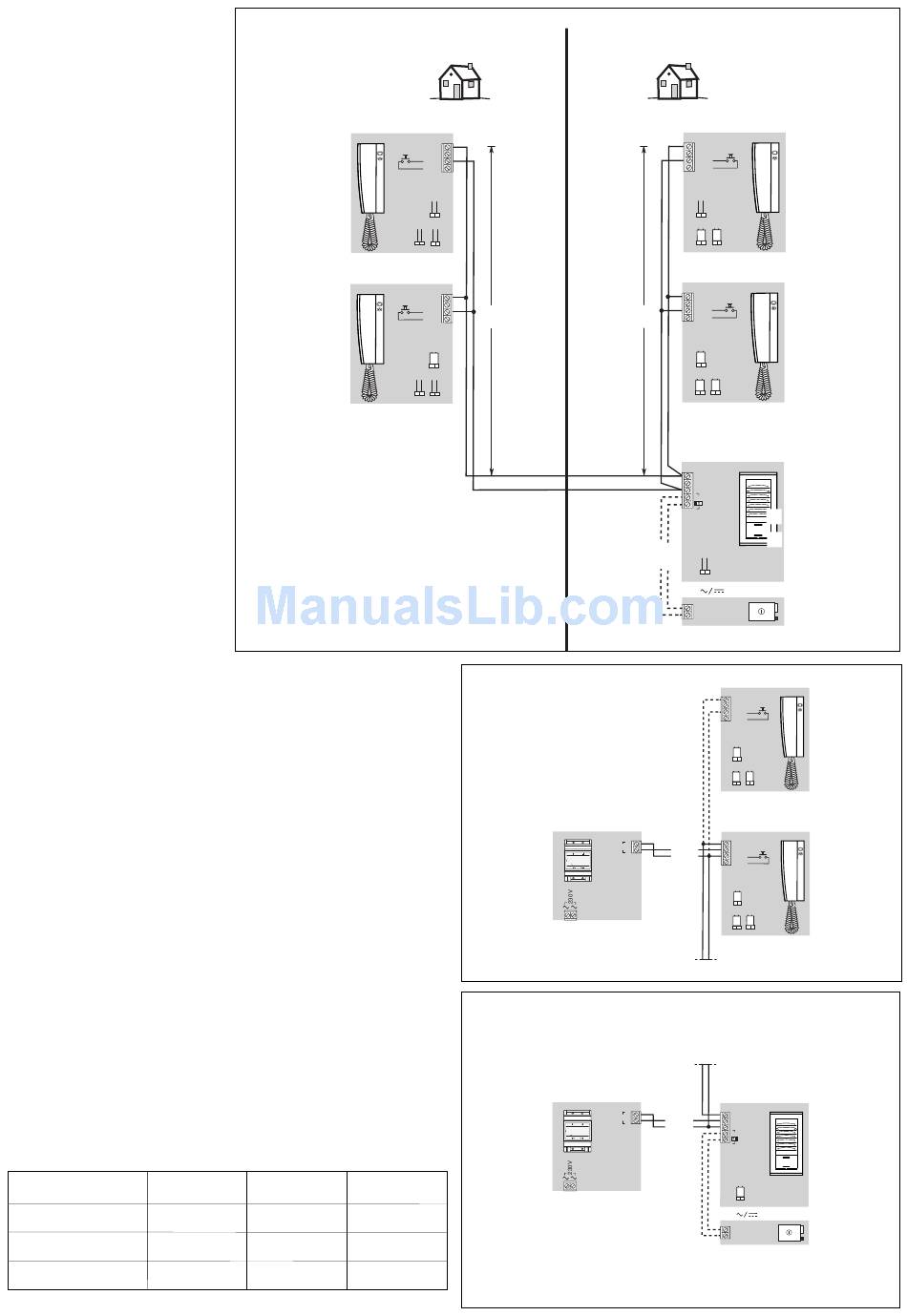

CONFIGURAZIONE BIFAMILIARE A
2 GRUPPI (A e B) INTERCOMUNI-
CANTI.
CONFIGURATION FOR TWO FAMI-
LIES DIVIDED IN TWO GROUPS (A
and B), WITH INTERCOM FACILITY.
TABELLA DISTANZE CON L'ALIMENTATORE BPT

TABLE OF DISTANCES WITH BPT POWER SUPPLIER

La= distanza tra il dispositivo alimentato e la targa
Lb= distanza tra la targa ed l'elettroserratura
Lc= distanza tra l'alimentatore e il dispositivo alimentato
La= distance between powered device and entry panel
Lb= distance between the entry panel and the electric door lock
Lc= distance between the power supplier and the powered device
Sezione dei conduttori
Wire cross-section
≥0,22 mm 2
0,5 mm 2
1 mm
2
Tab.1
1.
1.
La Lb
100 m
150 m
25 m
B
ARW2
1
L+
+
L–/–
Aux
JP1
JP3 JP2
2 ARW2
L+
+ La
L–/–
Aux
JP1
JP3
JP2
Lc
50 m
A
ARW2
L+
+
L–/–
Aux
JP1
JP2 JP3
ARW2
L+
+
La
L–/–
Aux
JP1
JP2 JP3
AEPW2
L+
+
L–/–
-
Lb
JP4
12V
ARW2
L+
+
L–/–
Aux
JP1
JP2
APSW2 ARW2
Lc
– L+
18V
+ +
+ 18V – L–/–
Aux
230V
JP1
JP2
L+ L–
L+ L–
APSW2
AEPW2
Lc
–
L+
18V
+
+
+ 18V –
L–/–
-
230V
JP4
12V
2.
1
2.
2
1
2
JP3
JP3
