Polycom Vortex EF-IR11 Specifications page 2

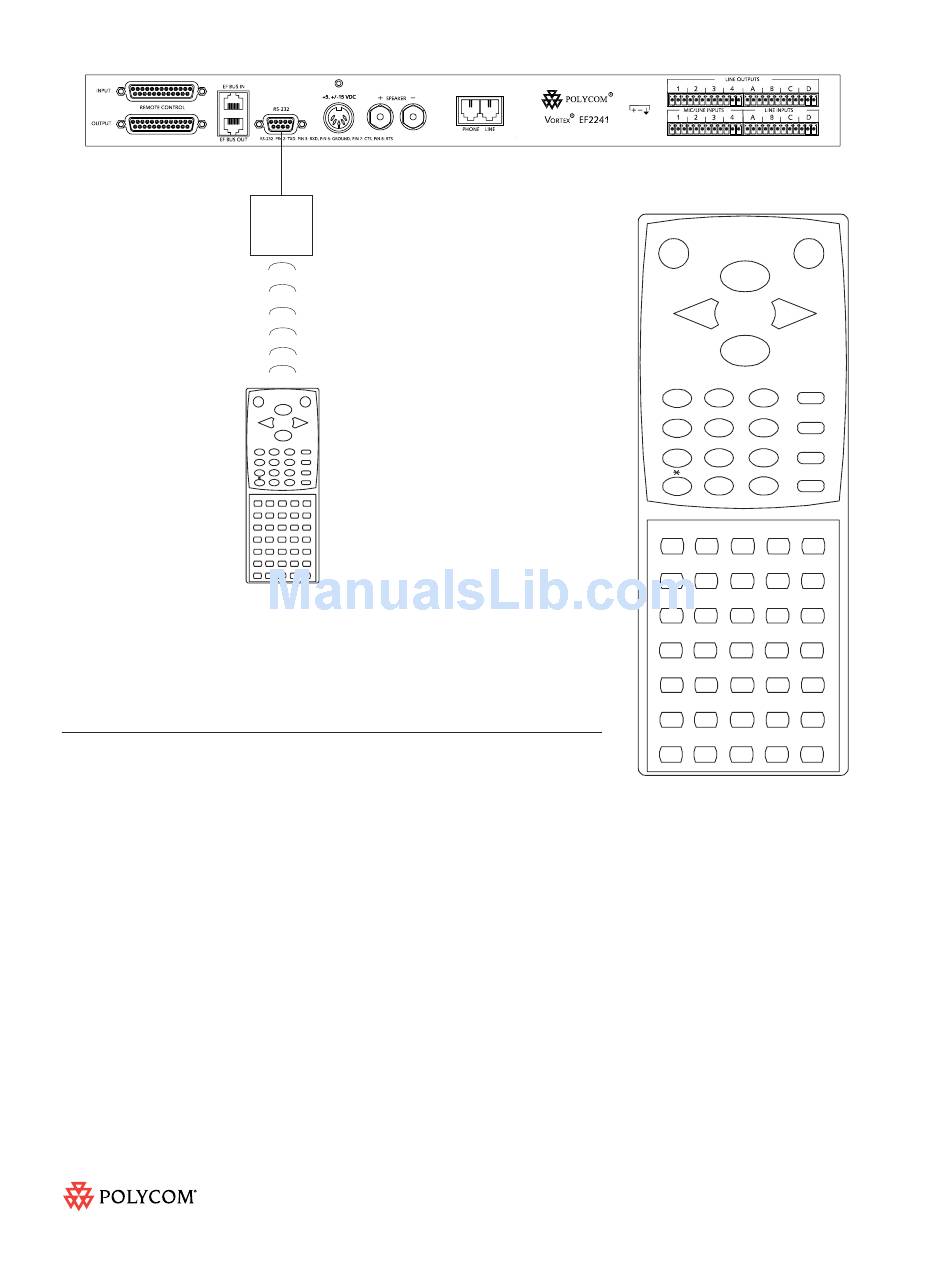

Typical Installation and Button Layout
Polycom Vortex EF-IR11 Technical Specifications
Dimensions - Transmitter
• 7.56" H x 2.25" W x 0.94" D
(19.2 cm x 5.71 cm x 2.38 cm)
Dimensions - Receiver
• 1.00" H x 2.38" W x 2.25" D
(2.54 cm x 6.03 cm x 5.71 cm)
Weight
• 0.57 lb. (0.26 kg) dry, 1 lb. (0.45 kg) shipping
Connectors - Receiver
• RS-232: DB9M with 6' (1.83 m) cable
Power - Transmitter
• 4 AAA batteries; est. life 1 year
Power - Receiver
• External supply (provided); 120 VAC, 60 Hz
Polycom, Inc.:
www.polycom.com
Polycom EMEA:
Polycom Hong Kong Ltd.:
EF-IR11
Receiver
Phone Off Phone On
Mute On
Volume - Volume +
Mute Off
1 2 ABC 3 DEF Flash
4 GHI 5 JKL 6 MNO Redial
Speed
7 PQRS 8 TUV 9 WXYZ
Dial 1
Speed
0 #
Dial 2
User User User User User
Macro 0 Macro 1 Macro 2 Macro 3 Macro 4
User User User User User
Macro 5 Macro 6 Macro 7 Macro 8 Macro 9
User User User User User
Macro 10 Macro 11 Macro 12 Macro 13 Macro 14
User User User User User
Macro 15 Macro 16 Macro 17 Macro 18 Macro 19
User User User User User
Macro 20 Macro 21 Macro 22 Macro 23 Macro 24
User User User User User
Macro 25 Macro 26 Macro 27 Macro 28 Macro 29
User User User User User
Macro 30 Macro 31 Macro 32 Macro 33 Macro 34
Transmitter Frequency
• 38 kHz Infrared
Receiver Data
• Baud Rate 9600 bps; no flow control
System Range
• Maximum 50' (15.2 m) between transmitter and receiver
Angle of Acceptance
• 90 - 120 degrees
4750 Willow Road, Pleasanton, CA 94588 (T) 1.800.POLYCOM (765.9266) for North America only.
For North America, Latin America and Caribbean (T) +1.925.924.6000, (F) +1.925.924.6100
270 Bath Road, Slough, Berkshire SL1 4DX, (T) +44 (0)1753 723000, (F) +44 (0)1753 723010
Polycom Hong Kong Ltd., Rm 1101 MassMutual Tower, 38 Gloucester Road, Wanchai, Hong Kong, (T) +852.2861.3113, (F)+852.2866.8028
Part No. 3726-80109-001 Rev. 07/03
Phone Off Phone On
Mute On
Volume - Volume +
Mute Off
1 2 ABC 3 DEF Flash
4 GHI 5 JKL 6 MNO Redial
Speed
7 PQRS 8 TUV 9 WXYZ
Dial 1
Speed
0 #
Dial 2
User User User User User
Macro 0 Macro 1 Macro 2 Macro 3 Macro 4
User User User User User
Macro 5 Macro 6 Macro 7 Macro 8 Macro 9
User User User User User
Macro 10 Macro 11 Macro 12 Macro 13 Macro 14
User User User User User
Macro 15 Macro 16 Macro 17 Macro 18 Macro 19
User User User User User
Macro 20 Macro 21 Macro 22 Macro 23 Macro 24
User User User User User
Macro 25 Macro 26 Macro 27 Macro 28 Macro 29
User User User User User
Macro 30 Macro 31 Macro 32 Macro 33 Macro 34
©2003 Polycom, Inc. All rights reserved.
Polycom, the Polycom logo, and Vortex are registered trademarks and The Polycom
Office is a trademark of Polycom, Inc. in the U.S. and various countries. All other
trademarks are the property of their respective companies. Specifications subject to
change without notice. For Architect's and Engineer's Specifications, please visit
Polycom.com, or contact the Installed Voice Business Group at 1.770.641.4400.
