Installing and Removing the Flash Memory Card in an ASP

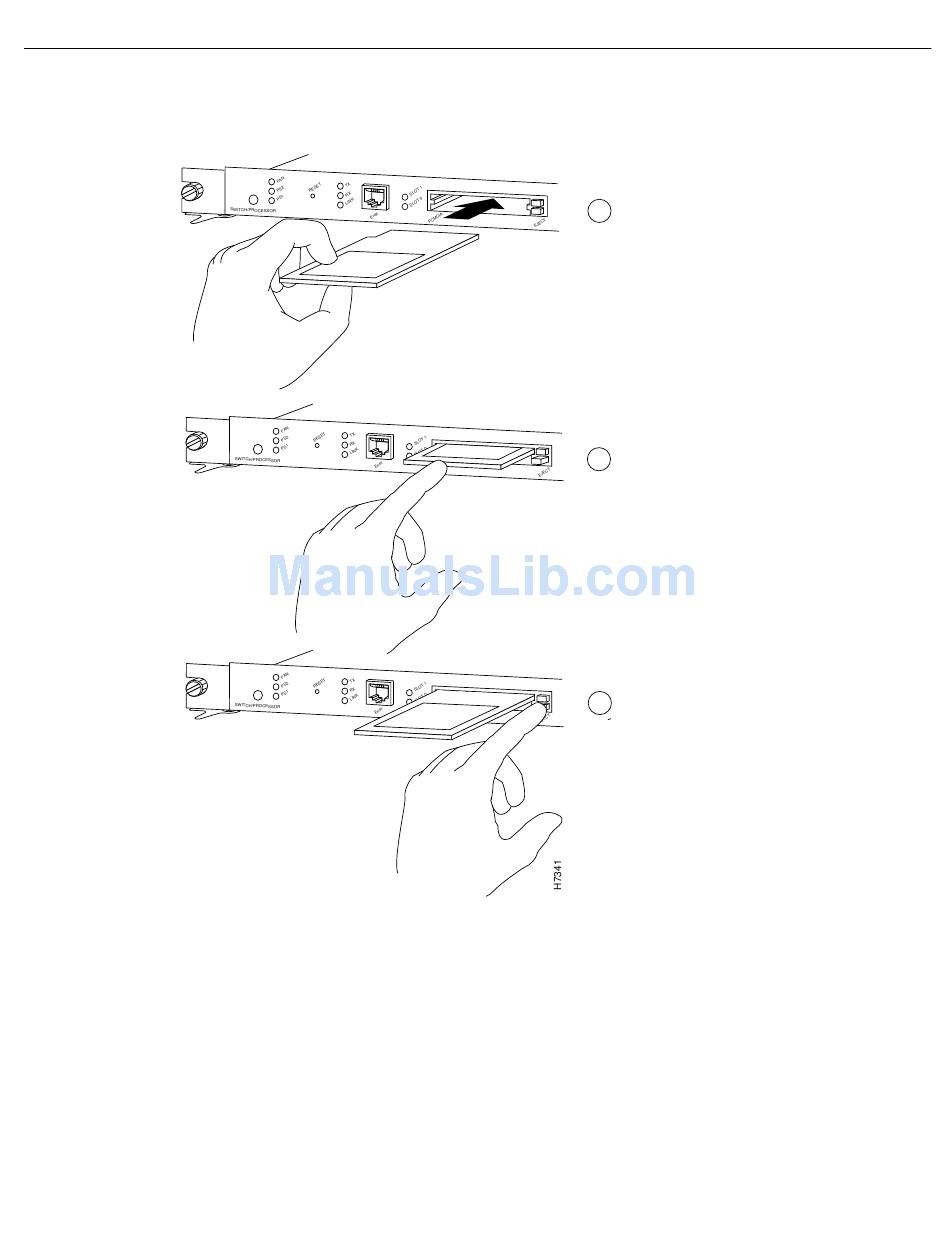

Figure 2

Step 2

Step 3

Step 4

4 LightStream 1010 ATM Switch PCMCIA Flash Memory Card Installation Guide

Installing and Removing a Flash Memory Card

Insert the card into the appropriate slot until the card completely seats in the connector at

the back of the slot and the eject button pops out toward you (see Figure 2–b). Note that the

card does not insert all the way inside the ASP; a portion of the card remains outside of the

slot. Do not attempt to force the card past this point.

To eject the card, press the appropriate ejector button until the card is free of the connector

at the back of the slot. See Figure 2–c.

Remove the card from the slot and place it in an antistatic bag to protect it.
