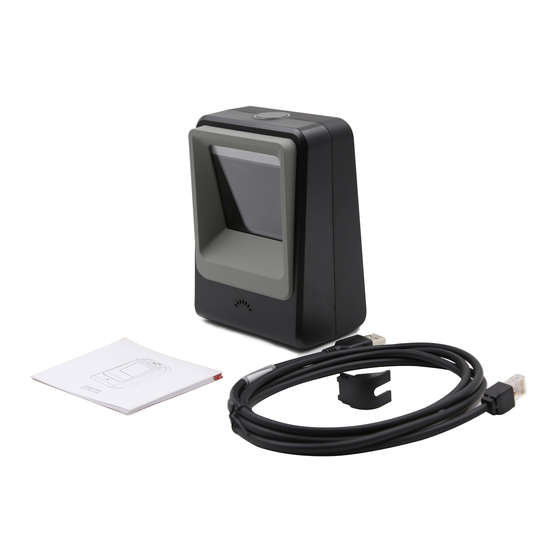

Teemi TMSL-60 User Manual

2d barcode reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

2D Barcode Reader User Guide
V 1.2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMSL-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teemi TMSL-60

Summary of Contents for Teemi TMSL-60

  • Page 1 2D Barcode Reader User Guide V 1.2.1...

  • Page 2: Table Of Contents

    Table of Contents Getting Started ..................................3 1.1 About This Guide ....................................3 1.2 Barcode Scanning ....................................3 1.3 Factory Defaults ....................................... 3 1.4 Firmware Version Number ................................... 3 Communication Interfaces ............................... 4 2.1 TTL-232 Cable Select (Applicable to 3110) ............................ 4 2.2 TTL-232 Interface ....................................
  • Page 3 5.2.1 Code 128 ......................................22 5.2.2 EAN-8 ........................................ 23 5.2.3 EAN-13 ......................................25 5.2.4 UPC-E ........................................ 27 5.2.5 UPC-A ....................................... 30 5.2.6 Interleaved 2 Of 5 ..................................33 5.2.7 Matrix 2 Of 5 ....................................34 5.2.8 Industrial 2 Of 5 .................................... 35 5.2.9 Code 39 ......................................

  • Page 4: Getting Started

    1 Getting Started About This Guide This guide provides programming instructions for the TEEMI 2D Barcoder Reader. Users can configure the TEEMI 2D Barcoder Reader by scanning the programming barcodes included in this manual. Barcode Scanning Powered by area-imaging technology and TEEMI 2D Barcoder Reader patented “Hercules”...

  • Page 5: Communication Interfaces

    2 Communication Interfaces The TEEMI 2D Barcoder Reader provides a TTL-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the TTL-232 or USB interface.

  • Page 6: Baud Rate

    Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. 2400 4800 9600 19200 38400 57600 115200 (Default)

  • Page 7: Data Bit & Parity Check & Stop Bit

    Data Bit & Parity Check & Stop Bit Note: some products only allows default configuration (None Parity/8 Data Bits/1 Stop Bit), configuration command: 0607032; If products do not support multiple configurations, scanning the bar code of non-default configuration would error beep. None Parity /8 Data Bits/1 Stop Bit (Default) None Parity /7 Data Bits/1 Stop Bit None Parity /7 Data Bits/2 Stop Bits...

  • Page 8: Usb Interface (Applicable To 3110)

    USB Interface (Applicable to 3110) Before using USB Communication interface, scanner must be set as USB cable. USB Cable USB HID-KB When you connect the engine to the Host via a USB connection, you can enable the USB H ID -KB feature by scanning the barcode below.

  • Page 9: Usb Country Keyboard Types

    USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is 1-U.S. keyboard. 1 – U.S. (Default) 2 – UK 3 – Denmark 4 – France 5 – Finland 6 – Turkey_F 7 – Italy 8 – Norway 9 –...
  • Page 10 10 – Belgium 11 – Bosnia 12 – Brazil 13 – Croatia 14 – Czech 15 – Dutch 16 – Estonia 17 – Germany 18 – Greek 19 – Hungary...
  • Page 11 20 – Irish 21 – Latvia 22 – Lithuania 23 – Macedonia 24 – Spain 25 – Poland 26 – Portugal 27 – Romania 28 – Russia 29 – Japan...

  • Page 12: Convert Case

    Convert Case Scan the appropriate barcode below to convert barcode data to your desired case. No Case Conversion (Default) Convert All To Upper Case Convert All To Lower Case Exam ple: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.

  • Page 13: General Configuration

    3 General Configuration Trigger Mode If the Trigger Mode is enabled, you could activate the scanner by providing an external hardware trigger, or using a serial trigger command. When in manual trigger mode, the scanner scans until a barcode is read, or until the hardware trigger is released.

  • Page 14: Presentation Mode (Applicable To 31/41/51/81Xx Series)

    Presentation Mode (Applicable to 31/41/51/81XX series) This set the scanner to work in presentation mode. Presentation Mode – Normal Presentation Mode - Cellphone Presentation Mode – Continue Scan Inverse color OFF (Default) Only Inverse ON Inverse And Normal Both ON...

  • Page 15: Illumination

    Illumination Manual Trigger Mode Illumination setting for 71/81XX series. High Level Illumination (Default) Middle Level Illumination Low Level Illumination Illumination OFF Manual Trigger Mode Illumination setting for 31/41/51XX series. Illumination Level 4 (Default) Illumination Level 3 Illumination Level 2 Illumination Level 1...

  • Page 16: Good Read Beeper

    Good Read Beeper ON (Default) Good Read Beeper Volume Middle High (Default) Good Read Beeper Duration Normal (Default) Short...

  • Page 17: Good Read Beeper Tone

    Good Read Beeper Tone Low Frequency Medium Frequency (Default) Medium High Frequency High Frequency Manual Trigger Mode Reread Delay No Delay (Default) Delay 500 MS Delay 2000 MS...

  • Page 18: Presentation Mode Reread Delay

    3.10 Presentation Mode Reread Delay Delay 500 MS (Default) Delay 750 MS Delay 1000 MS...

  • Page 19: Data Formatting

    4 Data Formatting General Configuration Add CR Add LF Add CRLF Add TAB...

  • Page 20: Add Prefix

    Add Prefix Set Custom Prefix Save Not Save To set a customer prefix, scan the Set Custom Prefix barcode and the numeric barcodes which representing the hexadecimal values of a desired prefix, and then scan the Save barcode. Refer to Appendix 2: ASCII Table for hexadecimal values of characters.

  • Page 21: Add Suffix

    Add Suffix Set Custom Suffix Save Not Save To set a customer suffix, scan the Set Custom Suffix barcode and the numeric barcodes which representing the hexadecimal values of a desired suffix, and then scan the Save barcode. Refer to Appendix 2: ASCII Table for hexadecimal values of characters.

  • Page 22: Symbologies

    5 Symbologies 5.1 General Setting 5.1.1 Restore Symbology Default Setting Symbologies Enable: Code 128, Code 39, UPC, EAN, Interleaved 2 of 5, Code 93, Coda Bar, GS1-128, DataMatrix, PDF417, QR, Maxi Restore Symbology Default Code, Aztec. 5.1.2 Optimize Performance for Retail Use Case Make for optimize scan performance in most retail barcode scan use case.

  • Page 23: Symbologies

    5.2 1D Symbologies 5.2.1 Code 128 Enable/Disable Code 128 Enable Code 128 (Default) Disable Code 128 Message Length Message length can be set to the maximum value or minimum value. The value between the maximum and the minimum is valid. The maximum value and minimum value can be set using “Programming Command”.

  • Page 24: Ean-8

    5.2.2 EAN-8 Enable/Disable EAN-8 Enable EAN-8 (Default) Disable EAN-8 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the accuracy of the data. Transmit EAN-8 Check Digit (Default) Do Not Transmit EAN-8 Check Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one.
  • Page 25 Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (Default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (Default) Add-On Code Required EAN-8 Add-On Code Required EAN-8 Add-On Code Not Required (Default) ENA/JAN-8 Addenda Separator When this feature is enabled, there is a space between barcode and addenda. When this feature is disabled, there is no space.

  • Page 26: Ean-13

    5.2.3 EAN-13 Enable/Disable EAN-13 Enable EAN-13 (Default) Disable EAN-13 Transmit Check Digit Transmit EAN-13 Check Digit (Default) Do Not Transmit EAN-13 Check Digit Add-On Code Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (Default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (Default)
  • Page 27 Add-On Code Required EAN-13 Add-On Code Required EAN-13 Add-On Code Not Required (Default) ENA/JAN-13 Addenda Separator When this feature is enabled, there is a space between barcode and addenda. When this feature is disabled, there is no space. Enable ENA/JAN-13 Addenda Separator (Default) Disable ENA/JAN-13 Addenda Separator ISBN Translate When enable this feature and is scanned, ENA-13 Book land symbols are translated into their equivalent...

  • Page 28: Upc-E

    5.2.4 UPC-E Enable/Disable UPC-E0/E1 Enable UPC-E0 (Default) Disable UPC-E0 Enable UPC-E1 Disable UPC-E1 (Default) UPC-E0 Check Digit Enable UPC-E0 Check Digit (Default) Disable UPC-E0 Check Digit...
  • Page 29 UPC-E0 Expand UPC-E0 expand expands the UPC-E code to the 12 digits, UPC-A format. Enable UPC-E0 Expand Disable UPC-E0 Expand (Default) UPC-E0 Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda. Enable UPC-E0 Required Disable UPC-E0 Required (Default) UPC-E0 Addenda Separator Enable UPC-E0 Separator (Default)
  • Page 30 UPC-E0 Number System The number system digit of UPC symbol is normally transmitted at the beginning of the scanned data, but the unit can be programmed so it will be not transmitted. Enable UPC-E0 Number System (Default) Disable UPC-E0 Number System UPC-E0 Addenda Enable 2 Digit Addenda Disable 2 Digit Addenda (Default)

  • Page 31: Upc-A

    5.2.5 UPC-A Enable/Disable UPC-A Enable UPC-A (Default) Disable UPC-A UPC-A Check Digit Enable UPC-A Check Digit (Default) Disable UPC-A Check Digit UPC-A Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda. Enable UPC-A Required Disable UPC-A Required (Default)
  • Page 32 UPC-A Addenda Separator Enable UPC-A Separator (Default) Disable UPC-A Separator UPC-A: Number System The number system digit of UPC symbol is normally transmitted at the beginning of the scanned data, but the unit can be programmed so it will be not transmitted. Enable UPC-A Number System (Default) Disable UPC-A Number System...
  • Page 33 UPC-A: Addenda Enable 2 Digit Addenda Disable 2 Digit Addenda (Default) Enable 5 Digit Addenda Disable 5 Digit (Default)

  • Page 34: Interleaved 2 Of 5

    5.2.6 Interleaved 2 Of 5 Enable/Disable Interleaved 2 Of 5 Enable Interleaved 2 Of 5 (Default) Disable Interleaved 2 Of 5 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid.

  • Page 35: Matrix 2 Of 5

    5.2.7 Matrix 2 Of 5 Enable/Disable Matrix 2 Of 5 Enable Matrix 2 Of 5 Disable Matrix 2 Of 5 (Default) Message Length Message length can be set to the maximum value, minimum value. The value is valid between the maximum and the minimum.

  • Page 36: Industrial 2 Of 5

    5.2.8 Industrial 2 Of 5 Enable/Disable Industrial 2 Of 5 Enable Industrial 2 Of 5 Disable Industrial 2 Of 5 (Default) Message Length Message length can be set to the maximum value, minimum value. The value is valid between the maximum and the minimum.

  • Page 37: Code 39

    5.2.9 Code 39 Enable/Disable Code 39 Enable Code 39 (Default) Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do Not Transmit Start/Stop Character (Default) Code 39 Check Character No Check Char (Default) Validate And Transmit Validate No Transmit...
  • Page 38 Code 39 Append This function allows the scanner to append several Code 39 barcode data together before transmitting to host. When the scanner encounters a Code 39 barcode with append character (ex. Space character), it buffers the data until it reads a Code 39 barcode which does not have append character. Then the data is transmitted in the order that the barcodes were read.

  • Page 39: Coda Bar

    5.2.10 Coda Bar Enable/Disable Coda Bar Enable Coda Bar (Default) Disable Coda Bar Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.
  • Page 40 Transmit Start/Stop Character Transmit Start/Stop Character Do Not Transmit Start/Stop Character (Default) Coda bar Check Character No Check Char (Default) Validate And Transmit Validate No Transmit...

  • Page 41: Code 93

    5.2.11 Code 93 Enable/Disable Code 93 Enable Code 93 (Default) Disable Code 93 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 42: Gs1-128

    5.2.12 GS1-128 Enable/Disable GS1-128 Enable GS1-128 (Default) Disable GS1-128 Message Length Message length can be set to the maximum value, minimum value. The data between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 43: Msi

    5.2.13 MSI Enable/Disable MSI Enable MSI Disable MSI (Default) Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.
  • Page 44 MSI Check Character Validate Type10 Transmit Validate 2 Type10 No Transmit (Default) Validate Type10 Then Type11 Char NO Transmit Validate Type10 Then Type11 Char Transmit Validate 2 Type10 Char Transmit Validate 2 Type10 Char No Transmit Disable MSI Check...

  • Page 45: Code 11

    5.2.14 Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11 (Default) Code11 Check Digit(s) One Check Digit Two Check Digits (Default)

  • Page 46: Symbologies

    5.3 2D Symbologies 5.3.1 PDF 417 Enable/Disable PDF 417 Enable PDF 417 (Default) Disable PDF 417 Enable/Disable Micro PDF 417 Enable Micro PDF 417 Disable Micro PDF 417 (Default) Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum.

  • Page 47: Qr Code

    5.3.2 QR Code Enable/Disable QR Code Enable QR Code (Default) Disable QR Code Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum is valid. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 48: Data Matrix

    5.3.3 Data Matrix Enable/Disable Data Matrix Enable Data Matrix (Default) Disable Data Matrix Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 49: Maxi Code

    5.3.4 Maxi code Enable/Disable Maxi code Enable Maxi Code Disable Maxi Code (Default) Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 50: Aztec

    5.3.5 Aztec Enable/Disable Aztec Enable Aztec (Default) Disable Aztec Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 51: Hanxin

    5.3.6 Hanxin Enable/Disable Hanxin Enable Hanxin Disable Hanxin (Default) Message Length Message length can be set to the maximum value, minimum value. The data is valid between the maximum and the minimum. The maximum value and minimum value can be set using Programming command. Please check the programming command guide for the detail.

  • Page 52: Postal Symbologies

    5.4 Postal Symbologies 5.4.1 China Postal Code Enable/Disable China Postal Code Enable China Postal Code Disable China Postal Code (Default) 5.4.2 Telepen Enable/Disable Telepen Enable China Telepen Disable China Telepen (Default)

  • Page 53: Appendix

    6 Appendix Appendix 1: AIM ID Table Symbology AIM ID Remark Standard EAN-13 EAN-13 EAN-13 + 2/5-Digit Add-On Code Standard EAN-8 EAN-8 ]E4…]E1… EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code Standard UPC-E UPC-E UPC-E + 2/5-Digit Add-On Code Standard UPC-A UPC-A UPC-A + 2/5-Digit Add-On Code...
  • Page 54 Standard Codebar Codebar Transmit check digit after parity check Do not transmit check digit after parity check Code 93 Standard Code 93 One check digit MOD11; transmit check digit Two check digits, MOD11/MOD11; transmit check digit Code 11 Do not transmit check digit after parity check No parity check GS1-DataBar (RSS) Standard GS1-DataBar...
  • Page 55 QR Code 2005,ECI excluded,FNC1 is the 2nd character after the start character QR Code 2005, ECI included, FNC1 is the 2nd character after the start character Referen ce : ISO/IEC 15424:2008 Information technology – Automatic identification and data capture techniques – Data Carrier Identifiers (including Symbology Identifiers).

  • Page 56: Appendix 2: Ascii Table

    Appendix 2: ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3)
  • Page 57 Char " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol)
  • Page 58 Char (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent)
  • Page 59 Char (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 60: Appendix 3: Digit Barcodes

    Appendix 3: Digit Barcodes...
