Teemi TMCT-10 Overview

1

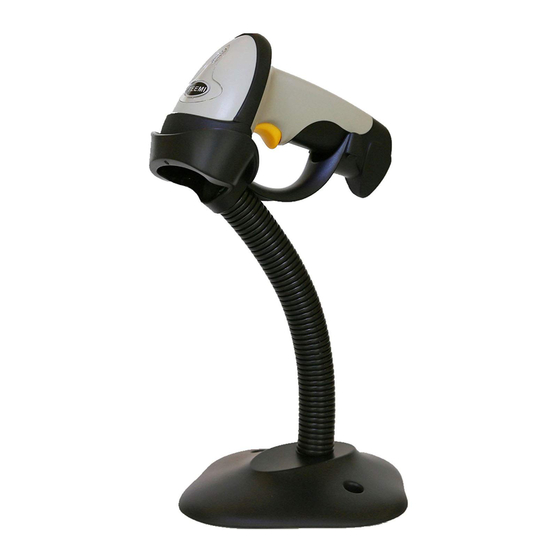

TMCT-10 Barcode Scanner Overview
TMCT-10 integrates high-performance processor and decoding board, it has fast decoding, high-precision reading ability, and high anti-interference ability. It can
easily read barcodes on paper, goods and other media. The DOF has greatly improvement with similar products, also it has highly scanning speed, powerful
reading ability with high accuracy.

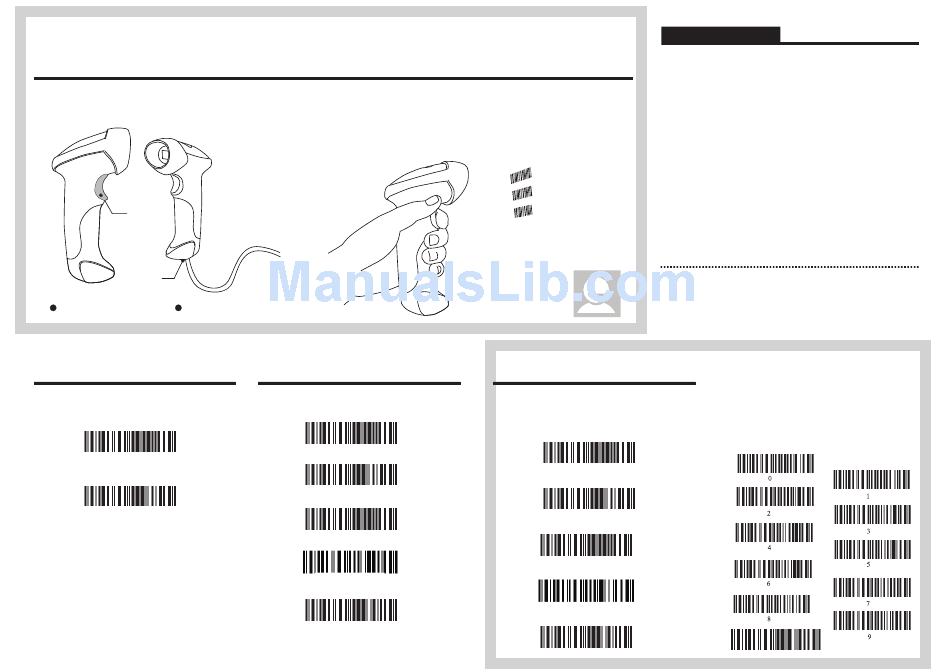

Appearance:
Power
USB Port
Bluetooth Wireless mode USB Wired mode
2
Pairing with Windows XP /
Windows Mobile / Wince
1. Hold the trigger button pressed for at least 2 seconds to switch the scanner on.
2. Read 'Enter Setup' barcode, the indicator becomes purple
Enter Setup
3. Read 'Factory Reset' barcode, the indicator becomes red
Factory Reset
4. Press the trigger for 3 seconds to switch off again, restart the scanner like
described under step 1.
5. Open the Bluetooth device manager on your PC, continue pairing by clicking
"add a new device".
6. Click "next" to search for the scanner in pairing mode.
7. Your system should now find the scanner, after a few seconds, the scanner
should show up under devices that can be paired as "CT10xxxxxxxx".
8. Connect the device with the "CT10xxxxxxxx" entry by double-clicking it or
clicking "next" after highlighting it.
9. When the pairing request dialogue shows up, please choose "enter the
pairing code of the device", then input the code "10010" and click "next".
10. If the pairing was successful, an icon will show up in your status bar. After
approximately 5 seconds, the audiovisual feedback of the scanning device
should indicate that the connection is established, LED blinking blue.
Functions Setup:
If you like to configure and modify one or a couple of the TMCT-10 scanner's
properties, you may do so by following the scanning steps shown below:
"Enter setup mode" -> [configuration barcode(s)] -> "Exit with save".
3
Pairing with Windows 7/8
1. Press the trigger for 2 seconds to start the scanner.
2. Scan "Enter setup mode" barcode, the LED should be blinking violet.
Enter Setup
3. Scan "Reset factory settings" barcode, after 2 seconds, the LED should be blinking red.
Factory Reset
4. Scan "Enter setup mode" barcode, the LED should be blinking violet again.
Enter Setup
4. Read 'One-click Win7/8 Keyboard Connection' barcode
One-click Win7/8 Keyboard Connection
5. Read 'Exit with Save' barcode
Exit with Save
6. Restart TMCT-10 barcode scanner
7. Turn on the Bluetooth in Win7/8 OS, search for TMCT-10
8. Input the paring code 10010 in the Bluetooth pairing request dialog
9. Click 'Next' or 'OK' button, you will hear a beep from TMCT-10, the paring successfully.
Performance Characteristics
Bluetooth
Light Source (Laser)
Decode Capability
Resolution
Nominal Working Distance
Decode Rate
Scan width
Decode mode
Scan mode
Print Contrast Minimum
Scan angles
Cylinder Horizontal Scan
Enter Setup
Indication
Radio Range
Read function barcod
Interfaces Supported
Processor
EEPROM
Exit with Save
Wireless Communication
Battery
Note:
1. If you want to setup the function of TMCT-10. Read 'Enter Setup' barcode, then
'Function Setup' barcode, and read 'Exit with Save' at last.
2. If the device has been paired with a Bluetooth device and needs to be paired with
another Bluetooth device, please restore factory settings and then re-pair.
4
Pairing with MAC OS
1. Press the trigger for 2 seconds to start the scanner.
2. Scan "Enter setup mode" barcode, the LED should be blinking violet.
Enter Setup
3. Scan "Reset factory settings" barcode, after 2 seconds, the LED should be blinking red.
Factory Reset
4. Read 'Enter Setup' barcode
Enter Setup
5. Read 'One-click IOS Connection' barcode
One-click IOS Connection
6. Read 'Exit with Save' barcode
Exit with Save
Bluetooth class 2.1, Version +EDR
Laser LED 650+/-20nm
Codabar, Code 11, Code 93, MSI, Code 128, UCC/
EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN,
Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix
3mil
6~30cm
100 decodes per second
30mm
Single-Line Aiming
Auto off mode / Manual mode
30%
Roll 30° Pitch 75° Yaw65°
Diameter 35mm
Beeper, LED
10m Visual range
SPP, HID, USB2.0
ARM 7 72MHz
256K, can store thousands of barcodes
HID and SPP dual mode data transmission under
Bluetooth class 2.1 protocol
1500mAh lithium battery
7. Press the trigger for 3 seconds to switch off again, restart the
scanner like described under step 1.
8. Activate Bluetooth, open the Bluetooth device manager in your
system, continue pairing by clicking "Bluetooth Setup Assistant".
9. The computer shall now search for new Bluetooth devices, showing
the "CT10xxxxxxxx" after a couple of seconds in the list for available
devices.
10. Double-click on the "CT10xxxxxxxx" or highlight the entry for
clicking "Continue".
11. A pairing code request dialogue should now show up
12. Please use the digit codes provided as follows to scan in the pairing
code number by number continuously, then complete the pairing
configuration by scanning the barcode "Exit without save".
Exit without Save
