Teemi TMCT-07 User Manual

Hide thumbs Also See for TMCT-07:
Table of Contents

Advertisement

Quick Links

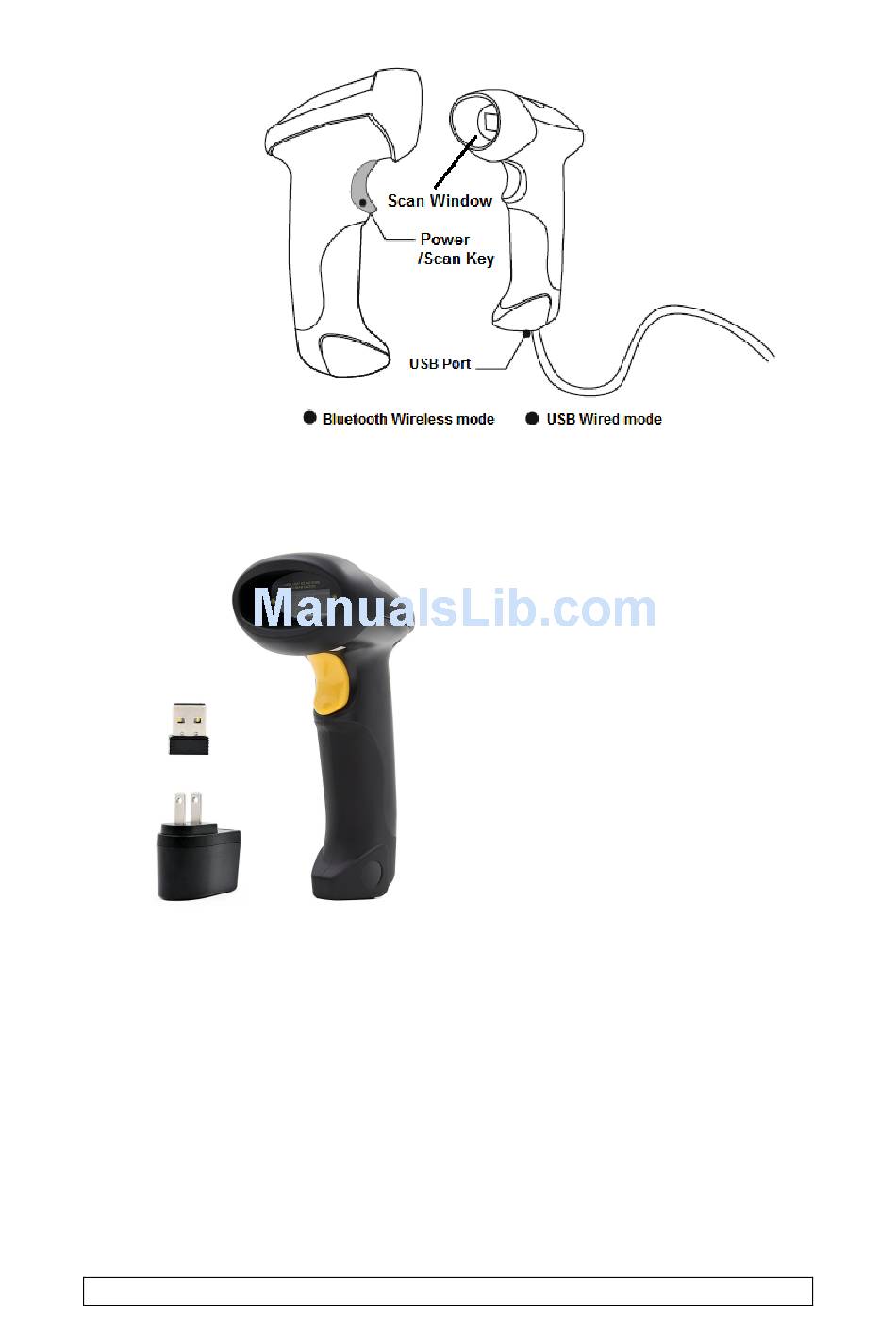

ppearance
A
Introduction of Key Function
Note: Long press Scan button 3 seconds will turn on the TMCT-07 scanner.
Long press Scan button 3 seconds will turn off the TMCT-07 scanner.
Flip the Scan button can read the barcodes.

Specifications

PHYSICAL CHARACTERISTICS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMCT-07 and is the answer not in the manual?

Questions and answers

Related Manuals for Teemi TMCT-07

Summary of Contents for Teemi TMCT-07

  • Page 1: Specifications

    Introduction of Key Function Note: Long press Scan button 3 seconds will turn on the TMCT-07 scanner. Long press Scan button 3 seconds will turn off the TMCT-07 scanner. Flip the Scan button can read the barcodes. Specifications PHYSICAL CHARACTERISTICS...

  • Page 2: Correct Aiming

    Material ABS+TPU Size Length 167mm*Width 70mm* Height 85.5mm Color Black Power supply Built-in rechargeable lithium battery Weight 150g（With battery） PERFORMANCE CHARACTRISTICS Bluetooth Bluetooth class 2.0, Version +EDR Interfaces Supported Multiple Interface with: USB, RS232, PS2 Keyboard Light Source (Laser) Laser LED 650+/-20nm Sensor 2500 pixels Decode Capability...

  • Page 3: Incorrect Aiming

    3、After using a function which is not be used usually in the scanner. 2. Steps of Programming the scanner: If you like to configure and modify one or a couple of the TMCT-10 or TMCT-07 scanner’s properties, you may do so by following the scanning steps shown below: “Enter setup mode”...

  • Page 4: Code 25 -Industrial25

    For example: Enable Codabar. 1. Read the "Enter Setup" barcode; 2. Read the "Enable Codabar" barcode; 3. Read the "Exit with Save" barcode. 3.1 CODABAR Enable Codabar （*）Disable Codabar Without output start and stop symbols Output start and stop symbols Codebar Codebar start and stop symbols: The alphabet characters A, B, C, D (in some specifications, E, N,...

  • Page 5: Enable/Disable Code

    3.5 CODE 25-STANDARD 25 Enable Standard 25 （*）Disable Standard 25 3.6 CODE 39 3.6.1 Enable/Disable Code 39 （*）Enable Code 39 Disable Code 39 3.6.2 START/STOP Output （*）Output Code 39 Start/Stop Without output Code 39 Characters Start/Stop Characters 3.6.3 Checksum Verification It is not enforced to include the checksum character in the Code 39 data.
  • Page 6 （*）Do Not Verify Verify without Output Checksum Character Verify with Output Checksum Character 3.6.4 STANDARD/FULL ASCII CODE 39 Decide whether to support Code 39 Full ASCII or not that includes all the alphanumeric and special character. The default setting is to support Code 39 full ASCII. Disable Code39 Full ASCII （*）Enable Code39 Full ASCII...
  • Page 7 3.7CODE 93 Enable Code93 （*）Disable Code93 3.8 Code 128 （*）Enable Code128 Disable Code128 3.9 EAN-8 3.9.1 Enable/Disable EAN-8 Enable EAN-8 （*）Disable EAN-8 3.9.2 Convert to EAN-13 There are two ways for EAN-8 changing, one is converting to EAN-13, another is adding "0"...

  • Page 8: Convert To Isbn

    Without output CHECKSUM （*） Output CHECKSUM 3.10 EAN-13 3.10.1 Enable/Disable EAN-13 （*）Enable EAN-13 Disable EAN-13 3.10.2 Convert to ISBN Convert EAN-13 to ISBN （ * ） Do Not Convert EAN-13 to ISBN 3.10.3 Checksum output （*）Output checksum Without output checksum 3.11 UPC-A 3.11.1 UPC-A Output ‘0’...
  • Page 9 3.11.2 UPC-A Checksum Transmission Without output checksum （*）Output checksum 3.12 UPC-E 3.12.1 Enable/Disable UPC-E （*）Enable UPC-E Disable UPC-E 3.12.2 UPC-E Checksum Transmission Without output checksum （*）Output checksum 3.12.3 Converting UPC-E to UPC-A Enable the function of converting UPC-E to UPC-A Disable the function of converting UPC-E to UPC-A 3.13 MSI （*）Disable MSI...

  • Page 10: Suffix Code Of Barcode Settings

    3.14 CODE 11 Enable Code11 （*）Disable Code11 3.15 Suffix Code of Barcode Settings (*) Apply Enter for suffix Do not Apply Enter for suffix suffix （*）Apply Alt for suffix Do not Apply Alt for Apply Tab 3.16 CAPS ON And LOCK The Alpha-characters in upper case will be entered as lower case, the Alpha-characters in 定...

  • Page 11: Manual Mode

    The Alpha-characters in upper case will be entered as upper case, the Alpha-characters in lower case will be entered as lower case, and numbers are unchanged. All Alpha-characters will be entered as upper case, numbers are unchanged. All Alpha-characters will be entered as lower case, numbers are unchanged Manual Mode By default, the scan mode is set to Manual Mode.

  • Page 12: Beeper Volume

    Automatic scanning Mode Under the Automatic scanning Mode, the users just need to move the barcodes to be scanned in front of the light band of TMCT-10, no need press the Scan Key, there will show a red light line. This indicates the scanner could scan; the scanning will not stop until the scanner under the following situation.
  • Page 13 For example: Set Mute Volume for beeper. 1. Read the "Enter Setup" barcode; 2. Read the "Mute" barcode; 3. Read the "Exit with Save" barcode.

  • Page 14: Add Prefix

    STEPS TO SET UP PREFIX AND SUFFIX: 1. Scan “Enter setup” 2. Scan “add prefix” or “add suffix” 3. Find the ASCII value of the character you want to add in the list and scan the appropriately numbered barcode(s). 4. Scan “exit and save” Enter Setup Exit with Save Exit without Save...
  • Page 15 ASCII Value Keystroke NUL(null) SOH(start of headline) STX (start of text) ETX(end of text) EOT (end of transmission) ENQ (enquiry) ACK (acknowledge) BEL (bell) BS (backspace) HT (horizontal tab) LF (NL line feed, new line)
  • Page 16 VT (vertical tab) FF (NP form feed, new page) CR (carriage return) SO (shift out) SI (shift in) DLE (data link escape) DC1 (device control 1) DC2 (device control 2) DC3 (device control 3) DC4 (device control 4) NAK (negative acknowledge) SYN (synchronous idle) ASCII Value Keystroke...
  • Page 17 " & ASCII Value Keystroke...
  • Page 18 < > ASCII Value Keystroke...
  • Page 19 ASCII Value Keystroke...
  • Page 20 ASCII Value Keystroke...
  • Page 21 DELdelete...
