Assembly - Hanging the Fan (continued)
6

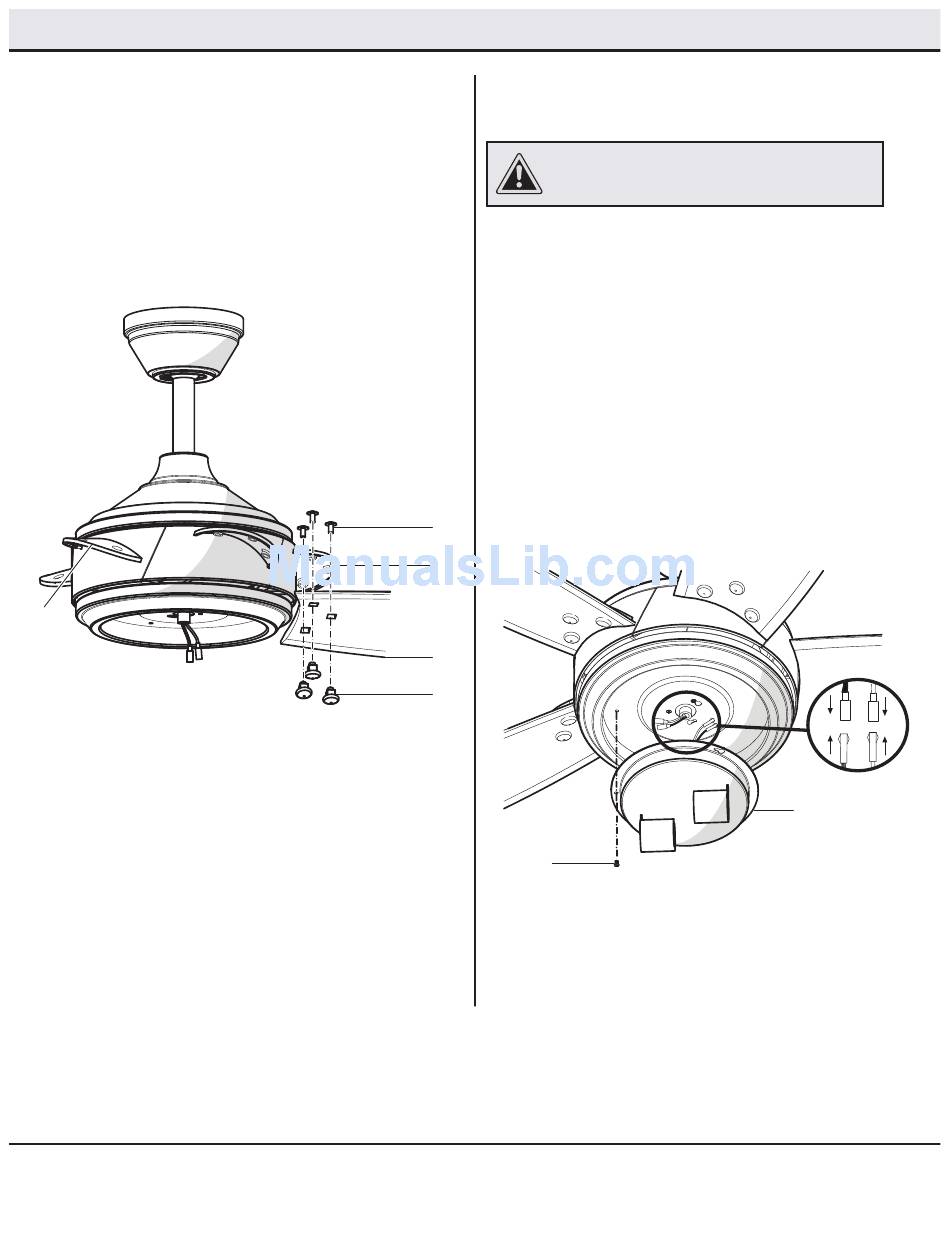

Attaching the fan blades

□
Attach a blade (F) to blade bracket (L) using the decorative
nuts (DD) and blade attachment screws (CC) provided. Insert
a blade attachment screw (CC) through a hole in the blade
(F) and the blade bracket (L) and into the decorative nut (DD).
Repeat for the two remaining holes in the blade (F).
□
Tighten each screw (CC) securely.
□
Repeat these steps for the remaining blades.
L
7
Attaching the light kit fitter assembly
CAUTION: To reduce the risk of electric shock,
disconnect the electrical supply circuit to the fan before
installing the light kit.
□
To attach the light kit fitter assembly (G), remove on screw (JJ)
from the light kit pan (pre-installed), and loosen, but do not
remove the other two screws.
□
Connect the blue wire existing the bottom of the fan motor
assembly (E) with the black wire from the top of the light kit
fitter assembly (G).
□
Connect the white wire existing the bottom of the fan motor
assembly (E) with the white wire from the top of the light kit
fitter assembly (E)
□
Push the light kit fitter assembly (G) up to the light kit pan
(pre-installed) so that the two loosened screw heads fit into
the keyhole slots. Turn the light kit fitter assembly (G) to
secure.
□
Re-install the screw that was removed in step 1.
□
Make sure all the screws are firmly tightened.
CC
E
F
DD
JJ
11
Please contact 1-800-986-3460 for further assistance.
G
