Oregon Scientific HWI0002 User Manual

User Man ual
Thank you for purchasing the Apothecary Bottle. Be sure to read this manual thoroughly in order to use the product properly.
Please keep this manual for reference in the event any problems or questions arise.
EU Declaration of Conformity
Hereby the manufacturer, Oregon Scientific, declares that the equipment type:
Aroma Fan Apothecary Bottle (HWI0002) is in compliance with 2014/30/EU
Directive. The full text of the EU Declaration of Conformity is available at the
following internet address: www.oregonscientific.com
Disposal Information for Users
Pursuant to and in accordance with Article 14 of the Directive
2012/19/EU of the European Parliament on waste electrical and
electronic equipment (WEEE), and pursuant to and in accordance
with Article 20 of the Directive 2013/56/EU of the European Parliament on
batteries and accumulators and waste batteries.
The barred symbol of the rubbish bin shown on the equipment indicates that,
at the end of its useful life, the product must be collected separately from
other waste.
Name of parts
Main Body Air-outlet
Accessories:
Cover
oil pad X3
(one is installed)
Oil pad
USB cable
Oil pad installment part
wind outlet
ø"Round oil pad" will be Power Button
written as "oil pad".
How to insert and replace batteries
1 Remove the battery
compartment lid from the
product.
・Make sure to open it carefully
and do not drop the cover.
・Push up the hitch part of
battery compartment lid then
remove the lid.
2 Insert batteries.
・Match the polarities + and - of
the battery compartment as
indicated.
How to connect with USB
The product can run without batteries by plugging the USB power cord
into USB port of computer.
1. Plug the supplied USB cable to the product.
Plug the micro USB plug into the USB terminal of the product.
2. Connect to computer's USB port.
Troubleshooting
Confirm the following before (asking for) repairment.
Symptom Possible Cause
No power Are batteries inserted correctly?
Are batteries ran out?
Is the computer power on when using USB power?
Is USB plugged properly?
Are you using USB hub?
Is oil pad installed?
No or weak scent
Is the oil pad contain enough amount of essential oil?
Is the vent air inlet or wind outlet blocked?
Is it using in the place with wind?
Stop running suddenly Do you run the product for more than 30 minutes?
Please note that the batteries/rechargeable batteries must be removed from
the equipment before it is given as waste. To remove the
batteries/accumulators refer to the specifications in the user manual.
Therefore, any products that have reached the end of their useful life must be
given to waste disposal centers specializing in separate collection of waste
electrical and electronic equipment, or given back to the dealer when
purchasing a new WEEE, pursuant to and in accordance with Article 14 as
implemented in the country.
The adequate separate collection for the subsequent start-up of the
equipment sent to be recycled, treated and disposal of in an environmentally
compatible way contributes to preventing possible negative effects on the
environment and health and optimizes the recycling and reuse of components
making up the apparatus.
Abusive disposal of the product by the user involves application of the
administrative sanctions according to the laws in force.
Bottom part Battery compartment lid
Battery
compartment
Air inlet
Micro USB
terminal
Blower unit
3 Return the battery
compartment lid to its place.
・Close the lid tight until you hear
the click sound.
・Make sure the batteries are inserted correctly by
matching the + and – polarity markings.
Overheating, leakage or explosion of battery may
cause damage of the product or injury.
・Use the specified battery (AAA-size batteries X 2)
Caution
Do not mix old and new batteries or different type
of batteries at the same time.
・Dispose of used batteries according to the
instructions of each municipality.
・This product is not corresponding to rechargeable
battery.
øThe product works with the power from USB
adaptor prior to that from batteries even batteries
are inserted.
Remove the USB cable when using batteries.
micro USB plug
Solution
Reinsert the batteries according to the polarity markings.
Replace with new batteries.
There is no power supply to USB when the computer is off (there may
be exception depending on model).
Plug in the cable properly into the USB port.
Plug the cable into USB port directly. Power supply of USB hub may not
be applicable to the product.
Install the oil pad with right amount of essential oil properly.
Add proper amount of essential oil to the oil pad.
Remove the obstacle.
It may be difficult to smell the scent somewhere depending on the wind direction.
When powered with batteries, the product would stop automatically.
Safety Precautions
・Read the following precautions carefully before using .
・To prevent injury of user and other people or damage of property, the following indications must be followed. Read the precautions carefully to ensure
proper use.
・Degrees of harm or damage, caused by improper operation without following the instructions, are described as below.
Meaning of Symbols:
Danger
This indicates precautions for which improper usage "can result in the highly imminent possibility of death or serious injury".
Warning
This indicates precautions for which improper usage "may result in death or serious injury".
Caution
This indicates precautions for which improper usage "may result in slight injury or damage of property".
The following symbols distinguish contents which should be avoided or followed.
Prohibition
Indicated "what must NOT do".
Danger
In case battery fluid gets into your eyes. Do not rub your eyes, rinse
immediately with plenty of water and seek medical advice.
It could cause blindness or other injury.
Warning
Make sure batteries are inserted correctly by matching the polarity
markings + and –. Do not mix old and new batteries or mix different
type of batteries.
Overheating, leakage or explosion of batteries could result in injuries
or equipment damage.
Keep batteries and accessories out of reach of children. If children
swallow batteries or accessories, seek medical attention immediately.
Remove batteries before cleaning to avoid electric shock or failure.
Switch off or remove batteries if any damage is noted. It may result in
fire, electric shock or injury if using the product without any action.
If liquid leaking from a battery comes into contact with your skin or
clothing, flush thoroughly with plenty of water immediately. Otherwise,
skin irritation may be caused.
Remove batteries when they run out. It could damage the product due
to overheating, explosion or leakage.
Do not modify, repair or rebuild the product.
It may cause injury or failure.
Do not allow unsupervised use by children. Keep out of reach of children.
Unintentional injuries may cause easily due to imporper usage.
Do not store and use the product in high temperature areas.
It may cause failure, fire or smoke generation.
Do not allow the product to drop or to subject to impact.
It may cause failure, fire, electrical shock or injury.
Do not handle batteries or the product with wet hands. It may cause
electric shock or failure.
Specification

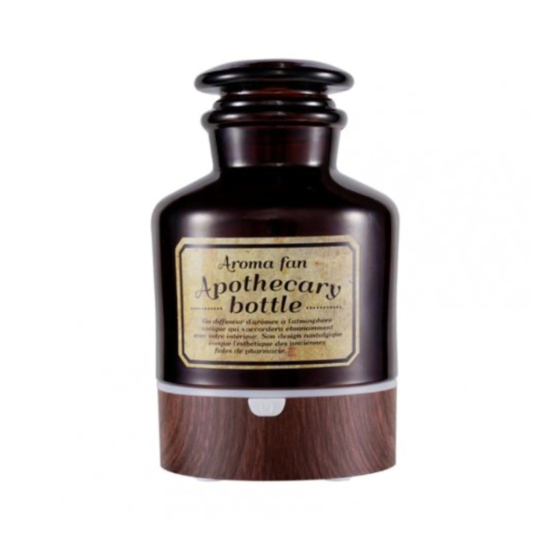

Product Name Aroma Fan Apothecary Bottle
Item code HWI0002
Φ80 x130(H)mm
Dimension
Weight Approx. 470g (excluding USB cable & batteries)
Light mode Light On g Flicker
Batteries : Continuous 20 mins gIntermittent 1 hour
Operation
Mode USB Cable : Power ON/OFF
Power Source USB cable (5V 0.5A)
2 X AAA Alkaline batteries
Battery drive 20 mins continuous mode x about 50 times (powered by
frequency alkaline batteries)
øDepends on battery condition and usage environment
øThere are individual differences in dimension and weight.
The specifications of this product and the contents of this user manual maybe change without any prior notice.
About usage of essential oil
Use essential oil which is 100% extracted from plant naturally in this product.
Do not use synthetic essential oil which contains impurity, solid. It may cause the damage to product.
How to use
Preparation
1. Remove the upper lid, insert batteries or connect with USB cable.
Read ''How to insert and replace batteries'', '' How to connect with
USB''.
2. Take out the oil pad.
3. Drop few drops of essential oil onto the oil pad (placing on
newspaper).
4. Install the oil pad.
Install the oil pad into oil pad installment part. Place the oil
pad below the hooks.
Oil pad hooks
Operation
1. Press the Power Button
Light is on and aroma diffuser starts functioning
When connected with USB
ON
Fan starts (Light On)
O FF
Fan stops (Light Off)
Stop operation and storage
1. Switch off the power
2. Cleaning and Storage
Read and follow ''How to clean'' as reference and store the product properly.
・Remove batteries if the product is not use for a long period of time (more than a month).
Leakage of battery may cause damage to product or injury.
・Remove the installed oil pad that contain essential oil when store in a box.
Beware in handling the taken out oil pad.
・Handle essential oil carefully and wipe off the essential oil immediately once dropped on the surface of the product.
Caution
Only the oil pad installment part is made of oil-tolerance material. Other part may be melted if there is essential oil contact.
・Do not place essential oil near fire or flame.
・Wash the clothes immediately if essential oil is attached on it. Do not use clothes dryer.
・There would be color change if essential oil is attached to the cover or main body.
Wipe off immediately when essential oil is attached to the product.
How to clean
About handling the main body
・Wipe gently to remove the dirt and oil on the surface of the product.
・Do not wash the product with water since there is precision machine
built-in.
・Remove batteries when cleaning.
・Use cloth which contains mild detergent to wipe the stubborn dirt or
fragrance. Then wipe with a dry cloth again to clean up the detergent.
・Do not use thinner, benzene, alcohol or abrasive.
・Use the dust vacuum to clean the dust on air inlet.
2016.03.14 13: 45
Instruction
Indicated "what must do".
Do not use the product in humid areas or outdoors.
It may casue electric shock or failure.
Do not stab or insert any sharp, metal such as needle, pin into
the product.
It may cause electric shock, fire or failure.
Do not add too much essential oil on the oil pad or do not add the oil
when the pad is set on the product.
It may cause failure, fire or electric shock if the oil drops to the internal
base.
Caution
Do not allow the product to get wet.
The product is not waterproof. It may cause failure.
Do not expose the product under direct sunlight.
It may cause color fading, deformation or failure.
Read and follow the instructions of alkaline battery carefully in order
to use it properly.
Improper use of battery may cause injury due to overheating, leakage
or explosion.
Remove batteries from the product if it is not used for a long period
(more than one month) of time.
Leakage of battery may cause explosion, injury or fire.
Wipe off the essential oil once dropped on the surface of the product.
It may cause deformation or failure.
Do not use the product in a way that is not described in this manual.
It may cause injury or failure.
Plug the end of USB power cord into USB port of computer directly.
The low voltage in use of USB hub may cause imperfect
performance.
Remove USB cable every time after using the product.
Remove the dust on USB cable regularly.
Otherwise, it may cause failure.
Recommended operation 5°C ~ 40 ° C
temperature
Recommended operation 20% ~ 80%
Length of cord Around 150cm
Materials Base stand/ ABS.PP
Cover/ Glass
Round oil pad/ PET
Corresponding 100% Pure Essential oil (sold separately)
aroma oil
Country of origin China
Accessories Round oil pad X3 (1 is installed ), USB cable, AAA
Battery x 2 pcs, user manual
2016.03.14 19: 00
・Do not add too much essential oil onto the oil pad.
It may cause failure or fire when the oil drops to the
internal base.
・Be aware that essential oils can melt plastic
components.
Caution
Be careful in handling essential oil to prevent damage
of property.
・Read the instruction of essential oil carefully to ensure
proper use.
5. Return the upper lid to its place
Make sure the lid contact closely to the blower unit and would not loose
easily.
6. Place the product on a stable surface.
Hold the blower unit and the cover carefully when moving the product to
prevent dropping.
Do not place the product on long fur carpet, blanket
or anything soft.
The air inlet would be blocked. If air flow stops,
Caution
scent stopped. It may cause failure or fire.
When powered with batteries
ON
Fan starts (Continuous mode of 20 mins, Light On)
ON
Fan starts (Intermittent mode of 1 hour, Flicker light)
O FF
Fan stops (Light Off)
øWhen powered with batteries, the product will stop operating
automatically in 20 mins or 1 hour.
øIntermittent mode of 1 hour:
Operate 15 minsgStop 5 minsgOperate 15 minsgStop 5 mins
gOperate 15 minsgStop
About handling the oil pad
・Beware to handle the removed oil pad.
・Oil pad cannot be washed. Use a new oil pad when changing the
essential oil or the oil pad gets dirty.
・Additional oil pads are sold separately. Contact the store where you
bought the product for details.
