Page 1: User Manual

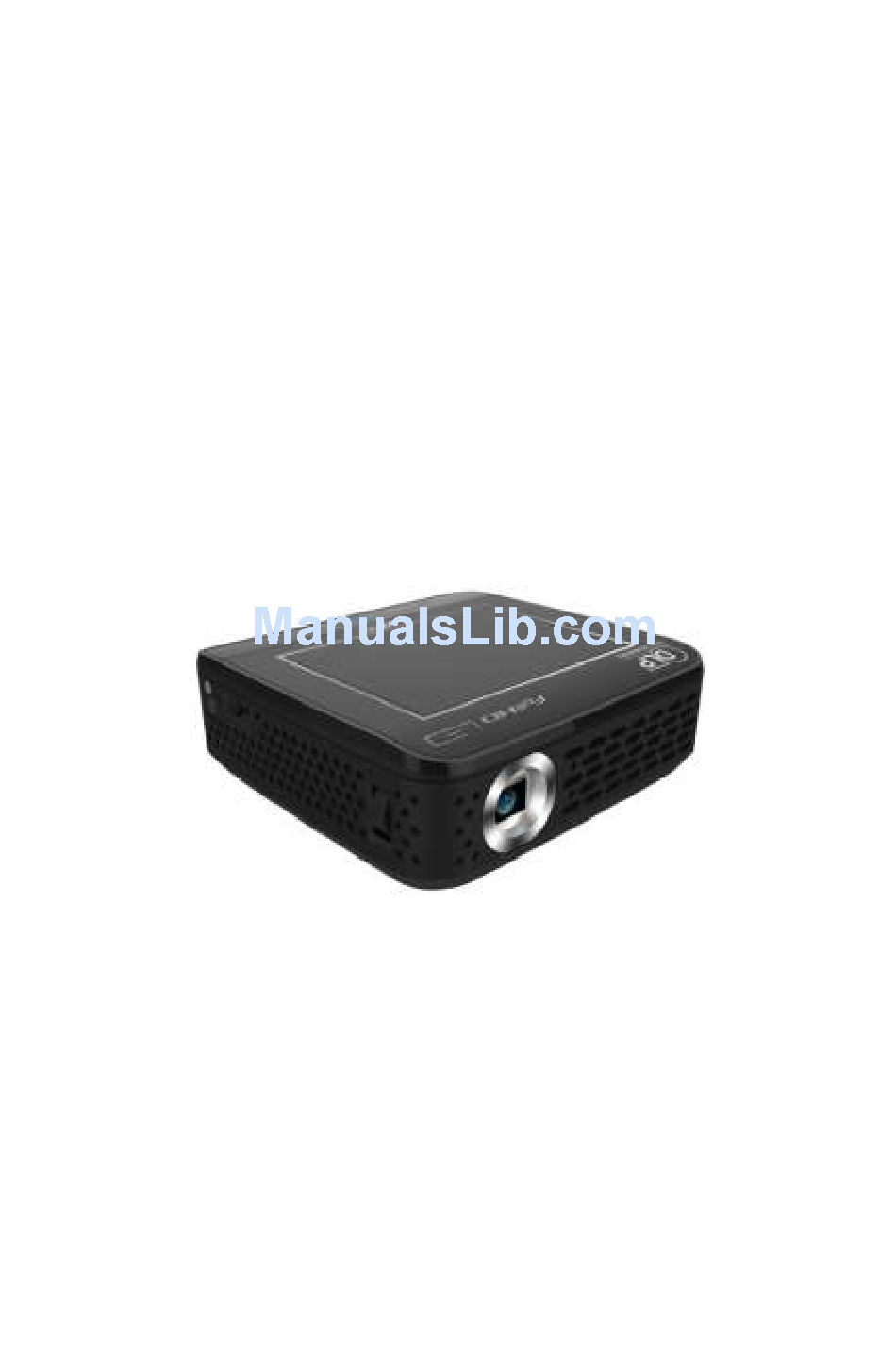

Pico Projector MPP-14001 FCC ID:2ACX4MPP14001 User Manual... - Page 2 Overview Dear Customer Thank you for purchasing our Pico Projector. This product is a compact pico projector and the best solution for business. The used DLP chip, known for great cinema projectors, provides rich colors and high contrasts with up to Lumen brightness.
- Page 3 12. Place the projector on a flat surface. Any collision or falling to the ground is likely to damage the product. 13. Do not drop or disassemble the product otherwise the warranty voids. Opening or removing covers may expose you to dangerous voltage or other hazards.
- Page 4 Package Contents Please check if the following items are located in your packaging: Mini Projector AC Adapter Remote Controller USB Cable Composite AV Cable HDMI Cable (A to C) Pouch QSG & User Manual You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment.
-
Page 5: Table Of Contents
Contents Devices Overview ..................5 Getting Started .................... 7 Charging the Product ................7 Projecting from External Source ............. 7 Connecting USB Device ................9 Connecting your PC (Used as USB Storage Device) ......... 9 Using Headphone .................. 10 Power Bank Function ................11 Functions and Operations ................ -
Page 6: Devices Overview
Devices Overview Projector 1. DC IN Jack device; under power on 2. Headphone Jack mode, slide to enter standby 3. AV Jack mode and slide again to 4. HDMI Jack resume; slide and hold on 5. Micro-USB Jack for about 3s to turn off the 6. - Page 7 9. Focus Wheel 13. USB Jack 10. Menu Button 14. Power Bank Indicator 11. Home Button 15. Micro-SD Card Slot 12. Return Button 16. Touchpad Remote Controller 1. Power Button 7. Previous File Button 2. Menu Button 8. Return Button 3.
-
Page 8: Getting Started
Note: Before the first time you use the remote controller, please take off the colorless plastic piece. Getting Started Charging the Product The projector is built in Li-polymer battery for mobile use. Please charge battery of the projector full before its first use. Battery Status Monitor During charging, the battery charge indicator is red. - Page 9 HDMI 1. Use HDMI cable to connect the mini HDMI port on rear the panel of the projector to the external HDMI signal source. Ensure that the HDMI input signal is enabled. 2. Enter “Source” on main menu and select “HDMI ”mode. Use Mini HDMI to VGA cable (optional) to connect the HDMI port on the rear panel of the projector to PC or other external source.
-
Page 10: Connecting Usb Device
Note: 1. Make sure the screen refresh frequency of your computer is 60Hz. 2. Supported screen resolution of PC: 1920 x 1080 / 1600 x 1200 / 1280 x 1024 1280 x 960 / 1280 x 720 / 1152 x 864 1024 x 768 / 800 x 600 / 640 x 480 3. -
Page 11: Using Headphone
1. Turn on the PC and the projector. 2. Connect the micro-USB port of the mini projector to PC via the USB cable. A prompt information will appear on the projector to remind you to turn on USB storage, select and press OK to turn on it. Now the projector is in mass storage mode. -
Page 12: Power Bank Function
cause damage to your ears. Power Bank Function The projector can be used as a power bank for your mobile phone charging. 1. When projector is off, you can slide the power switch to turn on/off power bank function. When projector is on, select Power Bank on the main menu and activate it, the screen will popup an asking window, select OK to go to the power bank mode. -
Page 13: Functions And Operations
Functions and Operations Main Menu Press to select the desired item and press OK to enter the submenu; press to return to Main Menu. Note: Before Video/Picture/Music playback, please store available files into the flash memory or insert micro-SD card/connect USB device with available files in firstly. -
Page 14: Pictures
On the video menu, press to enter file selection mode and press to navigate the file. Press OK to start playback of the selected video. Tap the icon in left top corner of the screen for more video settings 2. During playback, press to play the previous/next video. -
Page 15: Source
Select and play music. 1. On the music menu, press to select and press OK to start the music playback. Tap the icon in top left corner of the screen for more music settings. 2. Press to adjust the volume and press the to mute. -
Page 16: Browser
Browser On the main menu, press to select Browser and press OK to open it and surf on Internet. Press to return to Main Menu. Settings Wi-Fi 1. On the settings menu, select “Wi-Fi”, press to enter WiFi setting and press OK to turn on WiFi. 2. - Page 17 and enter the password, click Connect to finish. (The operation is the same as that of Android smart phone) Bluetooth Note: before using this function, connect your projector with a mouse so that you can use the function conveniently. 1. On the settings menu, select Bluetooth, press to enter Bluetooth setting and press OK to turn on Bluetooth.
- Page 18 4. Your projector screen will show a pairing request as below, then tap the "Pair". 5. Transfer the files in your device, the bottom of the projector screen will come up a tip, and disappear very quickly. Don’t worry about it. 6.
- Page 19 Music of main menu screen. Display Press to select Display and then press OK to enter submenu. Power Save Activate the function to save power. Projector Mode Press select projection mode. Language & Input Press to select Language & Input and then press OK enter submenu to set language and keyboard and input method, etc.
-
Page 20: Notice For Long-Time Projection
Press to choose Backup & reset and press OK to enter submenu. Press to choose Factory data reset and press OK to enter. Use direction buttons to select “Reset device” and “Erase everything”, press OK, then the device will be back to default setting. About device Detailed information about the projector. -
Page 21: Specifications
Specifications Item Description Optical Technology WVGA 0.3” DLP Light Source RGB LED LED Lifetime Min. 20,000 hours Contrast 1000:1 Resolution 854 x 480 Pixels (WVGA) Aspect Ratio 16:9 (4:3 compatible) Projection Image Size 50 cm ~ 600 cm (14 ” ~ 120 ”) Projection Distance 50 cm ~ 300 cm (14 ”... - Page 22 FCC statement This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interfer ence that may cause undesired operation.
