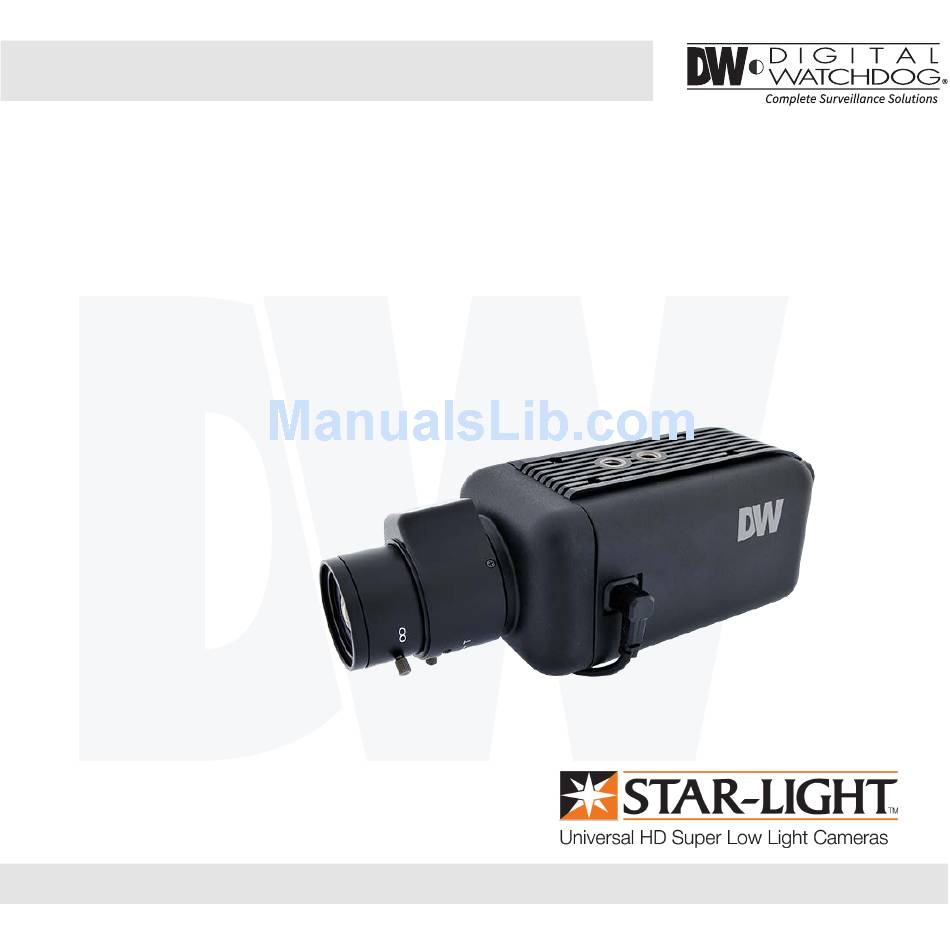

- Page 1 STAR-LIGHT Universal HD Box Camera over Coax DWC-C223W User’s Manual Ver. 08/17 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Table Of Contents
Index INTRODUCTION Safety Information Features Part Name Dimension Product & Accessories INSTALLTION Installation Connecting to Monitors OSD MENU Menu Tree OSD Menu - Exposure OSD Menu - Color OSD Menu - Day&Night OSD Menu - Function OSD Menu - Motion OSD Menu - Privacy OSD Menu - Setup OSD Menu - Exit... -
Page 3: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... - Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
-
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. - Page 6 Important Safety Instructions 11. Only use attachments/accessories speci ed by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
-
Page 7: Features
Features Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support STAR-LIGHT™ Super Low Light Technology 1/3" Image Sensor 2.1MP, 1080p Resolution at 30fps Compatible with C/CS Mount Lens Wide Dynamic Range (WDR) OSD Control Via Coaxial (UTC) Smart DNR™... - Page 8 Product & Accessories Please check if all the camera and accessories are included in the package. Camera Alarm Out / RS485 Cable 2P Terminal Block CS Mount Wrench C-Mount Adapter Manual IRIS Plug...
-
Page 9: Part Name
Part name Mounting Bracket Connectors Back focus adjustment bolt Box Camera CS Mount adapter DC-Iris Socket Sensor Protection cap Alarm +/-, RS485 Power LED OSD Control Arrows and Enter Buttons AC/DC Power Input BNC Video Output Terminal Block... -
Page 10: Dimension
Dimension Unit : Inches (mm) 2.1" 2.44" (55mm) (62mm) 4.7" (119.7mm) 2.44" (62mm) 2.1" (55mm) 2.3" (58.8mm) 4.7" (119.7mm) -
Page 11: Installation
Installation- Instructions If you are using an automatic iris lens with the camera, the lens has to be connected to the DC-Iris socket of the camera. If you are using a lens with manual or xed iris, this socket is not used. CS-Mount Lens Before mounting a lens, please check whether it is a C-mount or CS-mount lens. - Page 12 Connecting to DVR/Encoder Use the diagram below to connect to an Universal DVR or CRT Monitor properly. COAX 12VDC/24VAC CCTV Monitor - Power Connection : 12VDC/24VAC Dual Voltage. (Auto Polarity Detection and Protection) - OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A) Image Mode Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
-
Page 13: Menu Tree
OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through RS485 or UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. EXPOSURE MOTION EXPO MOTI LENS... -
Page 14: Osd Menu - Exposure
OSD Menu Exposure LENS MANUAL : Manual mode supports the xed board lens or the manual iris lens. DC : DC mode sets the camera’s iris automatically. EXPOSURE LENS EXPO D&N FUNC MOTI PRIV EXIT LENS BRIGHTNESS BACKLIGHT SHUTTER AUTO FOCUS ADJ DEFOG RETURN... - Page 15 OSD Menu Exposure BACKLIGHT HME HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by EXPOSURE masking extremely bright areas. To setup HME, set the EXPO D&N FUNC MOTI PRIV EXIT level and color. The lower the setting, the darker the LENS BACKLIGHT masking areas have to be.
- Page 16 OSD Menu Exposure EXPOSURE DEFOG EXPO D&N FUNC MOTI PRIV EXIT LENS MODE AUTO BACKLIGHT LEVEL ____ RETURN DEFOG STARLIGHT 3D DNR HIGH EXIT JUMP DRC ( DYNAMIC RANGE COMPRESSOR ) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image.
-
Page 17: Osd Menu - Color
OSD Menu Color WB MODE COLOR WHITE BAL. EXPO D&N FUNC MOTI PRIV EXIT WHITE BAL. AUTO C-TEMP 5000K COLOR GAIN R-GAIN B-GAIN EXIT JUMP RETURN AUTO Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K ˚ and 12000K ˚. AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than 2500K ˚... -
Page 18: Osd Menu - Day&Night
OSD Menu Day & Night DAY/NIGHT EXPO D&N FUNC MOTI PRIV EXIT MODE AUTO AGC THRES AGC MARGIN CDS THRES ---- CDS MARGIN ---- EXTERN SW ---- EXT LED AUTO DELAY SMART IR EXIT JUMP MODE AUTO : Day/ Night switch will be based on the CDS levels. COLOR : The camera always stays in day/color mode. -
Page 19: Osd Menu - Function
OSD Menu Function FUNCTION EXPO D&N FUNC MOTI PRIV EXIT SHARPNESS GAMMA 0.55 MIRROR FLIP EXIT JUMP SHARPNESS 0 ~ 10 - Sets the image sharpness. The higher the number, the sharper the image. GAMMA 0.45 ~ 0.75 - Select the desired gamma level. 0.55 is default setting. MIRROR / FLIP MIRROR : Re ects the camera horizontally. -
Page 20: Osd Menu - Motion
OSD Menu Motion The camera can detect movement and display an alarm on the screen. when movement is detected. MOTION DET WINDOW EXPO D&N FUNC MOTI PRIV EXIT MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE DET H-POS DET V-POS MDRECT FILL DET H-SIZE SENSITIVITY... -
Page 21: Osd Menu - Privacy
OSD Menu Privacy You can hide some parts of the screen for privacy masking. A total of 16 di erent privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. PRIVACY EXPO D&N FUNC MOTI PRIV EXIT PRIVACY... -
Page 22: Osd Menu - Setup
OSD Menu Setup COMMUNICA SETUP CAM ID BAUDRATE 9600 EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA SET DONE CAM TITLE RETURN IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID : Provide an ID number for the camera (0 ~ 255). - Page 23 OSD Menu Setup SETUP EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA CAM TITLE IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP FREQ When the camera’s image appears to have ickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran.
- Page 24 OSD Menu EXIT EXIT EXPO D&N FUNC MOTI PRIV EXIT SAVE&EXIT EXIT SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes.
-
Page 25: Troubleshooting
Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the lens for dirt or ngerprints. -
Page 26: Speci Cations
Speci cations VIDEO Image Sensor 1/3” CMOS Sensors Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.2 (30IRE): 0.02 Lux (Color) Minimum Scene Illumination F1.2 (30IRE): 0.005 Lux (B/W) S/N Ratio 55dB Video Output... - Page 27 Speci cations OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance AUTO / AUTO-EX / PRESET / MANUAL Day and Night AUTO / COLOR / BW / EXTERN Auto Gain Control 0 ~ 10 Motion Detection ON/OFF (4 Zones) Privacy Zones ON/OFF (16 Zones)
-
Page 28: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street... -
Page 29: Warranty
Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 30 Notes...
