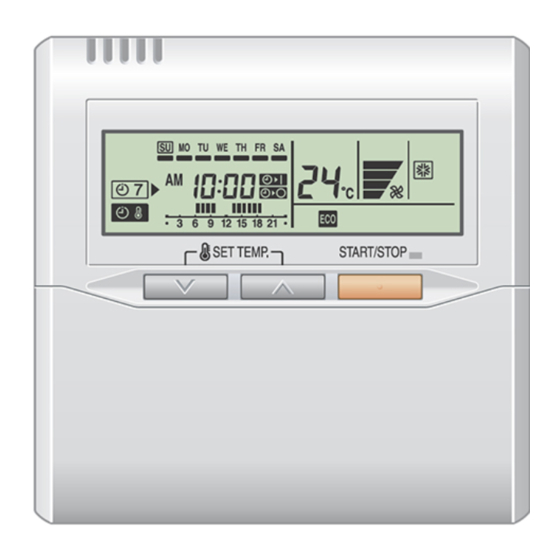

AirStage UTY-RNKY Operating Manual

Wired remote controller
Hide thumbs Also See for UTY-RNKY:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
UTY-RNKY
UTY-RNKG
UTY-RNKYT
TM
OPERATING MANUAL
BEDIENUNGSANLEITUNG
Bewahren Sie dieses Handbuch für eine spätere Bezugnahme auf.
Conservez ce manuel pour pour toute référence ultérieure.
MANUAL DE FUNCIONAMIENTO
Conserve este manual para posibles consultas futuras.
MANUALE DI ISTRUZIONI
Conservare questo manuale per consultazione futura.
ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
Διατηρήστε το παρόν εγχειρίδιο για μελλοντική αναφορά.
MANUAL DE FUNCIONAMENTO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ПРОВОДНОЙ ПУЛЬТ ДИСТАНЦИОННОГО УПРАВЛЕНИЯ
Сохраните данное руководство для последующего использования.
Bu kılavuzu ileride başvurmak üzere saklayın.
WIRED REMOTE CONTROLLER
Keep this manual for future reference.
KABEL-FERNBEDIENUNG
MODE D'EMPLOI
TÉLÉCOMMANDE FILAIRE
MANDO A DISTANCIA CON CABLE
UNITÀ DI CONTROLLO A FILO
ΕΝΣΥΡΜΑΤΟ ΤΗΛΕΧΕΙΡΙΣΤΗΡΙΟ
CONTROLO REMOTO COM FIOS
Guarde este manual para consulta futura.
KULLANIM KILAVUZU
KABLOLU UZAKTAN KUMANDA
使用说明书
使用产品前请仔细阅读本使用说明书
请保留本说明书以供今后参考
PART NO. 9373329169-07
有线遥控器

Advertisement

Table of Contents
loading

Related Manuals for AirStage UTY-RNKY

Summary of Contents for AirStage UTY-RNKY

  • Page 1 TÉLÉCOMMANDE FILAIRE Conservez ce manuel pour pour toute référence ultérieure. MANUAL DE FUNCIONAMIENTO MANDO A DISTANCIA CON CABLE Conserve este manual para posibles consultas futuras. UTY-RNKY MANUALE DI ISTRUZIONI UTY-RNKG UNITÀ DI CONTROLLO A FILO UTY-RNKYT Conservare questo manuale per consultazione futura.

  • Page 2: Table Of Contents

    OPERATING MANUAL PART NO. 9373329169-07 WIRED REMOTE CONTROLLER CONTENTS TEMPERATURE SET BACK TIMER .......10 SAFETY PRECAUTIONS ..........1 OPERATING TIPS ............11 NAME OF PARTS ............2 TROUBLESHOOTING............ 11 PREPARATION ..............3 SPECIFICATIONS ............11 OPERATION ..............3 ERROR CODE DISPLAY ..........12 FILTER LAMP RESET............

  • Page 3: Name Of Parts

    NAME OF PARTS With cover open ● Display panel Display panel ● 24 25 D “ MAINTENANCE / FILTER RESET” 1 “ SET TEMP. ”, “ SET TEMP. ” (Maintenance/Filter Reset Button) (Set Temperature Button) E Operation Indicator 2 “ TIMER MODE / CLOCK ADJUST”...

  • Page 4: Preparation

    PREPARATION To set the current day and time Press the “DAY / DAY OFF” button and select the current day. appears around the selected day. Press the “ TIMER MODE / CLOCK ADJUST” button for 2 seconds or more. (SUN) (MON) (TUE) (WED)
  • Page 5 ● Room temperature setting Press the “ SET TEMP. ” button or “ SET TEMP. ” button to set the room temperature. Temperature setting range AUTO ............. 18 to 30 °C COOL/DRY ............ 18 to 30 °C HEAT ............. 10 to 30 °C* * Room temperatures as low as 10 to 15 °C cannot be set depending on the model.
  • Page 6 OPERATION NOTES (1) • Always use the “ ” button or the “ ” button. <Vertical airfl ow swing operation> Attempting to move the airflow direction louvre Airfl ow direction Range of swing manually could result in improper operation; in this case, stop operation and restart.
  • Page 7 Room temperature sensor selection Indoor unit Press the “ECONOMY / THERMO SENSOR” button for more than 2 seconds to select whether the room temperature is detected at the indoor unit (remote sensor) or the remote controller. When the thermo sensor indicator appears, the room temperature is detected at the remote controller.

  • Page 8: Filter Lamp Reset

    FILTER LAMP RESET Some indoor unit models are equipped with a fi lter lamp in the indoor unit display to indicate when it is time to clean the air fi lters. Press the “ MAINTENANCE / FILTER RESET” button for 2 seconds or more. The indoor unit fi lter lamp will go off and the fi lter display will disappear.

  • Page 9: Weekly Timer

    WEEKLY TIMER Instructions on heating are not applicable for the “COOLING-ONLY” models. The timer function is not available depending on the slave unit. To set the WEEKLY timer Press the “TIMER SET” button for 2 Press the “ TIMER MODE / CLOCK ADJUST” button to select the weekly timer. seconds or more.
  • Page 10 WEEKLY TIMER To start/cancel the WEEKLY timer operation ● To start ● To cancel The independent timer will fl ash on the display. • Press the “TIMER DELETE” button to 3 6 9 12 15 18 21 cancel the timer mode. ex.

  • Page 11: Temperature Set Back Timer

    TEMPERATURE SET BACK TIMER Instructions on heating are not applicable for the “COOLING-ONLY” models. The timer function is not available depending on the slave unit. To set the temperature SET BACK timer If there is no existing SET BACK tempera- ture setting, “- -”...

  • Page 12: Operating Tips

    OPERATING TIPS Cooling/heating priority (AIRSTAGE Automatic defrosting operation and oil (V-II Series Heat Pump model only)) recovery operation • If another indoor unit in the same system is already operating During automatic defrosting operation and oil recovery operation, in the cooling mode or dry mode, heating mode settings cannot will be displayed on the remote controller.

  • Page 13: Error Code Display

    ERROR CODE This appears automatically on the display if an error occurs. If an error occurs, the following display will be shown. Faulty unit No. Error code (“ ” will appear in the set room temperature indicator.) (0-15, C0) If “ ”...
