Setup

Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Place the Welder on a level surface that can bear its weight near the work
area. Leave space around the Welder for proper air flow.

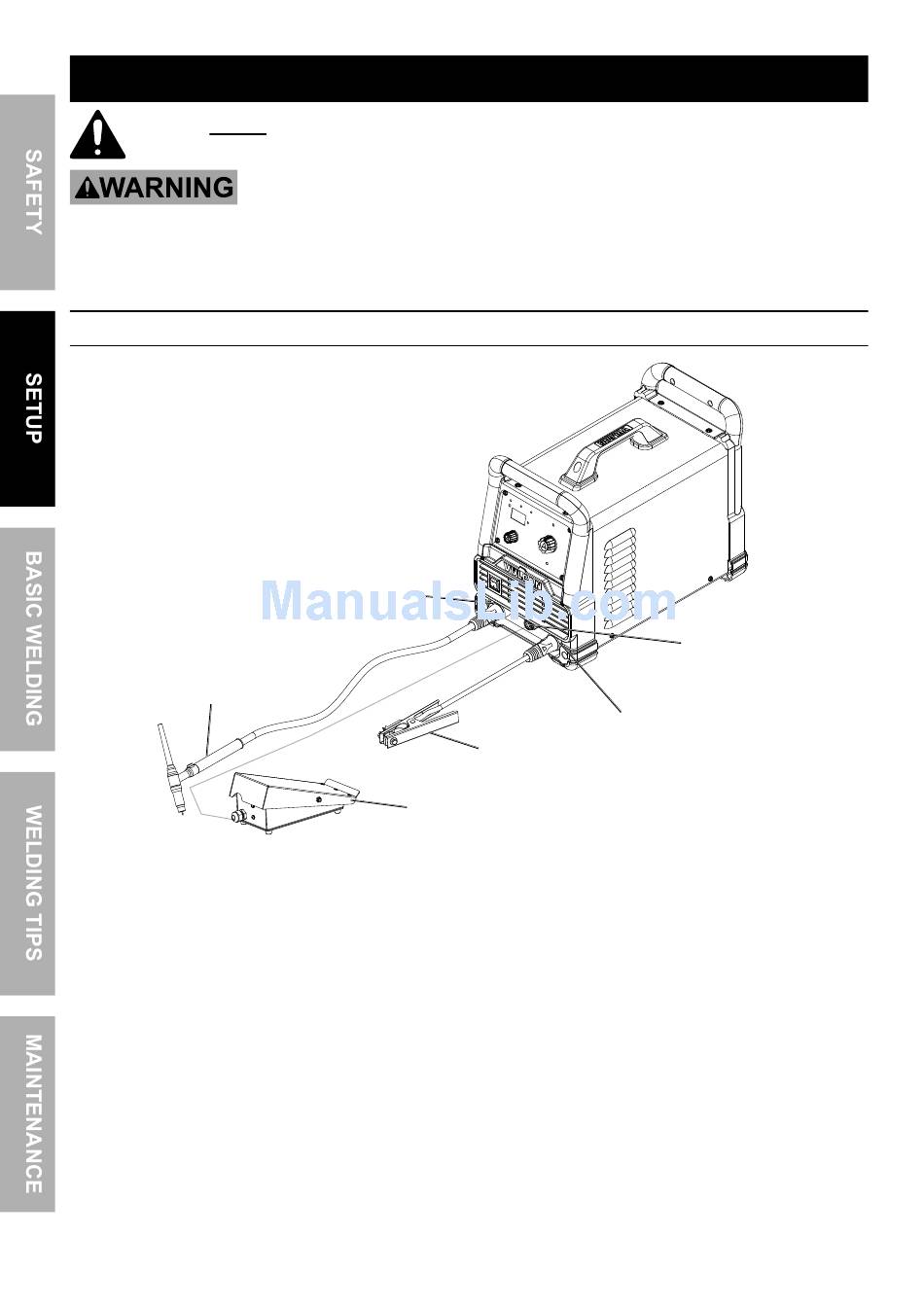

TIg Setup
connect cables
TIg
Torch
1. Plug Ground Clamp cable into Positive Socket.
Twist clockwise all the way to lock in place.
2. Plug TIG Torch cable into Negative Socket.
Twist clockwise all the way to lock in place.
Page 8
TO pREVENT SERIOUS INJURy FROM AccIdENTAL OpERATION:
Turn the power Switch off and unplug the welder before set up.
Negative
Socket
Foot
pedal
For technical questions, please call 1-888-380-0318.
positive
ground Socket
clamp
3. Plug Foot Pedal cable into Foot Pedal Socket.
Secure by turning collar clockwise until tight.
Foot pedal
Socket
