Stick Welding

TO pREVENT SERIOUS INJURy ANd dEATH:
do not weld without grounding clamp.
When the operator is not holding the Electrode Holder, it must be
sitting on a nonconductive, nonflammable surface.
1. Turn the Power Switch to the OFF position,
then plug the Welder into a properly grounded
120 V AC (20 amp rated) or 240V receptacle that
matches the plug.
The circuit must be equipped with delayed
action-type circuit breaker or fuses.
2. Set Electrode Holder down on
nonconductive, nonflammable surface
away from any grounded objects.
3. Turn the Power Switch ON.
WARNINg! When Stick is selected, Welder
is energized, Hot Start is activated and
Open circuit Voltage is present.

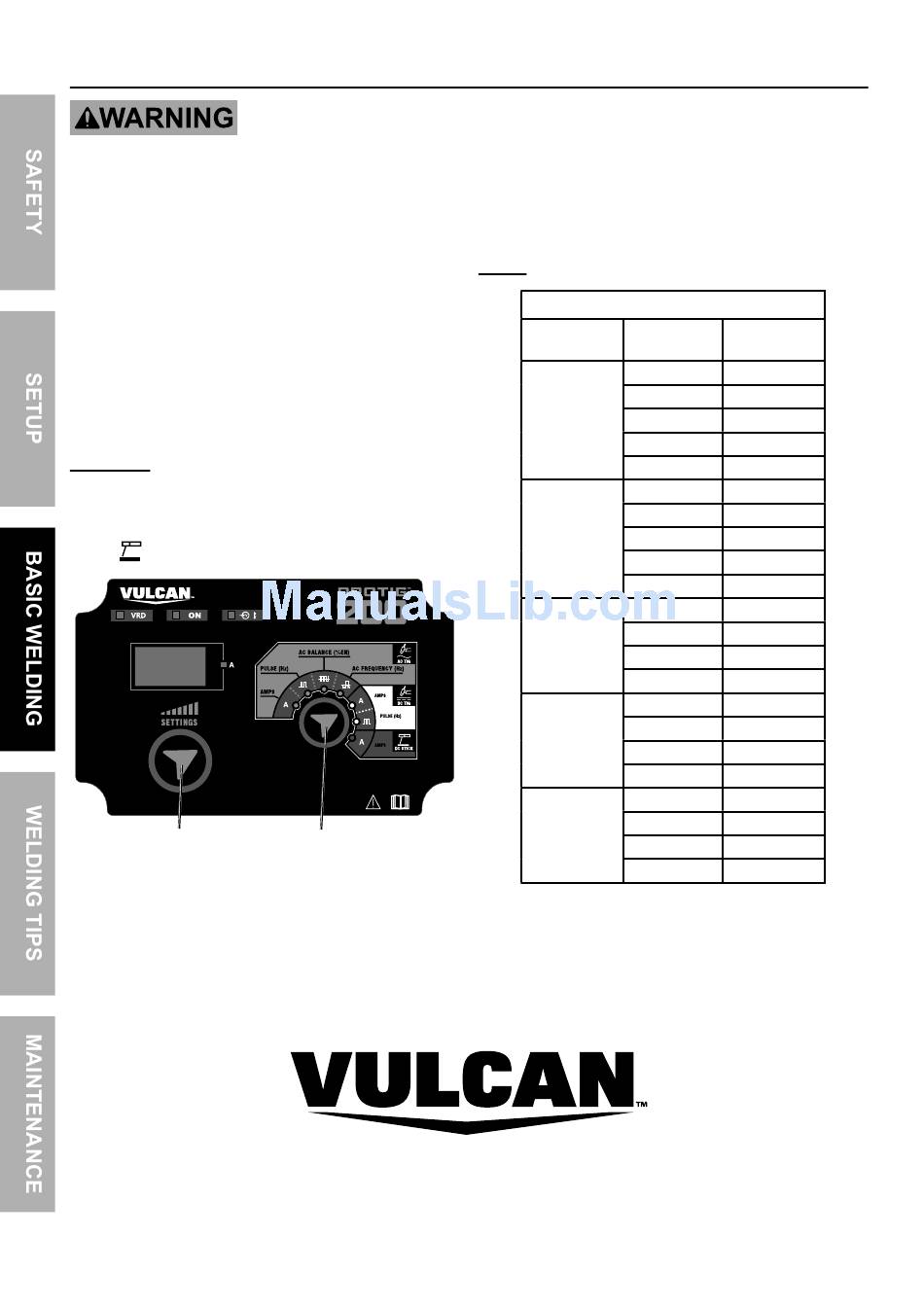

4. Select process: Turn Process Select Knob
to dc STIcK.
Settings
Knob
Page 18
process
Select
Knob
For technical questions, please call 1-888-380-0318.
5. Set Amperage according to Stick Settings Chart.
NOTE: Settings are approximate. Adjust as necessary.
Stick Settings chart
Electrode Electrode
Type diameter
6010 dc
6011 Ac/dc
6013 Ac/dc
7014 AC/DC
7018 Ac/dc
7024 AC/DC
Amperage
Range
3/32" 40-70
1/8" 75-130
5/32" 90-175
3/16" 140-225
7/32" 200-275
1/16" 25-40
3/32" 40-90
1/8" 75-125
5/32" 105-175
3/16" 150-225
3/32" 75-110
1/8" 105-160
5/32" 150-200
3/16" 200-275
3/32" 70-110
1/8" 90-160
5/32" 130-210
3/16" 200-275
3/32" 100-145
1/8" 110-175
5/32" 160-215
3/16" 220-280
Item 63619
