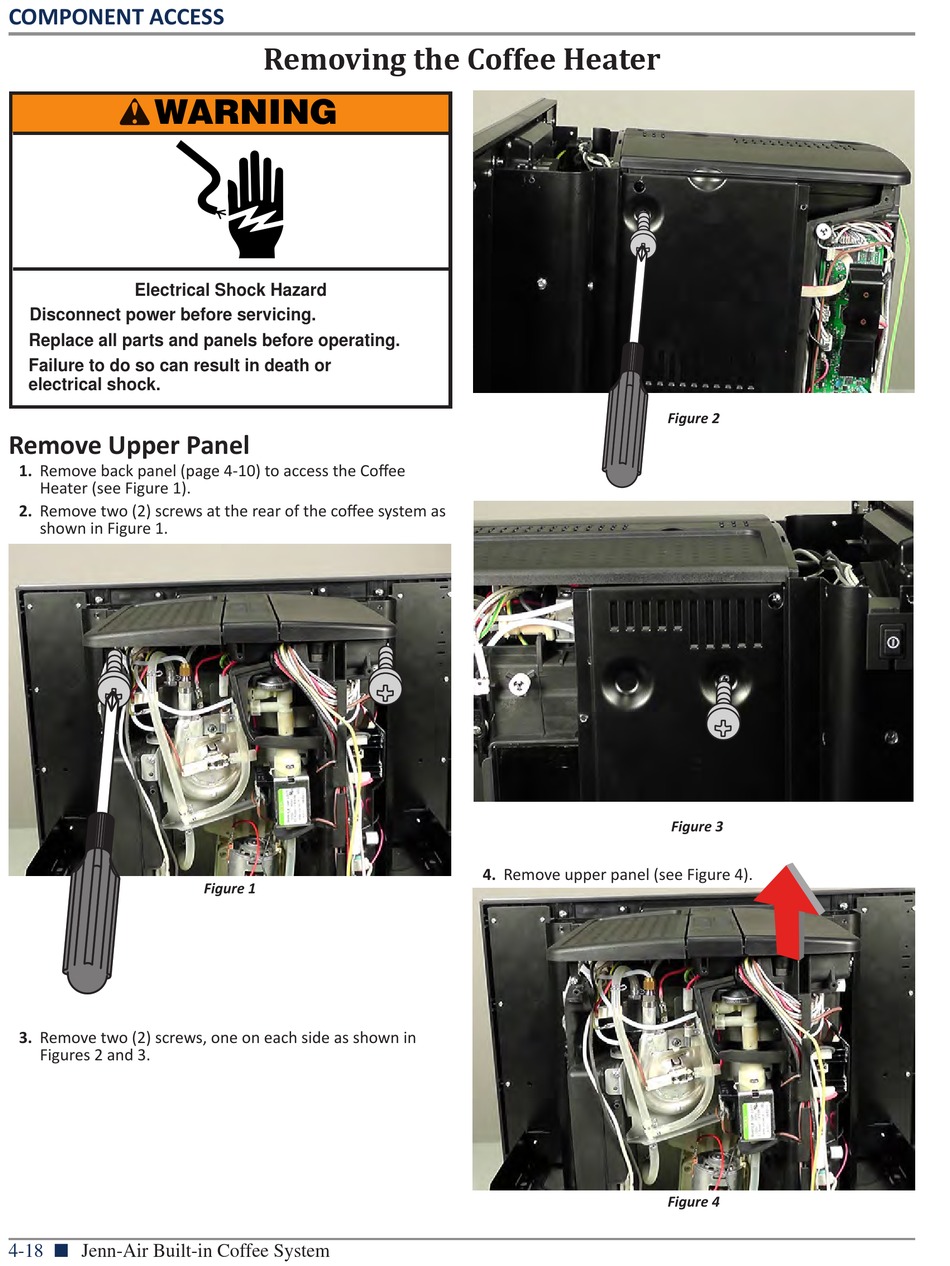

Removing The Coffee Heater - Jenn-Air JBC7624BS Technical Education

COMPONENT ACCESS
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or
electrical shock.
Remove Upper Panel
1. Remove back panel (page 4-10) to access the Coffee
Heater (see Figure 1).
2. Remove two (2) screws at the rear of the coffee system as
shown in Figure 1.
3. Remove two (2) screws, one on each side as shown in
Figures 2 and 3.
4-18 Jenn-Air Built-in Coffee System
n

Removing the Coffee Heater

Figure 1
4. Remove upper panel (see Figure 4).
Figure 2
Figure 3
Figure 4
