TAME MACHINE
Version 1.00
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tame Machine and is the answer not in the manual?

Questions and answers

Related Manuals for Flame Tame Machine

Summary of Contents for Flame Tame Machine

  • Page 1 TAME MACHINE Version 1.00 MANUAL...

  • Page 2: Table Of Contents

    Manual FlaMe TaMe Machine Version 1.00 contents 1. Short description ..................3 2. First steps/hardware ................. 4 2.1 Modul overview 2.2 Connection to the modular system (Doepfer bus) 3. Keyboard ....................6 4. Quantizer ....................6 4.1 Input/output 4.2 Trigger/link 4.3 Scale...

  • Page 3: Short Description

    1. ShorT deScriPTion QUanTiZer SecTion The module is a combination of quantizer and beat looper. A quantizer converts a continous voltage (on CV-input) in the range of 0...+5V into a stepped output voltage in the same volta- ge range. The scale assigns the possible voltage states. The quantizer can be triggered per external trigger input or per link of the pulse from the beat section.

  • Page 4: First Steps/Hardware

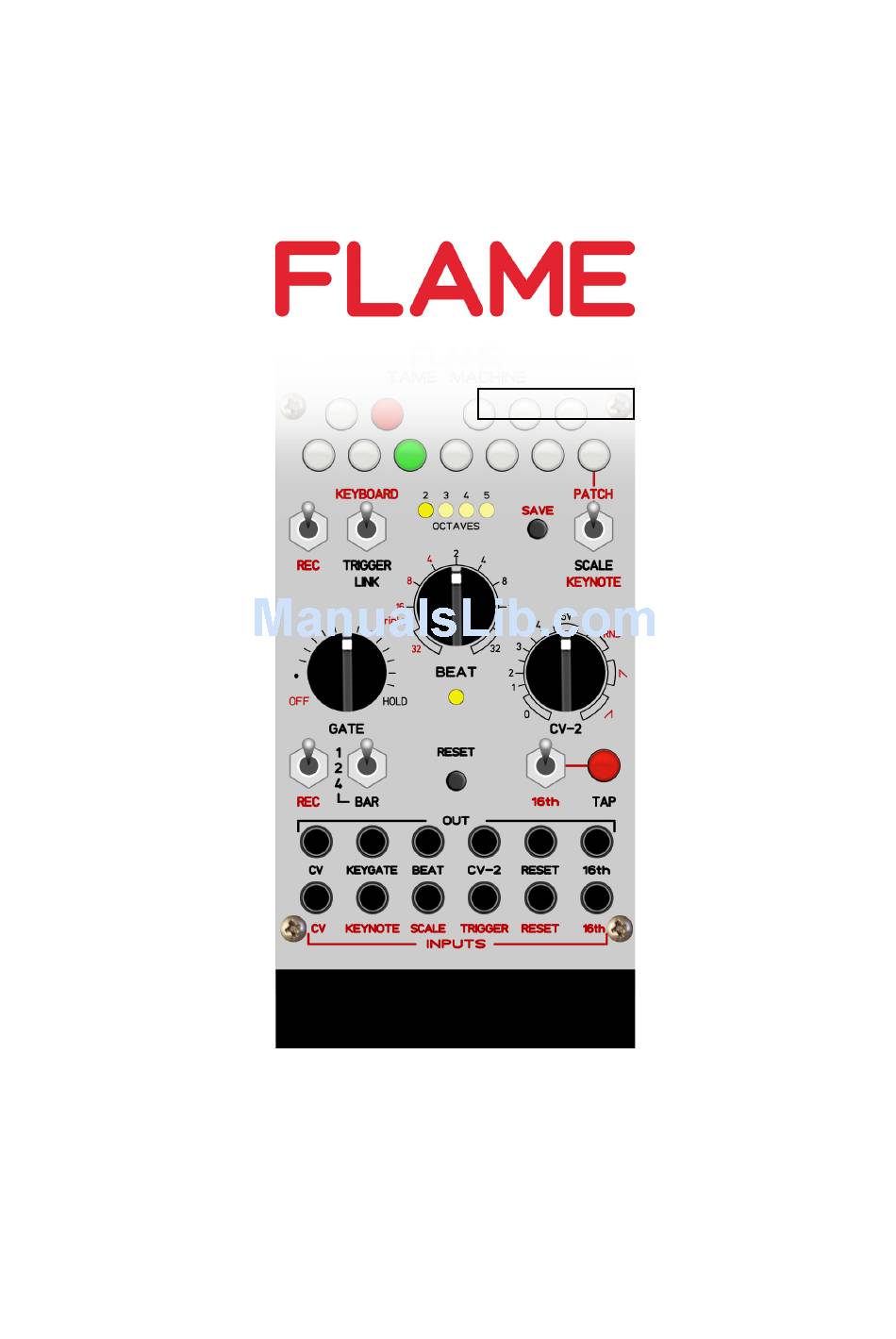

    2. FirST STePS/hardware 2.1 Modul overview a Outputs (top row from left): 1 Keyboard 2 Switch RECORD note/keynote - CV (CV-Quantizer) 3 Switch mode - Keygate (Gate of keyboard) 4 Octaves indication - Beat (Pulses of beat section) 5 Key SAVE - CV-2 (Voltage of CV-2 ruler) 6 Switch Patch/Scale/Keynote - Reset (Reset pulse)

  • Page 5: Connection To The Modular System (Doepfer Bus)

    2.2 connection to the modular system (doepfer bus) The module is delivered with a connected ribbon cable for the Doepfer bus. The red lead marks -12 volt. Connecting the module please note the right polarity! If the module is poled accidentally wrong safety diodes avoid the immediate destruction of the module but further damages cannot be excepted.

  • Page 6: Keyboard

    GATE 3. KeyBoard If mode switch 3 is in position KEYBOARD then the keyboard buttons can be used like a mini keyboard (the note output is the CV output). If a key is pressed then the KEYGATE output goes on (high level). If a key is released then ms Bereich the KEYGATE output goes off (low level).

  • Page 7: Scale

    4.3 Scale you access a stored scale manually this way: Set switch 6 at position PATCH (switch 3 at TRIGGER or LINK). - set the bank in the upper key row (red color) (#C, #D, #F, #G=preset bank 1-4, #A=user bank 5) - set the patches of banks (1-7) in the lower key row (green colour) you access a stored scale automatically per external cV this way: In any order of switch 6:...

  • Page 8: Beat Looper

    5. BeaT looPer 5.1 General information The beat looper generates a pulse sequence with adjustable GATE length and beat raster. The tempo is determined internally per TAP or externally per 16th pulse sequence. The per- formed beat raster can be recorded or looped up to 4 measures (see chapter 6). 5.2 Tempo/Synchronisation If the Tap switch 15 is in upper position the sequence runs with internal tempo.

  • Page 9: Reset

    5.5 reset A Reset sets the beat pattern on ONE of measure 1 and also sets the reset output to high. A Reset can be released manually per RESET key or externally per high impuls on RESET input. The module generates automatically a reset pulse on measure 1 (pulse lenght=16th). The reset imulse is necessary than if the sequence should synchronised on ONE.

  • Page 10: Record And Loop Functions

    6. record and loop functions record: Record in REC switch position on top and playing of the parameters in switch position at bottom. liST oF recorded ParaMeTerS oF The rec SwiTcheS: Rec switch 2 (switch 3 is in position KEYBOARD): - Keynotes of the Keyboard and the moves of CV-2 ruler between 1..5 (= the octaves of key- board notes) Rec switch 2 (switch 3 is in position TRIGGER or LINK):...

  • Page 11: Patch Examples

    7. PaTch exaMPleS Trigger delay (adjustment of delayed CV input) GaTe msec Range GaTe Manually playable pulsative low-pass-filter (inclusive note quantizing) Quantizing of CV-sequences (inclusive pulsative low-pass-filter)

  • Page 12: Appendix And Technical Informations

    8. aPPendix and Technical inForMaTionS 8.1 Technical details Inputs: 0..+4,8v CV-KEYNOTE 1..+1,92v CV-SCALE 1..+3,84v TRIGGER 0/+5v RESET 0/+5v 16th 0/+5v Outputs: 0..+5v (1volt/octave) CV-2 0..+5v KEYGATE +0,3/+10v BEAT +0,3/+10v RESET +0,3/+10v 16th +0,3/+10v Size: 3HU, 14HP 128,5mm x 70,8mm Current consumption: max.180mA (+12v) max.

  • Page 13: List Of External Cv Scale

    Advice: This operation transcribes the user scales! 8.5 Firmware update via USB By means of software FLIP by ATMEL it is possible to make a firmware update. A detailed description you can find in PDF document „firmware update per USB“ at website: http://flame.fortschritt-musik.de...

  • Page 14: Additional Informations

    - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame.fortschritt-musik.de 9.2 Terms of production conformity: CE, RoHS, UL 9.3 disposal...
