FLAME
µMLFO
MANUAL
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mMLFO and is the answer not in the manual?

Questions and answers

Related Manuals for Flame mMLFO

Summary of Contents for Flame mMLFO

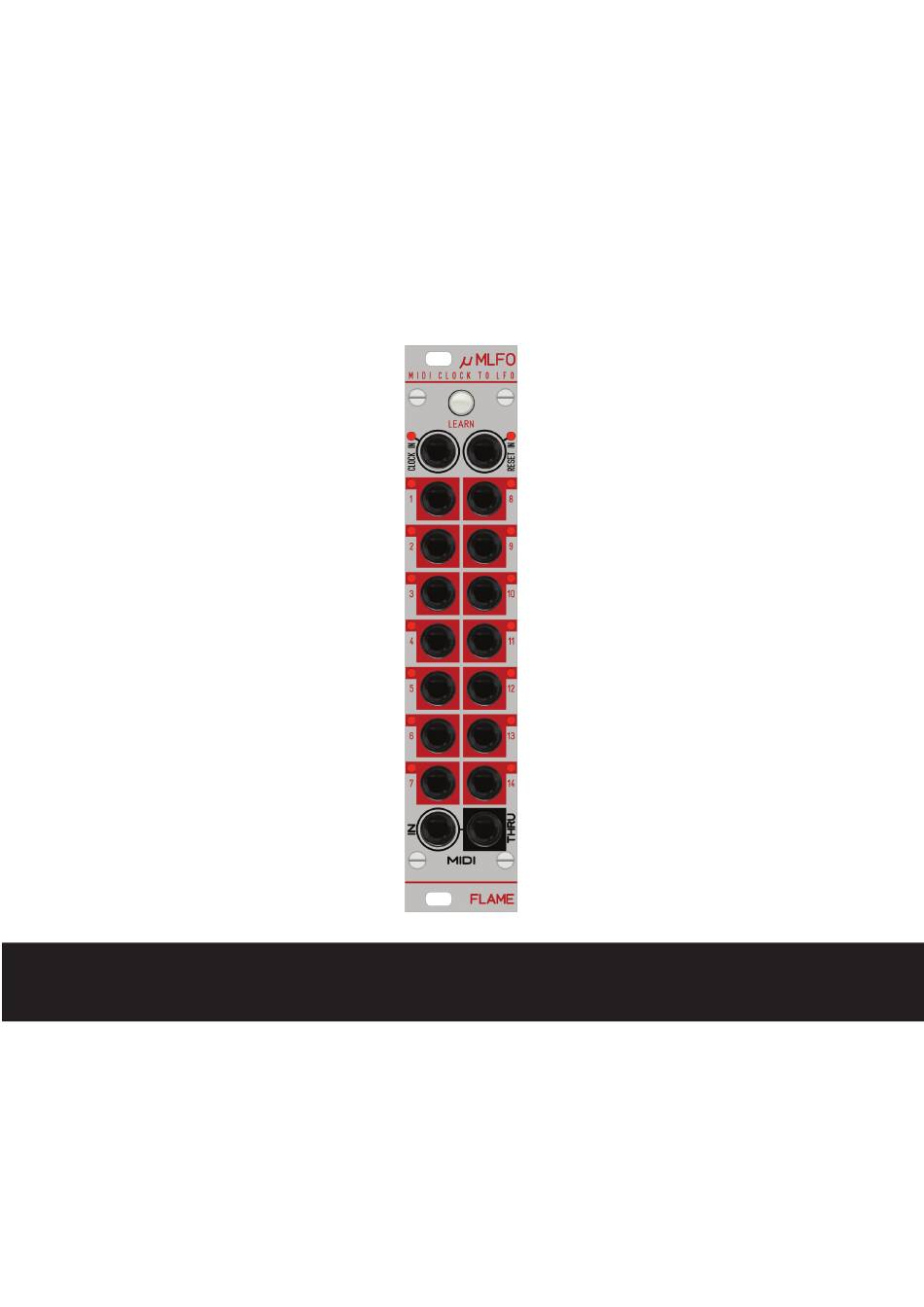

  • Page 1 FLAME µMLFO MANUAL Version 1.00...

  • Page 2: Table Of Contents

    Manual FLAME MLFO Version 1.00 Contents 1. Short description..............2. Hardware / connections............. 2.1 Connection to the modular system (Doepfer bus) 2.2 Module overview 2.3 MIDI connections 3. Handling ................3.1 RATE - CLOCK MODI 3.2 LFO WAVE (Waveforms) 3.3 LFO PHASE (Phase shift) 3.4 SYNC - RESET...

  • Page 3: Short Description

    1. Short description The "µMLFO" module provides 14 synchronizable (or free-running) LFOs with bipolar voltage output (+-5V). It can be operated via MIDI or analog clock. The tempo of the LFOs is determi- ned by the speed of the corresponding clock and the divider settings (rate). After receiving a MIDI Start command, the LFOs will run to MIDI clock and will then sync their rate accordingly.

  • Page 4: Module Overview

    2.2 Modul overview Analog 16th clock Gate/Trigger input (0/+5v) Analog Reset Gate/Trigger input (0/+5v) 14 LFO outputs bipolar (-5v..+5v) LEARN key MIDI input (MIDI TRS-B standard) MIDI THRU output (MIDI TRS-B standard)

  • Page 5: Midi Connections

    2.3 MIDI connections The module has two MIDI sockets (TRS-B standard mini jacks) INPUT and THRU. Connect the MIDI input to the MIDI output of your keyboard / sequencer or computer. The data received at MIDI-IN is forwarded via MIDI-THRU. A corresponding commercially available adapter (MIDI-DIN to Mini TRS- B) or a 3.5mm (1/8 inch) stereo jack cable is used for the MIDI connection.

  • Page 6: Handling

    3. Handling 3.1 RATE - CLOCK MODI RATE (LFO Speed) The LFO speed results from the tempo of the external analog or MIDI clock and from the RATE divi- ders specified in the patch (see list of patches and SYSEX values). Values between 32nd notes and 128 bars can be set.

  • Page 7: Lfo Wave (Waveforms)

    3.2 LFO - WAVE (Waveform) The module has 17 different waveforms (numbers 0-16). These are or can be placed on any out- put. The assignments of the outputs are defined in 12 unchangeable preset patches, but anot- her 12 patches can be loaded via SYSEX file. The waveforms are generated digitally according to the DDS principle (Digital Direct Synthesis).
  • Page 8 (Sample & Hold 2 - sequence) 16 step square sequence. (Sample & Hold 3 - sequence) 16 step square sequence. (Sample & Hold 4 - sequence) 16 step square sequence. ECHO1 (pulse echo) Linearly decreasing 8 step pulse sequence. ECHO2 (Pulse Echo) Linearly decreasing 16 step pulse sequence.

  • Page 9: Lfo Phase (Phase Shift)

    3.3 LFO - PHASE (Phase shift) The starting point of the waveform can be set in 22.5° increments. This allows, for example, offbeat waveforms to be realized at the same rate (180° shift). In the 12 preset patches you will find some preset phase shifts (see list). You can change the phases of the LFOs in the 12 user patches via SYSEX (see appendix SYSEX).

  • Page 10: Patch Select - Learn Function

    To change the patch, send MIDI notes on the set receive channel. The patches are over 2 octa- ves starting at note number 36 (see graphic). On the Flame website in the download area you will find some ready-made SYSEX files for USER presets and GLOBAL SETUPs.

  • Page 11: Patch Overview

    4. PATCH OVERVIEW 4.1 LIST OF PRESET PATCHES 1-4 PATCH 1 “Dotted Mix” PATCH 2 “Classic Waves” WAVE RATE PHASE RESET WAVE RATE PHASE RESET Square 16th 0° Sine 0° Down_Exp 0° Sine 0° Down-Exp 0° Up-lin 0° Up-Lin 0° Up-lin 1Bar 0°...
  • Page 12 4.2 LIST OF PRESET PATCHES 5-8 PATCH 6 “Beats 2” PATCH 5 “Beats 1” WAVE RATE PHASE RESET WAVE RATE PHASE RESET DownExp 16th 0° 1Bar 0° DownExp 0° 1Bar 0° DownExp 0° 2Bars 0° DownExp 0° 2Bars 0° DownExp 1Bar 0°...

  • Page 13: List Of Preset Patches

    4.3 LIST OF PRESET PATCHES 9-12 PATCH 10 “Mixed” PATCH 9 “Triplets” WAVE RATE PHASE RESET WAVE RATE PHASE RESET Down-Exp 16th 0° Square 16th 0° Down-Exp 8th-Tri 0° Down-Exp 8th-Tri 0° Down-Exp 0° Down-Exp 1/2-Tri 0° Down-Exp 4th-Tri 0° Triangle 1/2-Tri 0°...

  • Page 14: Sysex Data Format

    - the MIDI receive channel for selecting a patch: value range 0-15 - Number of the patch, which is automatically loaded when switching on: value range 0-23 11110000 Exclusive Status 01111101 Header Flame module 00001011 Flame module “µMLFO” 00000001 version 1...
  • Page 15 - 1 byte global reset value of the patch (in bars 1-12, 0=off) - 70 bytes of data from the 14 LFOs, each with values for phase, rate, wave, reset on/off 11110000 Exclusive Status 01111101 Header Flame module 00001011 Flame module “µMLFO” 00000001 version 1...

  • Page 16: Appendix And Technical Informations

    - electric damage caused by improper connecting (wrong power supply/ jacks/ MIDI connections/ voltage problems). If you have any complaints please contact your dealer or send an e-mail to: service@flame-instruments.de 4.3 Terms of production conformity: CE, RoHS, UL 4.4 Disposal The device is produced with RoHS-conformity (subject to the regulations of the European Union) and is free of hazardous substances (like mercury, plumb, cadmium and hexavalent chrome).
