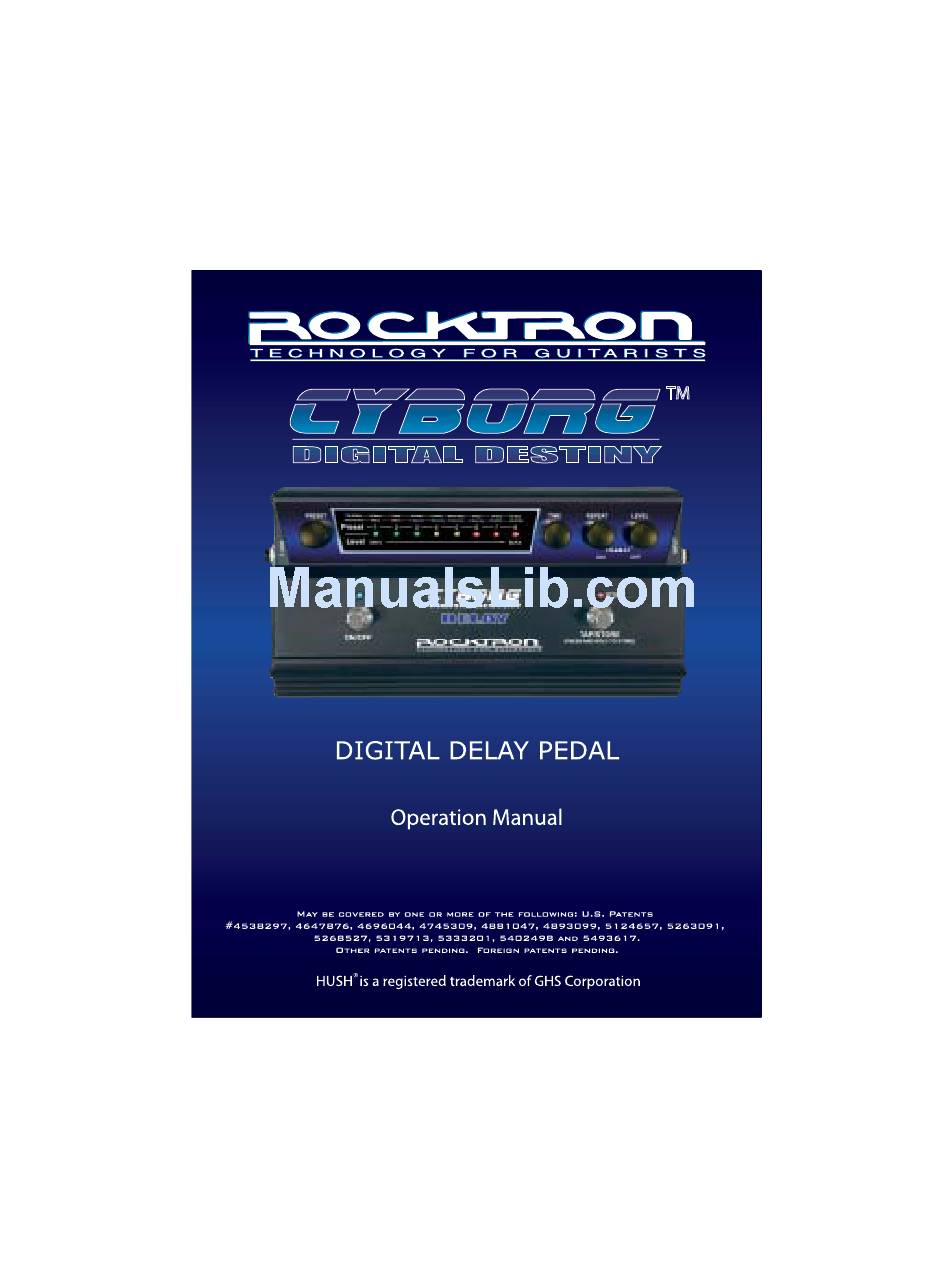

Summary of Contents for Rocktron Cyborg
- Page 2 This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website - www.rocktron.com). Precautions Read all instructions contained in this manual.
-
Page 3: Operating Temperature
Precautions Continued..Do not block any ventilation openings (if applicable). Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. This product is supplied with and runs on a 9VDC adapter. Only used attachments/accessories specified by the manufacturer. - Page 4 Introduction Congratulations on your purchase of the Rocktron Cyborg Digital Delay. The Cyborg Digital Delay is one of a series of “Digital Destiny” stomp boxes that break new ground in the world of floor effects excellence. Simple to use, while...
- Page 5 Connection 1 - Standard Connection...
- Page 6 Connection 2 - Effects Loop...
- Page 7 Connection 3 - with a Noisy Distortion Pedal...
- Page 9 LEDs will turn off from right to left. DC OnTap Power input. Use the supplied Rocktron DC OnTap adapter to power your Cyborg pedal. Plug into a standard wall outlet and follow all safety precautions. Input Jack - plug your guitar into this jack. See preceeding pages for standard connections.
- Page 10 On/Off Footswitch and LED - this footswitch is used to turn “ON” or “OFF” the Cyborg Delay. When the LED is lit , the delay is “ON” Output Jack - Using a standard guitar cable with a 1/4” jack, plug into your amplifier or the next effect pedal in your signal chain.
- Page 11 HUSH is Rocktron's patented single-ended noise reduction system, and is available in all presets. The HUSH system provided in the Cyborg is a fully digital implemen- tation, modeled after the latest analog HUSH design, achieved through Digital Signal Processing (DSP).
-
Page 12: Led Display
1) TAP BUTTON - The parameter available on Preset 1 is an 1/8 note parameter. This means that on Preset 1 the Cyborg will measure on half of the time between taps to set the delay time when using the TAP/STORE footswitch to determine the delay time. - Page 13 3) The LEVEL setting parameter shows the LEVEL settings of the following parameters: o The Time Control Knob (Point 3). Turning the Time Control knob will light LEDs in the display to show you the Delay time length that you have selected within the preset.
- Page 14 LED Display...continued... Tap Button and Time Control The top line in the LED display is the TAP BUTTON. As described in (point 9) of the description section of this manual, this line indicates the tap parameter available on each preset when using the TAP/STORE footswitch to determine the delay time.
- Page 15 Tap Button and Time Control Line...continued Preset 5 has a Whole note tap parameter. This parameter is equal to 4 times the amount of time between taps. The Delay time available on this preset is 0ms-2 seconds. Preset 6 tap parameter is actually a “HOLD” function. Using the TAP/ STORE footswitch you can create a “loop”...
-
Page 16: Hold Function
Hold Function The Hold function allows you to record a quick riff which you can then play over. The HOLD function is only available on Preset 6. When you active preset 6 by turning on the delay using the ON/OFF switch (point 10) the delay will function as it would normally. -
Page 17: Midi Connection
MIDI The Cyborg Delay pedal has a MIDI jack that allows you to access an additional 56 user presets. Using the Rocktron MIDI Breakout cable (sold separately) you can access these additional 56 presets (64 total) by using a Rocktron MIDI Controller such as the Rocktron MIDI XChange, MIDI Mate or All Access. - Page 18 MIDI - Connection 2...
-
Page 19: Midi Controller
2) Now adjust preset with control knobs to make your desired changes. 3) Once you have created your preset press and hold down the TAP/STORE Button on the Cyborg pedal until the led indicates the store process is completed. (LED will hold bright then return to Tap Delay blinking status) - Page 20 Email: info@rocktron.com www.rocktron.com The Rocktron, Cyborg, PHAZDLY names and logos, this pedal’s shape, design and graphics and this manual’s layout, descriptions and designs are TM, C and R - GHS Corporation, Battle Creek, MI 49015 - - All Rights Reserved 2006-0001 Rev.
