Summary of Contents for Rocktron HUSH Super C
-
Page 2: Table Of Contents
Also, bundle audio cables separately from the AC power cables. These steps will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the enclosed warranty sheet). -
Page 3: Introduction
Introduction ® Congratulations on your purchase of the Rocktron HUSH Super C! Designed for guitar applications, the Super C utilizes the latest in our HUSH noise reduction technology combined with the latest V.I.R. (Variable Integrated Release) circuitry configured as a noise gate. This combination provides extremely effective noise reduction while playing and complete silence when not. -

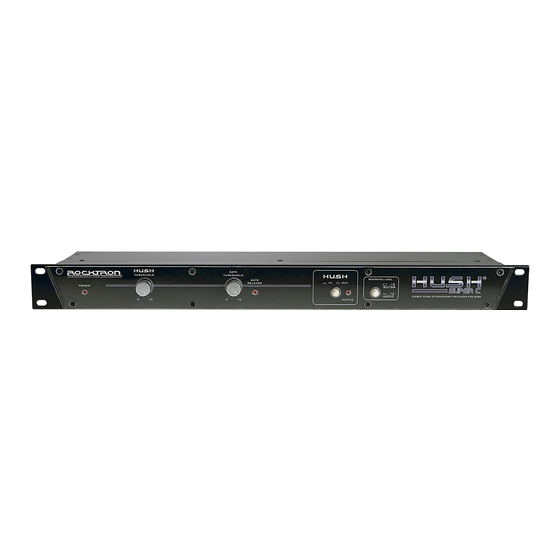

Page 4: Super C Front Panel
Super C Front Panel POWER LED When lit, this LED indicates that the Super C is powered and ready for operation. HUSH THRESHOLD control This control sets the point at which the downward expander and dynamic filter begin to operate. GATE THRESHOLD control and GATE RELEASE LED This control is used to determine the level at which the gate will begin to operate. -
Page 5: Super C Rear Panel
Super C Rear Panel CH. A (MONO) / CH. B IN jacks These ¼" mono jacks provide inputs to the left and right channels of the Super C. When using only one input, the "CH. A (MONO)" jack must be used. CH. -
Page 6: System Connections
System Connections Mono Applications... -
Page 7: Stereo Applictions
Stereo Applications... -
Page 8: Guitar Combo Amp Connection
Combo Amp Connection... -
Page 9: Guitar Amp Head Connection
Amplifier Head Connection... -
Page 10: Bass Combo Connection
Bass Combo Connection... -
Page 11: Bass Head Connection
Bass Head Connection... -
Page 12: Operation
Operation When used properly, the HUSH Super C should be completely transparent (i.e., it should not effect the guitar signal—only the noise). To maximize the performance of the Super C, it is necessary to understand its front panel controls and how they work together. - Page 13 This means that if a signal is present at the input which consists of primarily bass components, the dynamic filter will reduce mid or high band noise. If no mid or high band information is present, the filter will close down to a pre-set cut-off point of 1kHz (allowing only frequencies of 1kHz and below to pass).
-
Page 14: Gate Section
The front panel HUSH Threshold control determines the minimum input level at which the HUSH filter and downward expander will begin to operate. Setting this control too high will result in a loss of sustain, as notes will tend to die out much faster than they should. Conversely, when set too low, the expander will close too late (if at all) and the noise floor will remain audible Gate Section The other half of the Super C consists of a noise gate. -
Page 15: Other Rocktron Products
Other Rocktron Products Rack Gear: Gainiac 2 (preamp w/12ax7 tube) Xpression (multi-effects processor) Blue Thunder (bass preamp w/multi-effects) Voodu Valve (preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line preamp with multi-effects) HUSH Super C (guitar noise silencing system) ... - Page 16 Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com Check us out on the web at: www.rocktron.com 2005-0001 Rev. 4/01/05...
