9 Dataset management

What is a dataset ?
!
CAUTION
Principle
40
9 Dataset management
A dataset is used for the parameterization of the press system, to adapt it,
for example, to the production of different parts. A dataset includes all
•
Working parameters (user data input)
•
Monitoring parameters (8 tolerance windows, 4 stroke tolerances)
•
Setting of the process data acquisition (zoom window, type of
representation, etc.).
9.1

Principle of the dataset management

Loss of the dataset due to replacement or defect of the control
The parameters and settings mentioned above can be stored for 20 datasets
in 20 memory locations of an EPROM in the control.
In the case of control replacement (i.e., changing location) or a defect in the
control, the datasets can get lost.
Make note of the most important settings after having set up the
working process.
Use the optional SCHMIDT
management on a computer.
Input
Parameters
+
Tolerances
save
(copy)

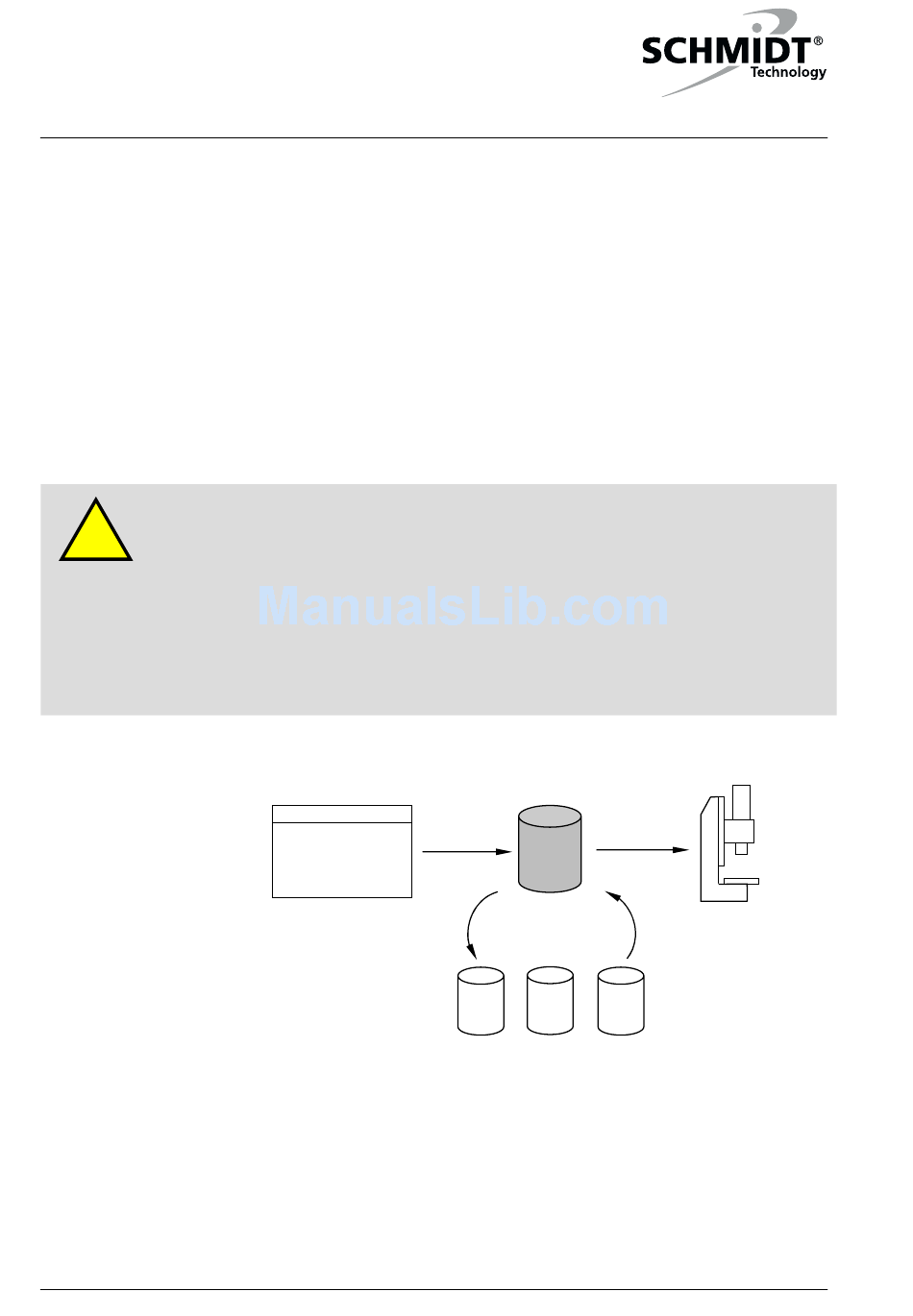

Figure 9-1: Principle of dataset management in the control
The data contained in the system dataset is used to operate the press
system. To achieve this, a user dataset is loaded to the system dataset. It
can now be edited for the press system operation via the "Data Input".
®
ControlTool software for dataset
System dataset
...
...
1 2 20
User datasets
SCHMIDT
load
(copy)
®
PressControl 3000 – V1.3
