7 Press processes
Calculate deflection
Enter deflection
28
F

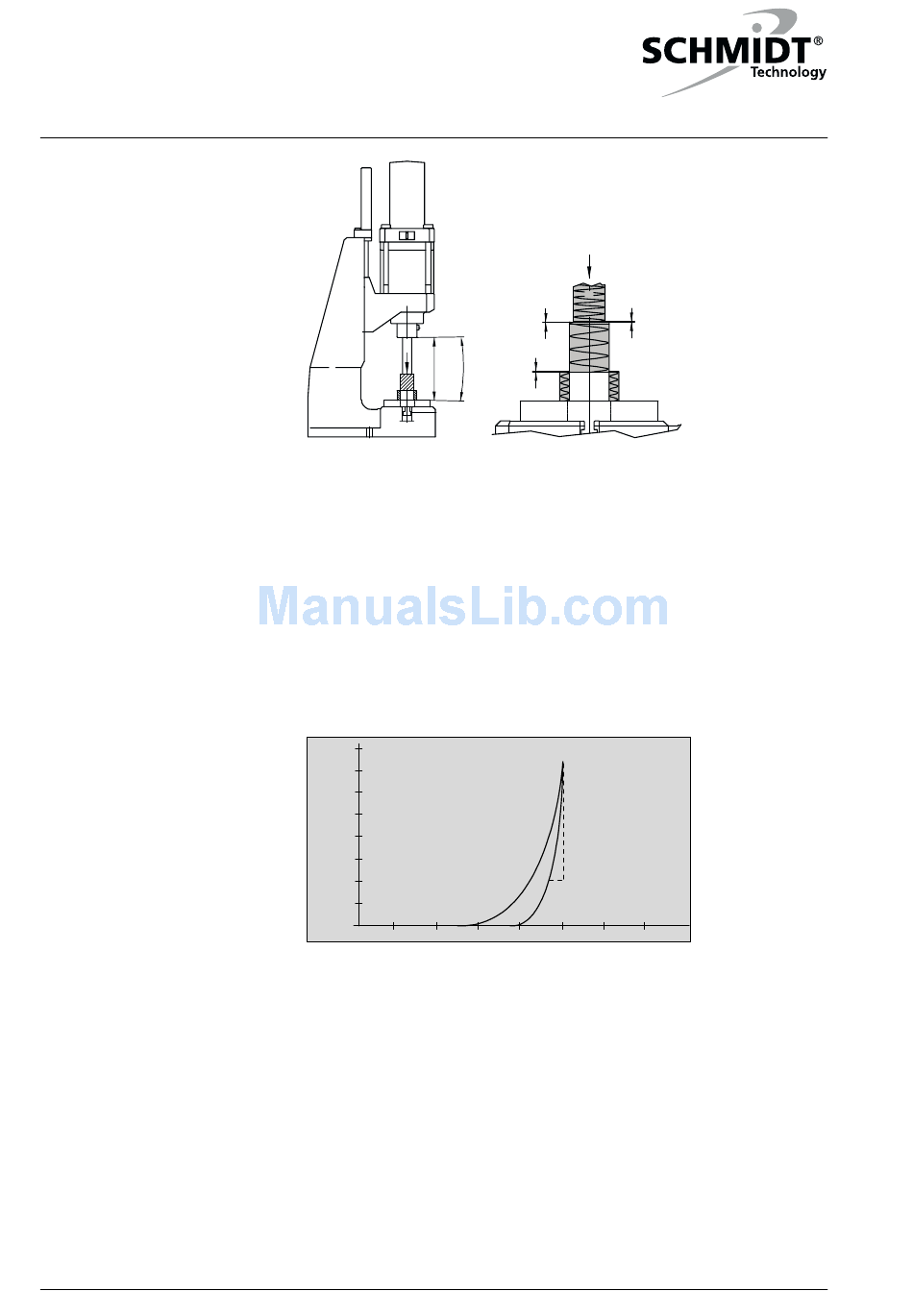

Figure 7-1: Positioning error due to deflection or compression
1 Deflection
2 Compression
After you have completely set up the press system (with tools), you can
calculate the deflection. This can be done based upon a normal press
sequence.
Select the "Curve Output" system function key.
Press a workpiece and record the force/stroke curve.
Enlarge the curve section so that the press start and press end are
visible.
2 . 0 0
F [ k N ]
1 . 5 0
1 . 0 0
. 5 0 0
0 . 0
1 0 . 0 0
Figure 7-2: Calculate deflection
Calculate the deflection.
Sample calculation:
Select the "Data Input" system function key.
Select the "Bend up [mm/kN]" parameter.
Enter the calculated value
F
2
1
2
∆F
∆s
2 0 . 0 0 3 0 . 0 0 4 0 . 0 0
Stroke difference ∆s = 2 mm
Force difference ∆F
Deflection ∆s/∆F
SCHMIDT
2
s [ m m ]
= 1,7 kN
= 1,176 mm/kN
®
