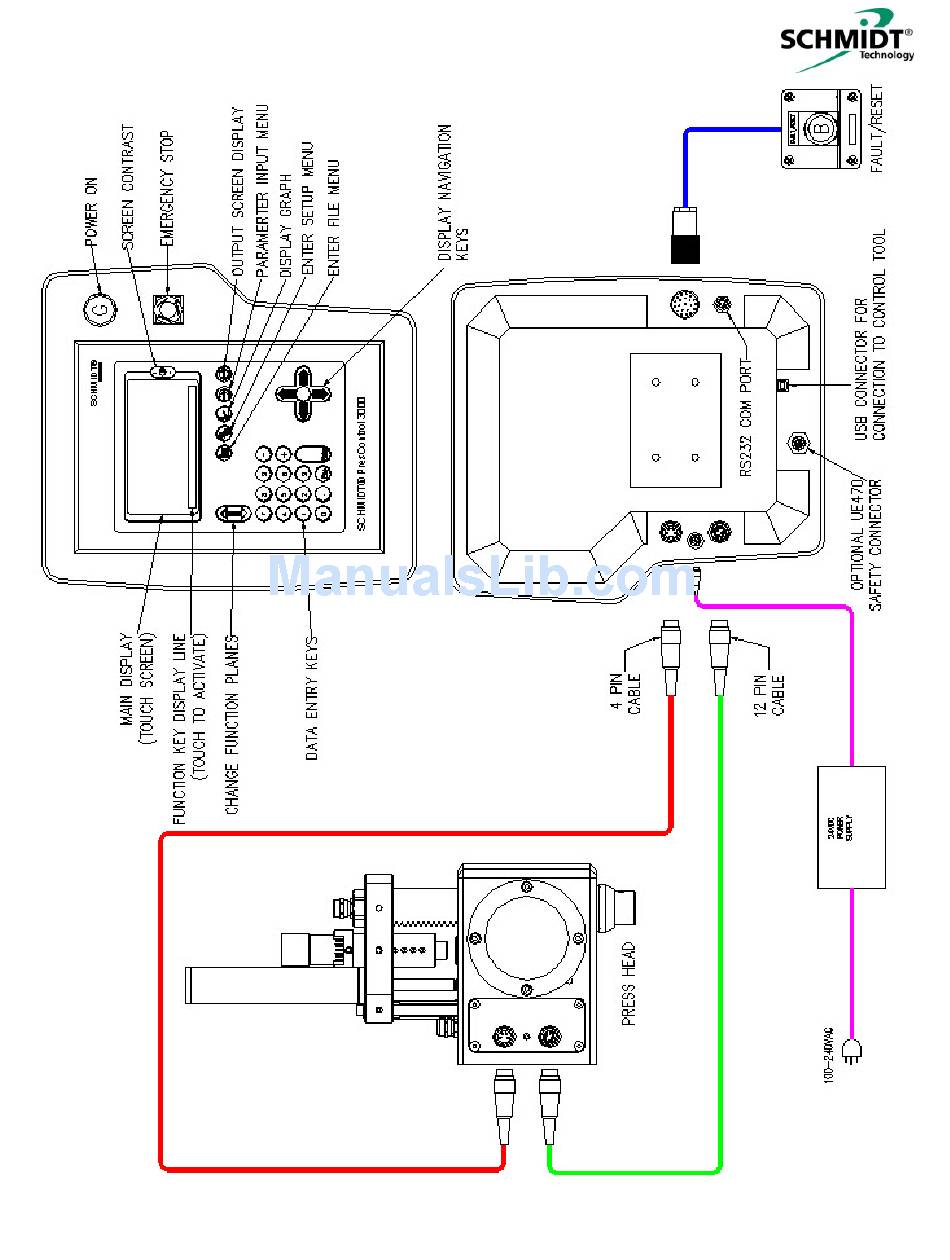

- Page 1 Quick Start Guide – Press Control 3000 – 300 Series Manual Press PRC3000ManPressQuickStart.doc Page 1 of 4 July 2009...
- Page 2 Quick Start Guide – Press Control 3000 – 300 Series Manual Press Power up & initialize press 1. Turn control on using green power button. 2. Operate press for “reference stroke”. Parameter Input Screen 0 Mode: F=0, s=1, m=2 F – Force S –...
- Page 3 Quick Start Guide – Press Control 3000 – 300 Series Manual Press Data Output Screen 2 Force Should be approx. Stroke 1mm (0.040””) after Increment force reference stroke Increment stroke 3265 inc Offset force 0 < Value < 350 Press twice to enter data output screen 2 Data Output Screen 2 Information: •...
- Page 4 Quick Start Guide – Press Control 3000 – 300 Series Manual Press Sample setup parameters: Press to a distance 1. Press D-In Key 2. Line 0 – set to 1 (for stroke – mode) 3. Line 1 – set to 100 N 4.
