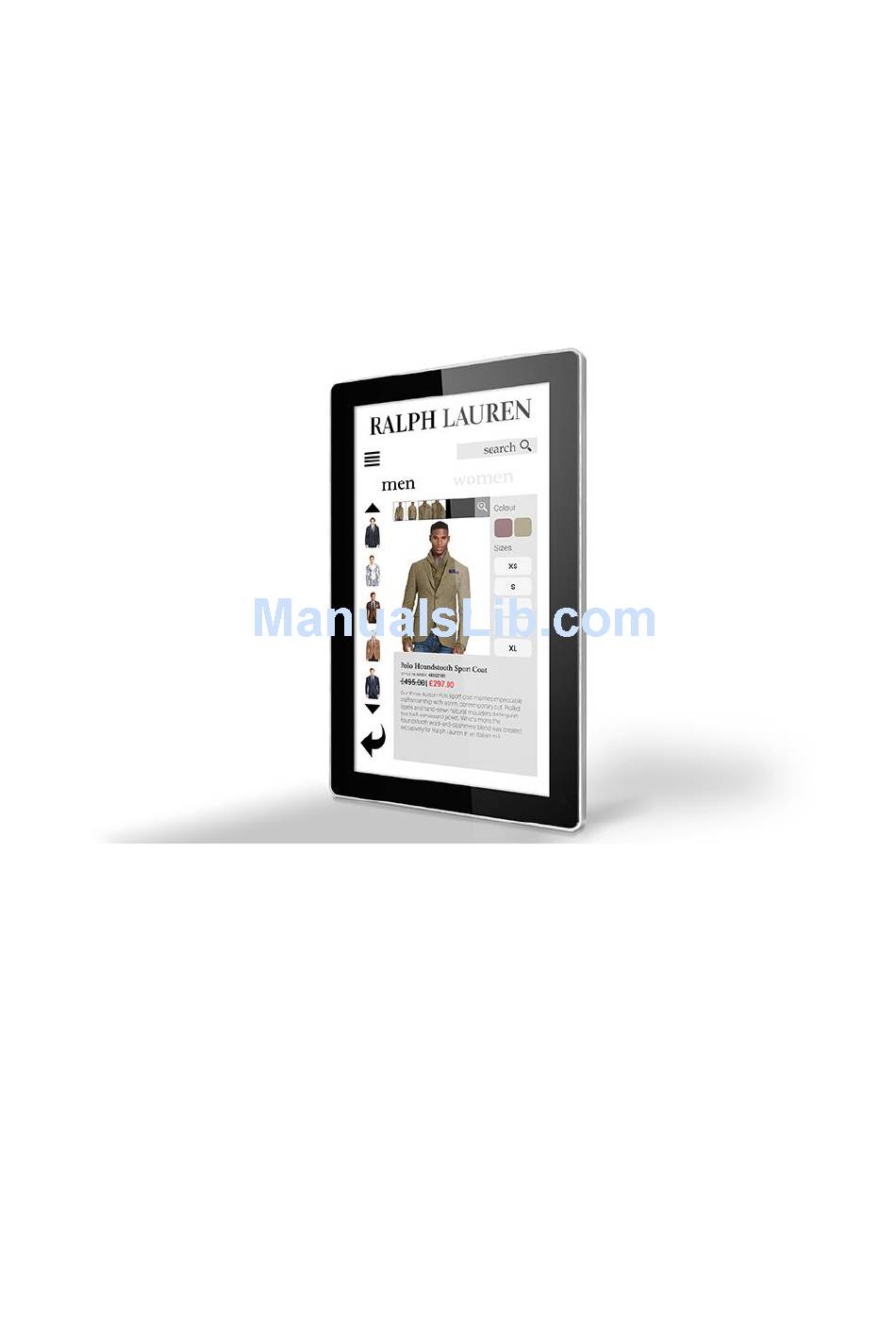

PCAP Multi Touch Screen Display with Dual OS
User's Manual
Manual Version AOE1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCAP Multi Touch Screen Display and is the answer not in the manual?

Questions and answers

Related Manuals for AllSee Technologies PCAP Multi Touch Screen Display

Summary of Contents for AllSee Technologies PCAP Multi Touch Screen Display

  • Page 1 PCAP Multi Touch Screen Display with Dual OS User’s Manual Manual Version AOE1.0...

  • Page 2: Safety Instructions

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Safety Instructions  Please keep the display away from any heat sources such as electric radiators or direct sunlight. Place the display in a stable and well-ventilated place.  Please handle with care so as to not damage the LCD panel.

  • Page 3: Switching From Windows To Android

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Quick Start Guide (switching between Windows & Android) Begin by connecting a USB keyboard to your screen using one of the following USB ports: Switching from Windows to Android 1 of 8.
  • Page 4 PCAP Multi Touch Screen Display with Dual OS User’s Manual select the “Advanced” tab then go to and select “System Component”: 4 of 8. Select “OS IMAGE ID” and then select “Android”: 5 of 8. Press the “Esc” key to close option.

  • Page 5: Switching From Android To Windows

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Switching from Android to Windows 1 of 8. From the bottom navigation menu tap the “Restart” icon: 2 of 8. Using the keyboard start continually pressing the “DELETE” key until you see the following screen: 3 of 8.
  • Page 6 PCAP Multi Touch Screen Display with Dual OS User’s Manual 4 of 8. Select “OS IMAGE ID” and then select “Windows”: 5 of 8. Press the “Esc” key to close option. 6 of 8. Navigate to and select the “Boot” tab, then select “Boot Option #1” and choose “Windows Boot Manager”:...

  • Page 7: Figure 1 Screen To Pc Connections

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Quick Start Guide (connecting to an external PC/Media Player) Although the screen has a built in PC you can also connect it to an external source. The touch screen must be connected to the PC in two ways: visually and interactively. The recommended visual connection is via the HDMI Cable meaning that the display acts like a monitor for the PC.

  • Page 8: Table Of Contents

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Contents: Switching from Windows to Android ..................2 Switching from Android to Windows ..................4 Introduction ..........................9 Box Contents ........................9 Product Overview ......................10 Remote Control ......................11 Replacing the Remote Control Battery .................
  • Page 9 PCAP Multi Touch Screen Display with Dual OS User’s Manual Table of Figures Figure 1 Screen to PC Connections ...................... 6 Figure 2 Product Overview ......................... 10 Figure 3 Screen Inputs........................17 Figure 5 Screen to PC Connections ....................24...

  • Page 10: Introduction

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 1. Introduction Congratulations on your purchase of our product. Please read carefully and follow all instructions in the manual before first use. The product should not be exposed to liquids dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

  • Page 11: Product Overview

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 1.2 Product Overview Figure 2 Product Overview Page 10...

  • Page 12: Remote Control

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 1.3 Remote Control Page 11...

  • Page 13: Replacing The Remote Control Battery

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 1.4 Replacing the Remote Control Battery 1. Slide the battery cover off, as shown below. 2. Remove the used batteries. 4. Insert the two new AAA batteries with their terminals corresponding to the indicators.

  • Page 14: Menu Operation

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 2. Menu Operation The Menu features the following sections: Picture, Sound, Time and Option. Press “MENU” to bring up the menus, press ←→ to select the desired menu and ↑↓ to select the desired item, press “PLAY”...
  • Page 15 PCAP Multi Touch Screen Display with Dual OS User’s Manual Picture Here is where you can edit settings such as brightness, contrast, colour temperature and backlight brightness. Any settings that you change can be reset back to default at any time.
  • Page 16 PCAP Multi Touch Screen Display with Dual OS User’s Manual Sound In this menu you can adjust all of the sound settings for your monitor such as the sound mode EQ settings or the left/right balance. Any settings that you change can be reset back to default at any time.
  • Page 17 PCAP Multi Touch Screen Display with Dual OS User’s Manual Time Here you can set a time and date for your screen as well as scheduling daily on/off times for the built in power timer. You can also adjust at what temperature the internal fans become active.

  • Page 18: Inputs

    PCAP Multi Touch Screen Display with Dual OS User’s Manual Switching between inputs One crucial feature that does not appear on the Main Menu is selecting the input source. This is done by first pressing the “SOURCE” button on the remote control and then scrolling down to the desired input source and select by pressing “PLAY”.

  • Page 19: Switching Between Android And Windows

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 3. Switching between Android and Windows Begin by connecting a USB keyboard to your screen using one of the following USB ports: 3.1.1 Switching from Windows to Android 1 of 8.
  • Page 20 PCAP Multi Touch Screen Display with Dual OS User’s Manual 3 of 8. The rest of the steps will use the keyboard only. Please use the navigational keys (←,↑,↓ and →) to move around and the “ENTER” key to make a selection. Navigate to and select the “Advanced”...
  • Page 21 PCAP Multi Touch Screen Display with Dual OS User’s Manual 6 of 8. Navigate to and select the “Boot” tab, then select “Boot Option #1” and choose “Android-IA”: 7 of 8. Finally to save and exit press the “F10” key and then select “Yes”: 8 of 8.

  • Page 22: Switching From Android To Windows

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 3.1.2 Switching from Android to Windows 1 of 8. From the bottom navigation menu tap the “Restart” icon: 2 of 8. Using the keyboard start continually pressing the “DELETE” key until you see the...
  • Page 23 PCAP Multi Touch Screen Display with Dual OS User’s Manual 3 of 8. The rest of the steps will use the keyboard only. Please use the navigational keys (←,↑,↓ and →) to move around and the “ENTER” key to make a selection. Navigate to and select the “Advanced”...
  • Page 24 PCAP Multi Touch Screen Display with Dual OS User’s Manual 6 of 8. Navigate to and select the “Boot” tab, then select “Boot Option #1” and choose “Windows Boot Manager”: 7 of 8. Finally to save and exit press the “F10” key and then select “Yes”: 8 of 8.

  • Page 25: Connecting To An External Pc/Media Player

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 3.2 Connecting to an external PC/Media Player Although the screen has a built in PC you can also connect it to an external source. The touch screen must be connected to the PC in two ways: visually and interactively. The recommended visual connection is via the HDMI Cable meaning that the display acts like a monitor for the PC.
  • Page 26 PCAP Multi Touch Screen Display with Dual OS User’s Manual “Properties” (then “Settings”) or “Screen resolution”. You should now click “Detect” to allow the PC to discover the Video Monitor then “Identify” to establish which display is the Video Monitor.

  • Page 27: F.a.qs And Troubleshooting Guide

    PCAP Multi Touch Screen Display with Dual OS User’s Manual 4. F.A.Qs and Troubleshooting Guide 4.1 My Screen is not displaying what is on my PC/external source 4.1.1 Input Source Your screen may be sourcing its display from another input. First ensure that your screen is connected to your PC (or other video source) via one of the inputs.
