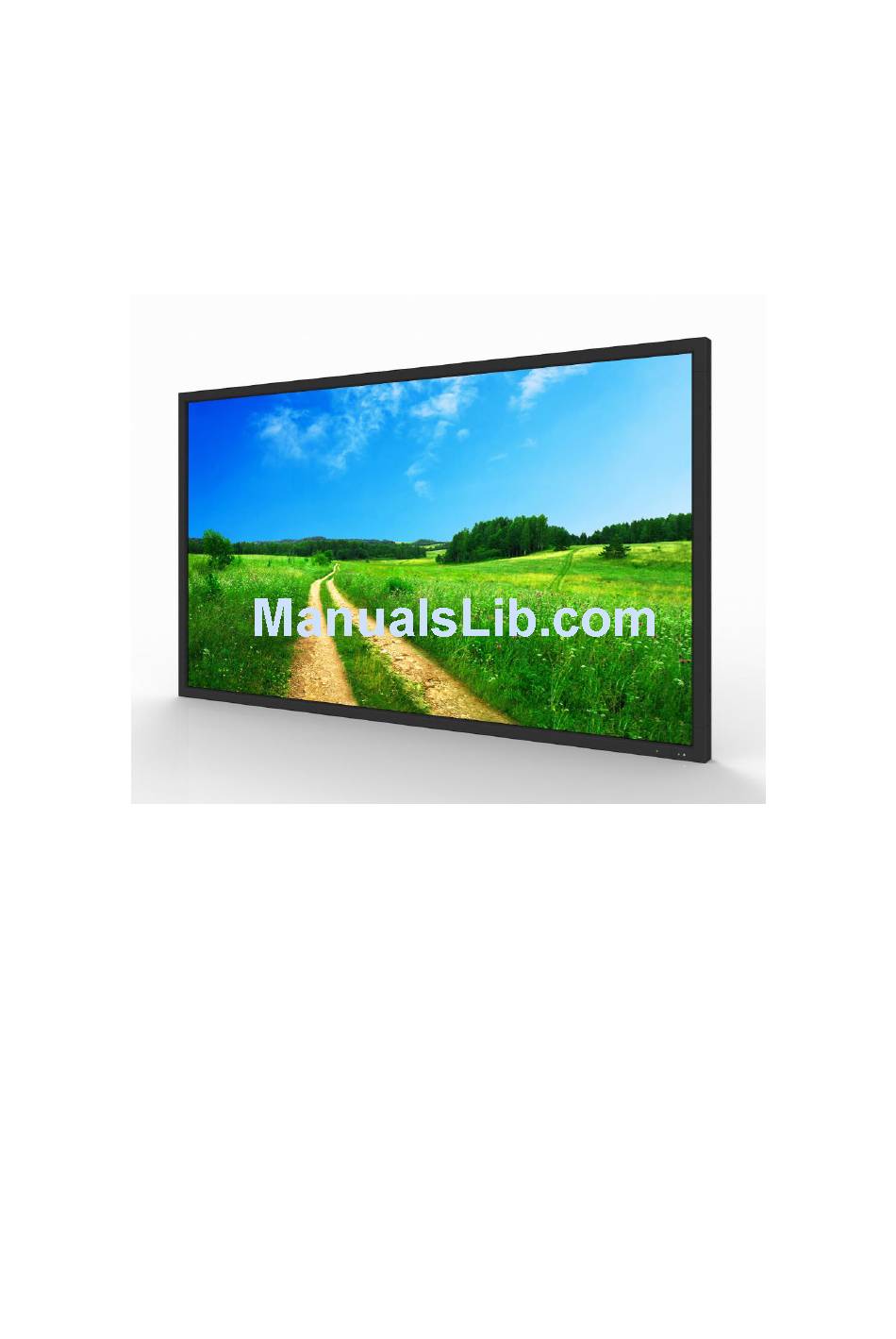

Professional LED Video Monitor
User's Manual
Manual Version MP2-B.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2-B and is the answer not in the manual?

Questions and answers

Related Manuals for AllSee Technologies P2-B

Summary of Contents for AllSee Technologies P2-B

  • Page 1 Professional LED Video Monitor User’s Manual Manual Version MP2-B.1...

  • Page 2: Safety Instructions

    Professional Monitor User’s Manual (P2-B) Safety Instructions  Please keep the display away from any heat sources such as electric radiators or direct sunlight. Place the display in a stable and well-ventilated place.  Please handle with care so as to not damage the LCD panel.

  • Page 3: Figure 1 Screen To Pc Connections

    Professional Monitor User’s Manual (P2-B) Quick Start Guide (connecting to PC) This section of the guide is to allow rapid set up and use of the unit. Please refer to the main part of the User Guide for full information on use of the unit.

  • Page 4: Figure 2 Usb Port Location

    Professional Monitor User’s Manual (P2-B) Quick Start Guide (Internal Media Player) The monitor has a simple built in media player that runs directly from a USB stick. This allows you to display a series of images and videos in a continuous loop. To use the screens internal media player please take the following steps: 1.

  • Page 5: Table Of Contents

    Professional Monitor User’s Manual (P2-B) Contents: Introduction ..........................6 Box Contents ........................6 Product Overview ......................6 Serial Control Box (silver remote box) ................7 1.3.1 Connection to the screen ..................7 1.3.2 Serial Control Box Overview ..................8 Remote Control ....................... 9 Replacing the Remote Control Battery .................
  • Page 6 Professional Monitor User’s Manual (P2-B) Table of Figures Figure 1 Screen to PC Connections ...................... 2 Figure 2 USB Port Location ........................3 Figure 3 Product Overview ........................6 Figure 4 Serial Control Box to Screen Connection ................7 Figure 5 Screen Inputs........................15 Figure 6 Ventilation Area ........................

  • Page 7: Introduction

    Professional Monitor User’s Manual (P2-B) 1. Introduction Congratulations on your purchase of our product. Please read carefully and follow all instructions in the manual before first use. The product should not be exposed to liquids dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

  • Page 8: Serial Control Box (Silver Remote Box)

    Professional Monitor User’s Manual (P2-B) 1.3 Serial Control Box (silver remote box) 1.3.1 Connection to the screen Before using the Remote Control the Serial Control Box (with the remote’s infrared sensor in it) must be connected to the screen. Figure 4 Serial Control Box to Screen Connection Unless Remote Control is faulty it is recommended that you do not attempt to change any settings with the Serial Control Box, only use it as a sensor for the main Remote Control.

  • Page 9: Serial Control Box Overview

    Professional Monitor User’s Manual (P2-B) 1.3.2 Serial Control Box Overview Button Function → Right navigation button adjust volume select in OSD menu ← Left navigation button select signals input adjust values MENU Open/close OSD menu or return to previous menu ↓...

  • Page 10: Remote Control

    Professional Monitor User’s Manual (P2-B) 1.4 Remote Control Page 9...

  • Page 11: Replacing The Remote Control Battery

    Professional Monitor User’s Manual (P2-B) 1.5 Replacing the Remote Control Battery 1. Slide the battery cover off, as shown below. 2. Remove the used batteries. 4. Insert the two new AAA batteries with their terminals corresponding to the indicators. 5. Put the cover back on.

  • Page 12: Menu Operation

    Professional Monitor User’s Manual (P2-B) 2. Menu Operation The Menu includes the following menus: Picture, Sound, Time and Option. Press “MENU” to bring up the menus, press ←→ to select the desired menu and ↑↓ to select the desired item, press “PLAY” to confirm selection. Press “menu” at any time to go back or exit.
  • Page 13 Professional Monitor User’s Manual (P2-B) Sound In this menu you can adjust all of the sound settings for your monitor such as the sound mode EQ settings or the left/right balance. Any settings that you change can be reset back to default at any time.
  • Page 14 Professional Monitor User’s Manual (P2-B) Time Here you can set a time and date for your screen as well as scheduling daily on/off times for the built in power timer. You can also tell the screen which input source you want it to start on. Your media player settings are also in this section –...
  • Page 15 Professional Monitor User’s Manual (P2-B) Option Under this menu are settings like on screen display language, on screen display duration time, and the video wall tiling settings. You can also restore all of the menus default settings and lock your screen so as you have to enter a password to access any of the menus.

  • Page 16: Inputs

    Professional Monitor User’s Manual (P2-B) Switching between inputs One crucial feature that does not appear on the Main Menu is selecting the input source. This is done by first pressing “SOURCE” and then scrolling down to the desired input source and select by pressing “PLAY”.

  • Page 17: Set Up

    Professional Monitor User’s Manual (P2-B) 3. Set Up 3.1 Ventilation If you are mounting your monitor in an enclosed space or recessed area please leave adequate room between the monitor and the enclosure to allow heat to disperse. We recommend the following the following space for ventilation.

  • Page 18: Connecting To Pc

    Professional Monitor User’s Manual (P2-B) 3.2 Connecting to PC The Video Monitor must be connected to the PC via a visual signal input. The recommended visual connection is via a HDMI Cable meaning that the display acts like a monitor for the PC –...
  • Page 19 Professional Monitor User’s Manual (P2-B) Before taking any more steps ensure that the screen is sourcing its display from the PC. This is done by first pressing “SOURCE” and then navigating to the desired input source (HDMI1) and select by pressing “PLAY”.
  • Page 20 Professional Monitor User’s Manual (P2-B) Select the display that corresponds with the Video Monitor display then check the box “Make this my main display” or “Use this devise as the primary monitor”. This will make the Video Monitor display your main monitor.

  • Page 21: Video Wall Setup

    Professional Monitor User’s Manual (P2-B) 3.3 Video Wall setup If you want to use your screen as part of a video wall you must give Multi Setup values settings in the “Option” menu. The following is an example of a 3x3 video wall:...
  • Page 22 Professional Monitor User’s Manual (P2-B) BOARD ID CURRENT X CURRENT Y TOTAL X TOTAL Y …and so on. The “Multi Crop” settings are for fine calibration of a video wall. This setting is to eliminate any black edges that you may have. In most cases you should not need to use this function.

  • Page 23: Internal Media Player

    Professional Monitor User’s Manual (P2-B) 3.4 Internal Media Player 3.4.1 Usage The monitor has a simple built in media player that runs directly from a USB stick. This allows you to display a series of images and videos in a continuous loop.

  • Page 24: Supported Media Formats

    Professional Monitor User’s Manual (P2-B) 3.4.2 Supported Media Formats Media Type Supported File Type Image JPEG Basline Video MPG, AVI, MP4 MPEG-1, MPEG-2, MPEG-4, Xvid, DivX, H264 1. This unit does NOT support WMV or FLV video file types. 2. This unit does NOT support Sony ATRAC3, DTS or Dobly HD audio file types.

  • Page 25: F.a.qs And Troubleshooting Guide

    Professional Monitor User’s Manual (P2-B) 4. F.A.Qs and Troubleshooting Guide 4.1 My Video Monitor is not displaying what is on my PC 4.1.1 Input Source Your monitor may be sourcing its display from another input. First ensure that your screen is connected to your PC (or other video source) via one of the inputs.

  • Page 26: My Display Goes Into Standby Mode

    Professional Monitor User’s Manual (P2-B) 4.2 My display goes into standby mode 4.2.1 Power saving function If your Video Monitor is powered ON without being connected to a PC via a visual signal (e.g. VGA, DVI etc.) it will automatically go into standby mode within a few minutes. If your Video Monitor is not being supplied with a video signal it will go to standby to ensure that video signal connection is connected properly.

  • Page 27: What Are My Monitor's Refresh Rates

    Professional Monitor User’s Manual (P2-B) 4.3 What are my monitor’s refresh rates? If you are running you signal from your PC then some video cards with a pixel clock over 162MHz may not display the image correctly. Normally however your monitor will display the image correctly by adjusting the factory preset timing signal automatically.

  • Page 28: How Do I Use My Monitor As Part Of A Video Wall

    Professional Monitor User’s Manual (P2-B) 4.4 How do I use my monitor as part of a video wall? If you want to use your screen as part of a video wall you must give Multi Setup values settings in the “Option” menu. The following is an example of a 3x3 video wall:...

  • Page 29: My Monitor's Image Is Unstable, Unfocused Or Swimming

    Professional Monitor User’s Manual (P2-B) BOARD ID CURRENT X CURRENT Y TOTAL X TOTAL Y …and so on. The “Multi Crop” settings are for fine calibration of a video wall. This setting is to eliminate any black edges that you may have. In most cases you should not need to use this function.
