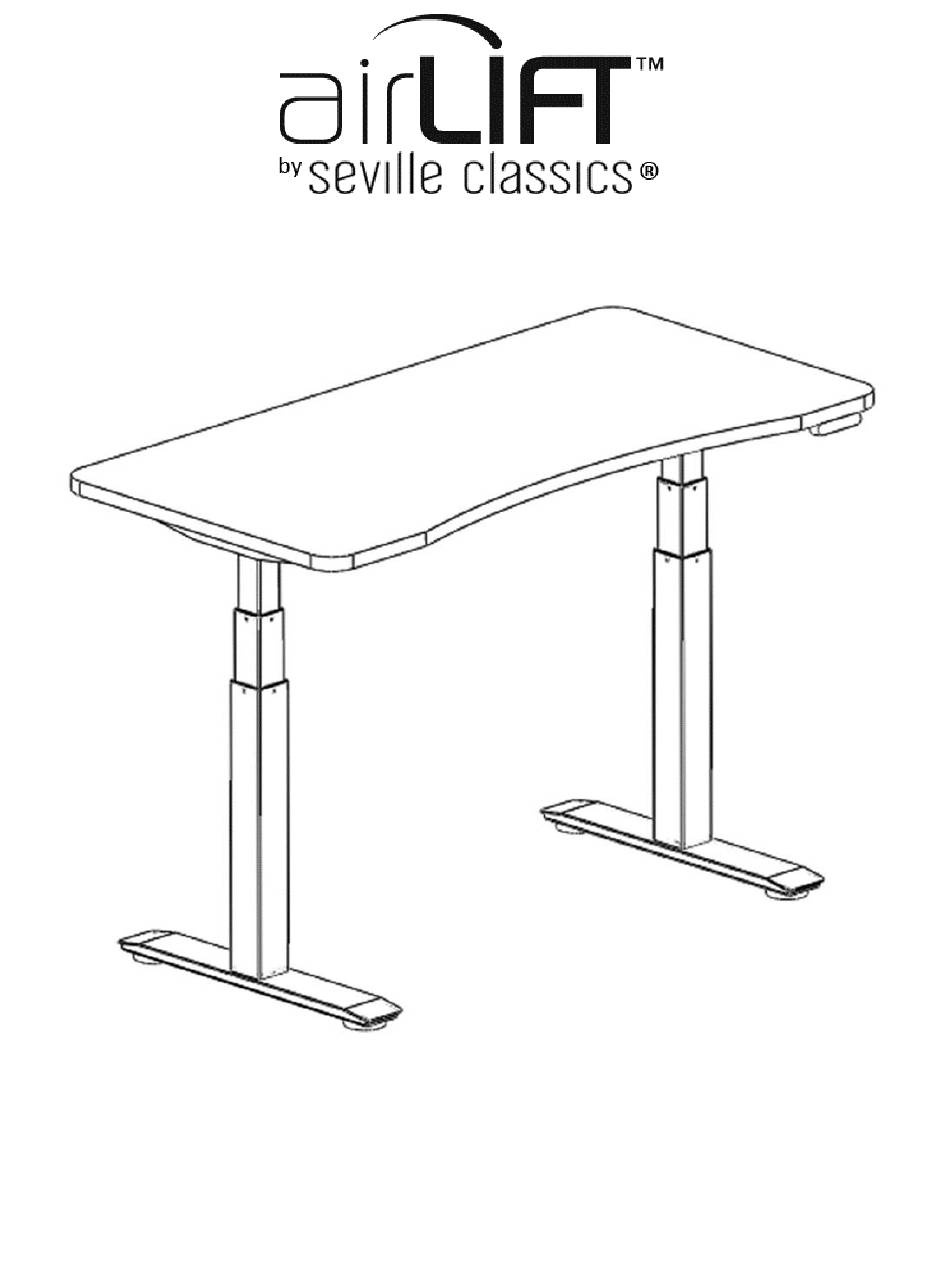

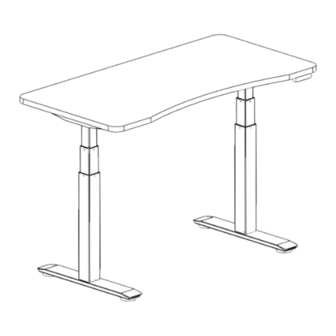

- Page 1 AIRLIFT™ S2 Electric Height-Adjustable Standing Desk Models: OFFK65824 Thank you for choosing Seville Classics! We hope that you enjoy your new sit-to-stand desk. Please read through this user guide for parts list, instructions, frequently asked questions and contact information. 09-2017...
- Page 2 AIRLIFT™ is here to help. Please read through this manual for more information regarding your AIRLIFT™ S3 Standing Desk. ® Thank you for choosing Seville Classics ! We hope you will enjoy this desk for many years to come.
-
Page 3: Table Of Contents
Unpack & Unfold…………………………………………………………………..9 Install Washers……………………………………………………………………10 Install Support Brackets.………………………………………….………….11 Unlock Beam…………………………...………………………………………….12 ® Mounting Seville Classics Top………………………………….………..13 ® Mounting Non-Seville Classics Top………………………….………..14 Installing Feet…………………………...………………………………………..15 Turn Desk Over…………………………………………………………………..16 Connect Cables…………………………………………………………………..17 INITIALIZING SYSTEM…………………………………………………………………18 CABLE MANAGEMENT………………………………………………………………..19 TROUBLESHOOTING………………………………………………………………..…20 WARRANTY INFORMATION………………………………………………………...21 SPECIFICATIONS……….………………………………………………………………..22 CUSTOMER SERVICE INFORMATION…………………………………………..22 MORE FROM SEVILLE CLASSICS………………………………………………….23... -
Page 5: Safety Instructions
Safety Instructions FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATING INSTRUCTIONS AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY Read and understand this manual before attempting to install or Assure that everyone who uses this product is informed of the contents of this manual. This is the responsibility of the Purchaser. -
Page 6: Component Diagram
Component Diagram Control Box Support Bracket Controller Support Bracket Legs Legs Foot Support Beam Foot... -
Page 7: Tools & Hardware List
Parts List A. Top G. Control Box (1) (pre-installed) B. Support Beam (1) H. Controller (1) D. Legs (2) (pre-installed) E. Support Bracket (2) F. Foot (2) Tools & Hardware List I. Allen wrench - 3mm P. Screw (10) J. Allen wrench - 5mm K. -
Page 8: Assembly Instructions
Assembly Instructions: Prepare Workspace ® Place your Seville Classics Ergo Desktop (or your own top) with the bottom-side facing up on a soft, flat, even surface. Lay down a blanket beneath the top to protect the surface. Layout all components and hardware. Examine each and make sure components are without damage. -
Page 9: Unpack & Unfold
Assembly Instructions: Unpack & Unfold STEP 1. Remov e SUPPORT BEAM from box and set on TOP w it h legs facing upward. STEP 2. Unfold legs unt il t he holes on t he legs and beam align. 90° 90°... -
Page 10: Install Washers
Assembly Instructions: Install Washers STEP 3. Insert WASHERS t hrough t he t op of t he holes on bot h SUPPORT BRACKETS (E). Washer (x3) Support Bracket Make sure to install WASHERS to every mounting point between the and t he SUPPORT BRACKETS and SUPPORT BEAM (B). -
Page 11: Install Support Brackets
Assembly Instructions: Install Support Brackets STEP 3. Slide SUPPORT BRACKET int o t he SUPPORT BEAM (B). Tighten /w 6mm Allen Wrench Tighten /w 6mm Allen Wrench Tighten /w 6mm Allen Wrench Bolt Sleeve Support Bracket M8x25 Bolt 6mm Allen Wrench Insert BOLT SLEEVES through holes on SUPPORT BEAM and LEG (D). -
Page 12: Unlock Beam
Assembly Instructions: Unlock Beam STEP 4. Unscrew t he eight M6x6 BOLTS mark ed in t he diagram be- low from SUPPORT BEAM with 3mm ALLEN WRENCH (I). 3mm Allen Wrench This unlocks the SUPPORT BEAM and allows it to be Unscrew extended, or shortened to accommodate different sizes of... -
Page 13: Mounting Seville Classics ® Top
® Seville Classics Assembly Instructions: Mounting Ergo Top STEP 5A. Wit h 2 people, pull or push t he SUPPORT BEAM to align the mounting holes on the SUPPORT BRACKETS and the SUPPORT BEAM to the pre-installed anchors on the TOP (A). -
Page 14: Mounting Non-Seville Classics ® Top
® Non-Seville Classics Assembly Instructions: Mounting Other Top ® WARNING: Seville Classics does not take responsibility for damage of customer-supplied parts or desk components. WANRING: Users MUST supply their own wood screws when in- stalling their own top. BE SURE screws ARE NOT longer than top depth. -
Page 15: Installing Feet
Assembly Instructions: Installing Feet STEP 6. At t ach FEET to the bottom of table legs with four M6x40 BOLTS and 5mm ALLEN WRENCH (J). Leveling Foot (pre-installed) 5 mm Allen Wrench M6x40 Bolts... -
Page 16: Turn Desk Over
Assembly Instructions: Turn Desk Over WARNING: TWO PEOPLE ARE NECESSARY TO TURN TABLE. DESK IS HEAVY . LIFT WITH EXTREME CAUTION. STEP 7. With the help of at least one other person, t urn t he desk ont o it's feet. Desk with top weighs approximately lbs. -
Page 17: Connect Cables
Assembly Instructions: Connecting Cables 110-120V Socket Power Controller Motor Cable Cable Cables t o t he left -side port on STEP 8. Plug t he cable from t he CONTROLLER the CONTROL BOX. (G). Then, plug the cables from the motors into the two right-side ports on the CONTROL BOX (G). -
Page 18: Initializing System
Initialization & Use Instructions DESK MUST BE INITIALIZED BEFORE YOUR FIRST USE SAVE MEMORY MEMORY 1 / 2 / 3 / 4 DISPLAY UP ARROW DOWN ARROW Initialize Press and hold the UP ARROW and DOWN ARROW simultaneously on the controller until three blinking zeros appear on the display, then release. -
Page 19: Cable Management
Cable Management Use ZIP-TIES t o affi x the cables from the CONTROLLER and CON- TROL BOX t o t he SUPPORT BEAM so that the cables wont snag or get in the way as the desk moves up and down. Fastener Stick FASTENERS to the underside of the desk top near the... -
Page 20: Troubleshooting
Troubleshooting Problem Action Desk does not go up or down. Check all connections. Make sure power cord is plugged into the The controller does not illuminate control box and a power outlet. Press any button on the controller when any button is pressed. and make sure it illuminates. -
Page 21: Warranty Information
The liability of Seville Classics under the warranty shall be limited to the amount paid by the customer for the product. Seville Classics shall not be liable for any loss of use of the product, or other incidental or consequential costs, expenses or damages incurred by customer or other user. -
Page 22: Specifications
Specifications Maximum Height: 50.6" Minimum Height: 24.6" ® Maximum Weight Capacity (with Seville Classics Ergo Top): 264 lbs. Base Dimensions: (45.27" to 63" W) x 23.63" D x (24.6" to 50.59" H) Base Weight: 76 lbs. Lifting Speed (unloaded): 1.49" per second... -
Page 23: More From Seville Classics
® More from Seville Classics Visit us at www.SevilleClassics.com for additional desk tops, bases, and other home goods. ® Seville Classics Ergo Desktop Choose the desk top that just plain w orks. Seville ® Classics Ergo Desktops pair with our AIRLIFT™...
