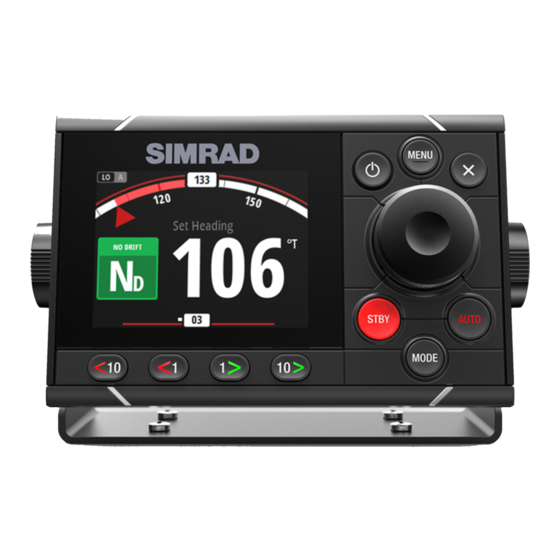

Simrad AP48 Quick Manual

Power key
• Press to show the Display setup dialog. Repeat short presses to toggle preset
1 light levels
• Press and hold to put the autopilot system to Sleep mode. Repress the key to
activate the system
MENU key
2
Press to show the Settings menu.
X key
3
Press to return to previous menu level or to exit a dialog.
Rotary knob
Menu and dialog operation:
• Turn to move up and down in menus and dialogs
4
• Turn to adjust a value
• Press to select a menu option and to enter the next menu level
For mode operation refer to the autopilot modes table.
< 10 , < 1 and 1 >, 10 > (Port and starboard keys)
Press to change the set heading/set course/set wind angle 1° or 10° to port or
5-8
starboard.
For mode operation refer to the autopilot modes table.
STBY key
9
Press to activate Standby mode.
MODE key
10
Press to show the Mode list.
AUTO key
11
Press to activate Auto mode.
988-11626-001 EN 1/4
AP48
Quick Guide
5 6 7
1 2 3
8 9 10 11
4
AP48 | Quick Guide - EN
EN
|
1
